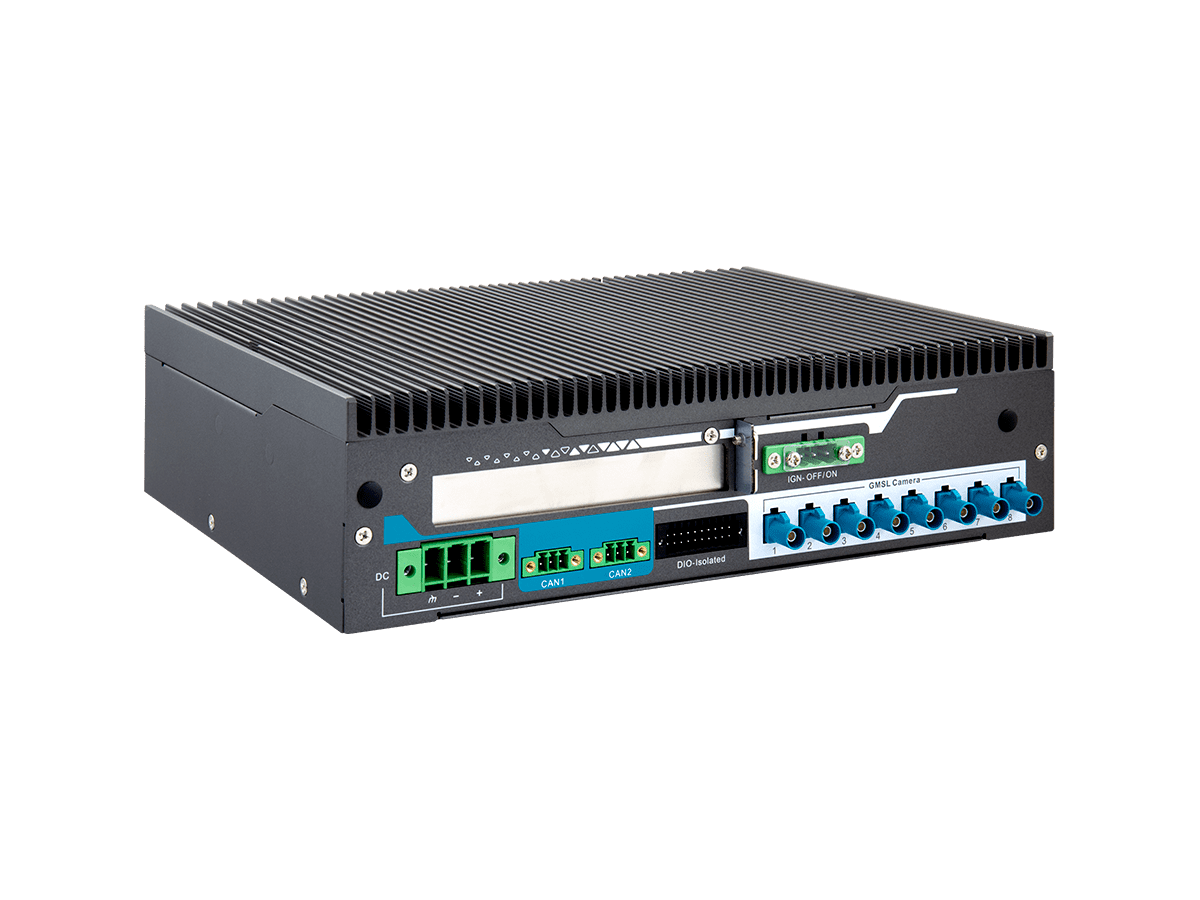

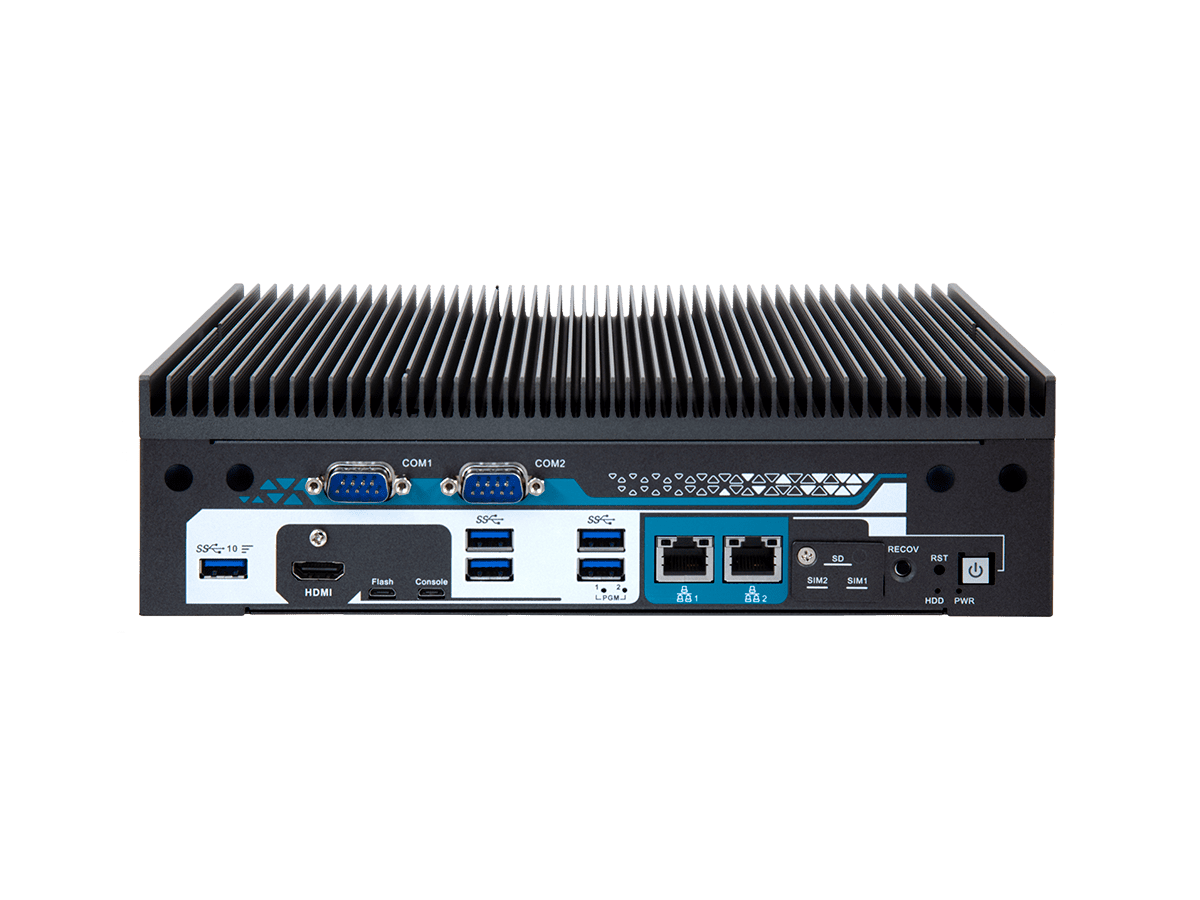

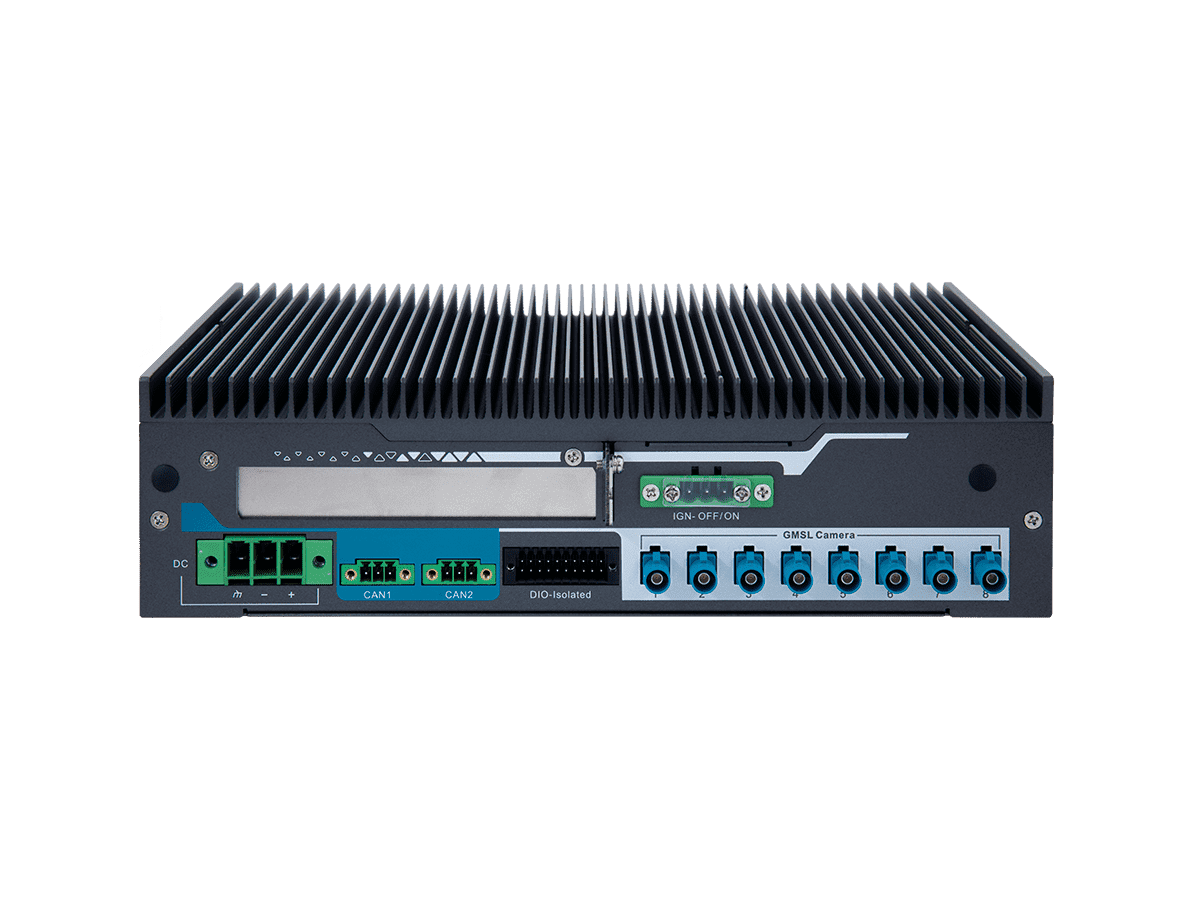

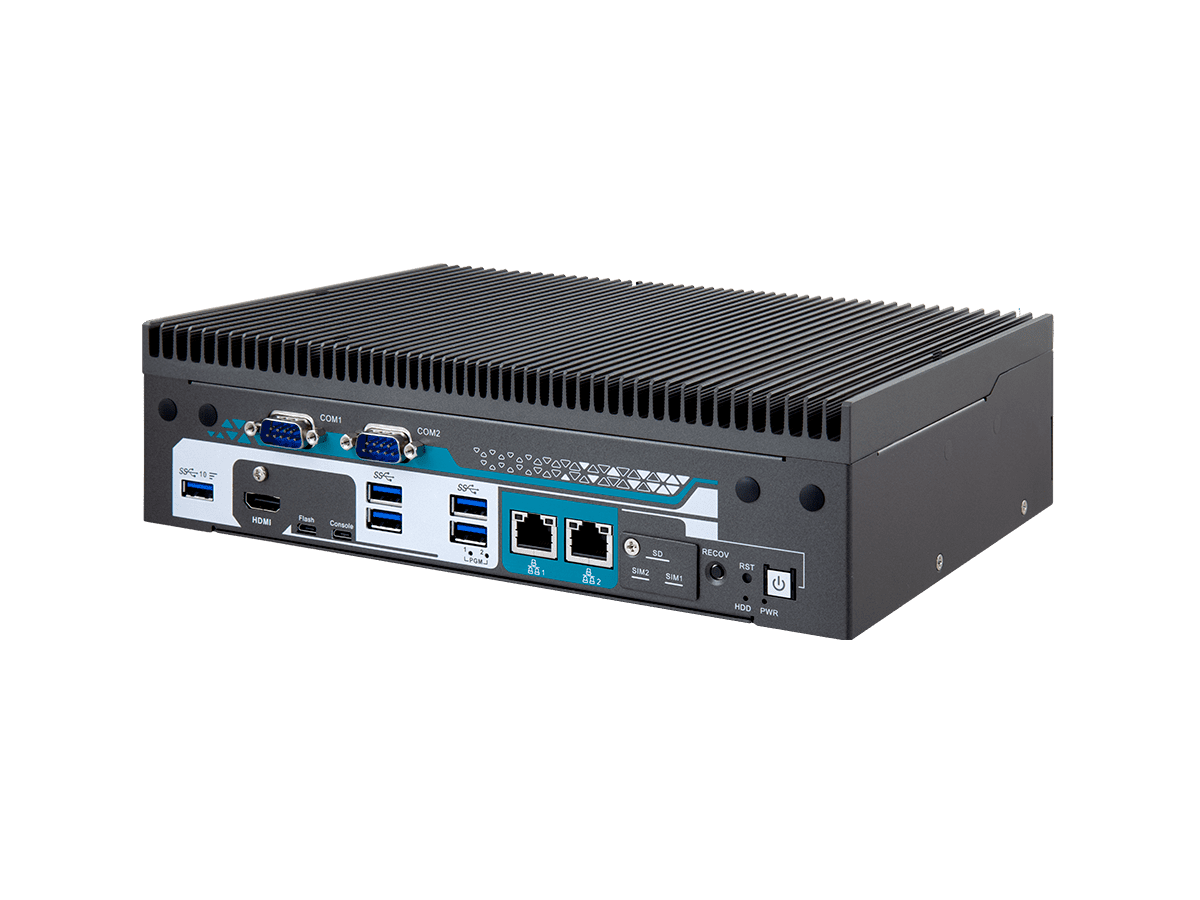

ARBOR AEC-6100
Box PC with NVIDIA® Jetson AGX Orin™, Supporting GMSL Camera for Embedded AI Applications
System |
|
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
|---|---|
| Memory | 32GB LPDDR5 DRAM |
| GPU | 1792-core NVIDIA Ampere™ architecture GPU with 56 Tensor Cores |
| DL Accelerator | 2 x NVDLA Engines |
| Storage | 2 x M.2 Key M Socket (2280, PCIe x4) 1 x eMMC 5.1, 64GB 1 x Micro SD (External) |
| LAN Chipset | 2 x 10/100/1000 Base-T Ethernet GigE LAN, RJ45 Connector |
I/O Interface |
|
| Serial Port | 2 x RS-232 / 422 / 485 ports |
| CAN Bus | 2 x Isolated CAN Bus support CAN FD |
| USB Port | 1 x USB 3.2 Gen 2, 4 x USB 3.1 (5Gbps) |
| Micro USB | 1 x Micro USB console debug port, 1 x Micro USB OS flash port |
| Digital I/O Port | 16 Isolated DIO (8 DI, 8 DO) |
| LAN | 2 x 10/100/1000 Base-T Ethernet GigE LAN |
| SIM | 2 x SIM Card Sockets |
| Expansion Bus | 1 x PCIe Gen4 x8 Slot, 1 x M.2 Key B Socket (3042/3052, USB3), M.2 Key E Socket (2230, PCIe/USB) |
| Video Port | 1 x HDMI 2.1, up to 8K 60Hz |
| Video Encode | 1x 4K @60, 3x 4K @30, 6x 1080p @60, 12x 1080p @30 (HEVC) |
| Video Decode | 1x 8K @30, 2x 4K @60, 4x 4K @30, 9x 1080p @60, 18x 1080p @30 (HEVC) |
| GMSL | 8 Fakra-Z connectors for GMSL 1/2 automotive cameras |
OS Support |
|
| System | Linux / NVIDIA JetPack SDK |
Environmental |
|
| Operating Temp. | -25 ~ 70°C (-13 ~158°F) (TDP:30W) -25 ~ 55°C (-13 ~131°F) (TDP:40/50W) |
|---|---|
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 5 ~ 95% @ 60°C (non-condensing) |
| Relative Humidity | 95% @ 70°C |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Procedure I, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.7, Procedure I |
| EMC | CE, FCC, EN50155 (TBA), EN50121-3-2 (TBA) |
Power Requirement |
|
| Power Input | DC 9V ~ 48V |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16-mode Software Ignition Control |
| Power Ignition | 3-pin Terminal Block |
Mechanical |
|
| LED | Power, SSD, 2 User Programmable |
| Button | 1 x Power Button, 1 x Force Recovery Button, 1 x Reset Button |
| Antenna | 6 Antenna hole for WiFi/4G/5G/LTE/GPRS/UMTS |
| Mounting | Wallmount by mounting bracket, DIN Rail and VESA Mount (Optional) |
| Weight | 3.8 kg |
| Dimensions (W x D x H) |
260 mm x 182 mm x 69 mm |
ARBOR AEC-6100 tartozékok
Opcionális tartozékok
160W AC-DC WT Adaptor
160W, 24V, 85V AC to 264V AC power adapter with 3-pin terminal block, wide temperature -30°C to 70°C
180W AC-DC Adaptor
180W, 24V, 90V AC to 264V AC power adapter with 3-pin terminal blockC
280W AC-DC WT Adaptor
280W, 24V, 85V AC to 264V AC power adapter with 3-pin terminal block, wide temperature -30°C to 70°C
VESA Mount
VESA mounting kit
DIN-RAIL
Din-rail and VESA mounting kit
GMSL Camera Kit
GMSL camera with Fakra-Z connector
M.2 Storage Module
M.2 Key M/Key B PCIe storage module
5G Module
5G module with antenna
4G Module
4G/GPS module with antenna
Wi-Fi & Bluetooth
Wi-Fi & Bluetooth module with antenna
