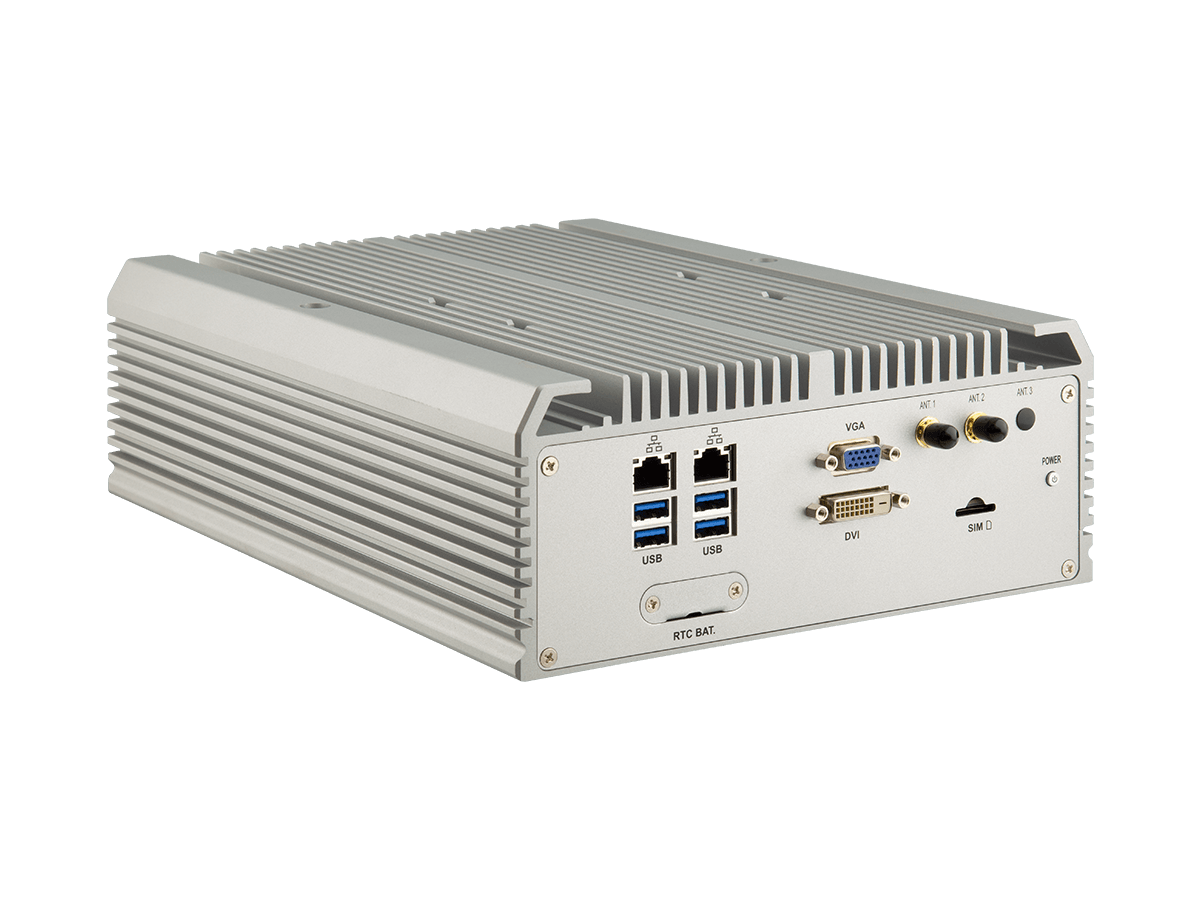

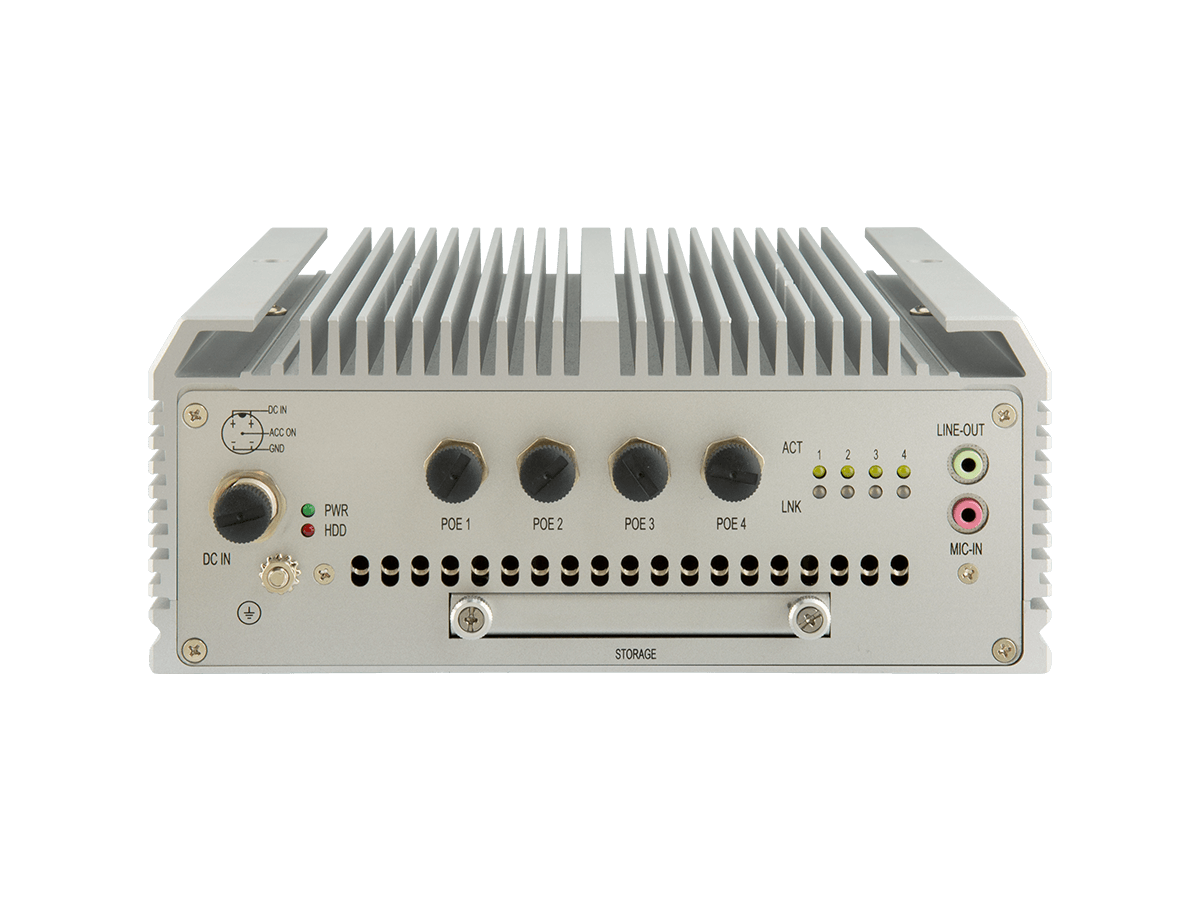

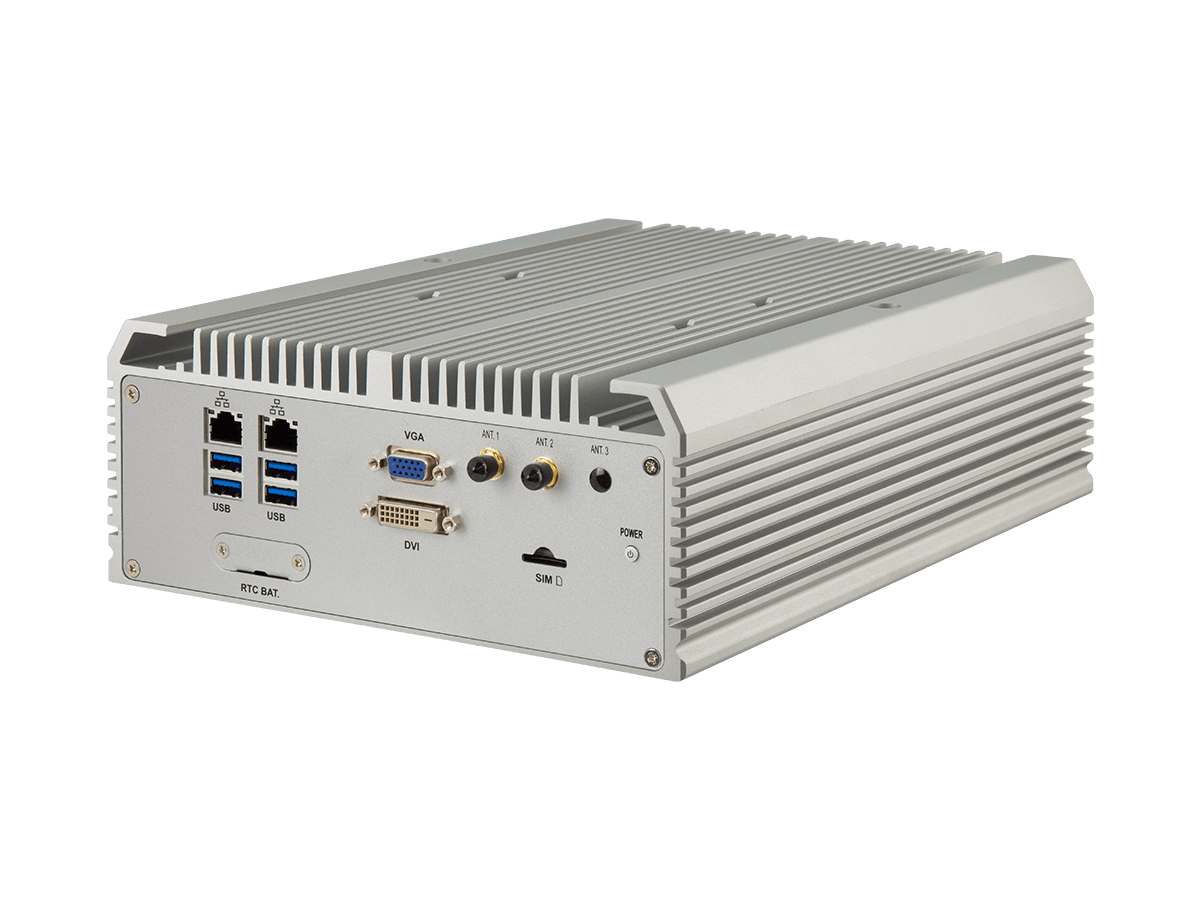

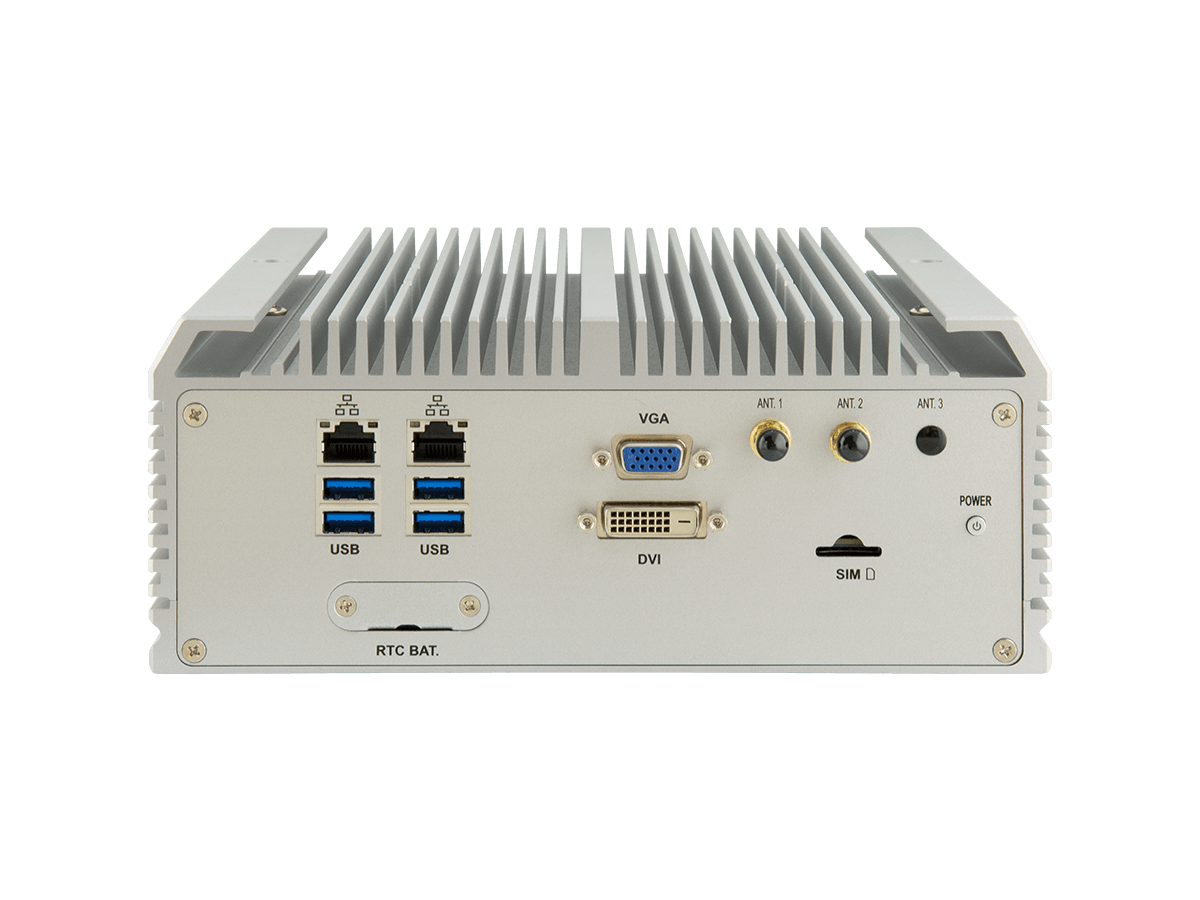

ARBOR ARES-1970E-M12-NVR

ARBOR ARES-1970E-M12-NVR System

CPU	Intel^® Xeon^® E3/ 6th & 7th generation Core™ i7/ i5/ i3 processor in LGA1151 socket
Memory	2 x 260-pin DDR4 SO-DIMM sockets
Chipset	Intel^® C236
Graphics	Intel^® HD Graphics
ATA	3 x Serial ATA ports with 600MB/s HDD transfer rate
LAN Chipset	1 x Intel^® i219LM GbE controller w/ iAMT 11.0 (except i3) 1 x Intel^® WGI211AT GbE controller 4 x Intel^® WGI211AT GbE controllers for PoE
Watchdog Timer	1~255 levels reset

ARBOR ARES-1970E-M12-NVR I/O Interface

USB Port	4 x USB 3.0 ports, front side
LAN	2 x RJ-45 ports for GbE, front side 4 x M12-male 8P connector, IP67 for PoE, A-coded, rear side (with total 30W power budget)
Video Port	1 x DB-15 female connector for Analog RGB, Max. resolution: 1920 x 1080 @ 60Hz 1 x DVI-D female connector for digital video output, Max. resolution: 1920 x 1080 @ 60Hz
Expansion Bus	1 x mini-PCI Express slots interconnected with SIM card sockets for optional Wi-Fi/ BT/ 3G/ LTE/ GPS (PCIex1+USB2.0, full size) 1 x mini-PCI Express slot for optional Wi-Fi/ BT/ GPS (PCIe x1 + USB 2.0, half size)
Antenna	3 x SMA-female connectors’ holes for external antennas
Audio	Mic-in/ Line-out

Environmental

Operating Temp.	-40 ~ 60°C, ambient w/ air flow, w/ 35W TDP Core™ i CPU -40 ~ 70°C, ambient w/ air flow, w/ Xeon™ E3-1268L-V5 (CPU throttling may be happened while it run full loaded)
Storage Temp.	-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity	10 ~ 95% @ 70°C (non-condensing)
Vibration	IEC61373 Category 1 Class B
Shock	IEC61373 Category 1 Class B

Qualification

Certification	EN-50155 certified. test with AC adapter

OS Support

System	Windows 10 IOT (For 6th / 7th Gen Intel CPU) Windows 7 / Windows 8.1 (For 6th Gen Intel CPU) Linux (Kernal 4.x )

ARBOR ARES-1970E-M12-NVR Storage

Type	1 x M.2 M-Key socket for storage module (SATA signal only) 1 x external 2.5” SATA3 6Gb/s Drive Bay 1 x internal 2.5” SATA3 6Gb/s Drive Bay

ARBOR ARES-1970E-M12-NVR Power Requirement

Power Input	DC 9 ~ 36V input (w/ 5-pin M12-male A-code connector)
Power Consumption	Typ. 90W (w/o I/O card)

ARBOR ARES-1970E-M12-NVR Mechanical

Construction	Aluminum Alloy
Mounting	Support wall-mount
Weight	6.4kg (14.1 Ib)
Dimensions (W x D x H)	225 x 292 x 90 mm

Tartozékok

Opcionális konfiguráció (CTOS* készlet)

64/128/256 GB-os SSD

2,5 hüvelykes tömegű 64/128/256 GB-os SATA III SSD

Xeon™ E3-1268L-V5

Intel ^® 6. generációs Xeon™ E3-1268L processzor, L2/8M, 2.4G

Core™ i7-7700T

Intel ^® 7. generációs Core i7-7700T processzor, L2/8M, 2.9G

Core™ i5-7500T

Intel ^® 7. generációs Core i5-7500T processzor, L2/6M, 2.7G

Core™ i3-7101TE

Intel ^® 7. generációs Core i3-7101TE processzor, L2/3M, 3.4G

WMK-7000

fali tartókészlet FPC-7XXX sorozathoz

MK-4I-4G / 8G / 16G

Ipari minőségű DDR4-2400 4GB / 8GB / 16GB SDRAM DIMM készlet

WIFI-AT4550

Atheros QCNFA324 Wi-Fi modul 2 x 30 cm belső kábelezéssel

LTE-1450

LTE Quectel EC25-E cat 4 Mini-PCIe vezeték nélküli készlet (EMEA) GPS-szel

ANT-D11

1 x Wi-Fi kétsávos 2.4G/5G antenna

ANT-H11

2dBi HSUPA antennakészlet

ANT-G11

1 x 3000 mm-es 27 dB-es SMA GPS-antenna
