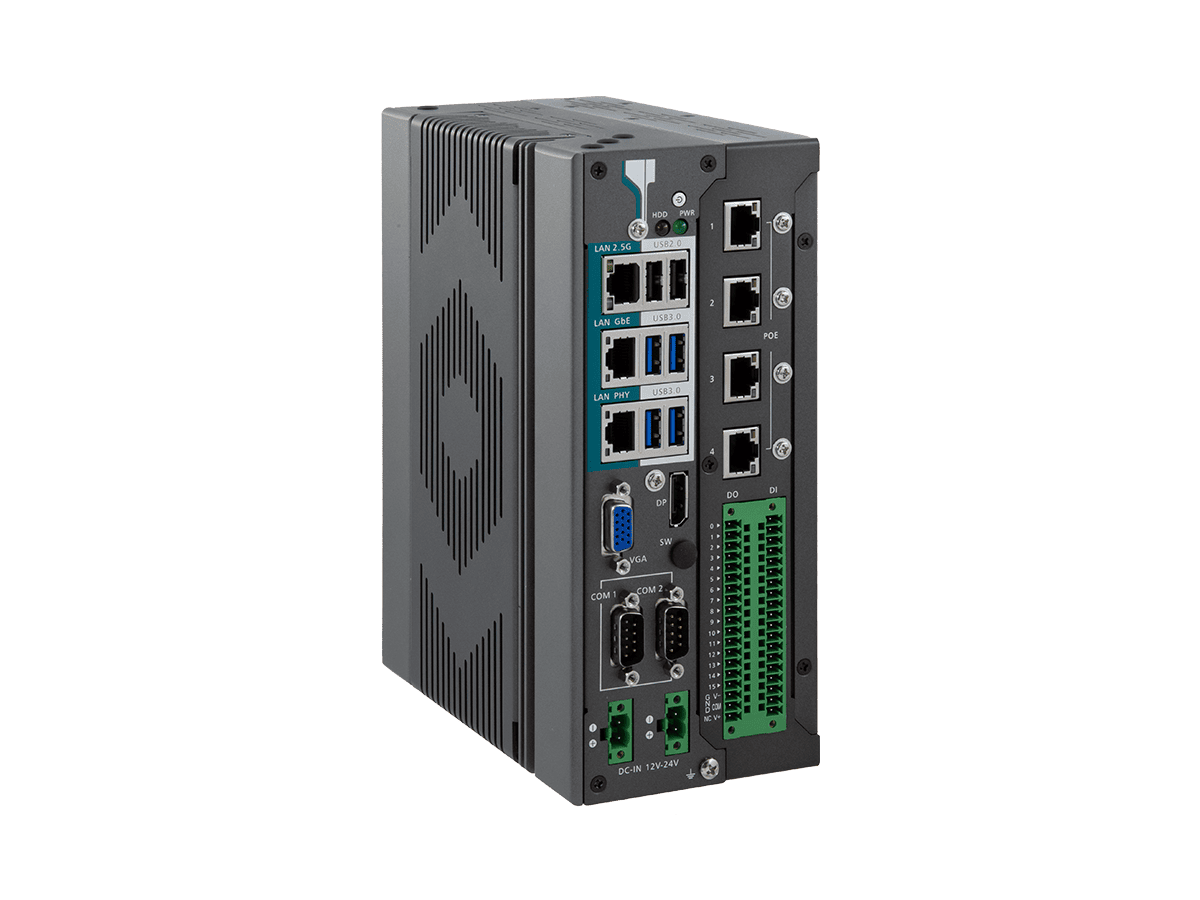

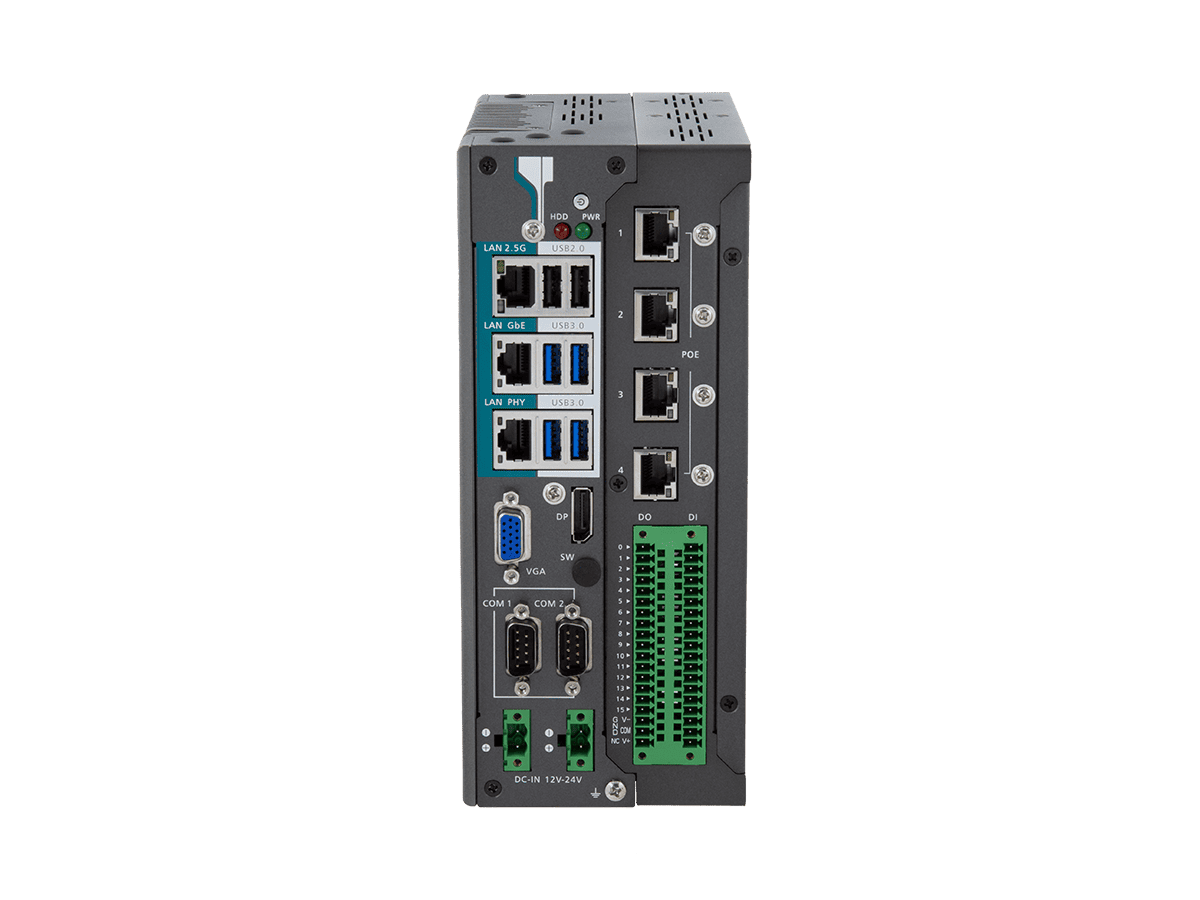

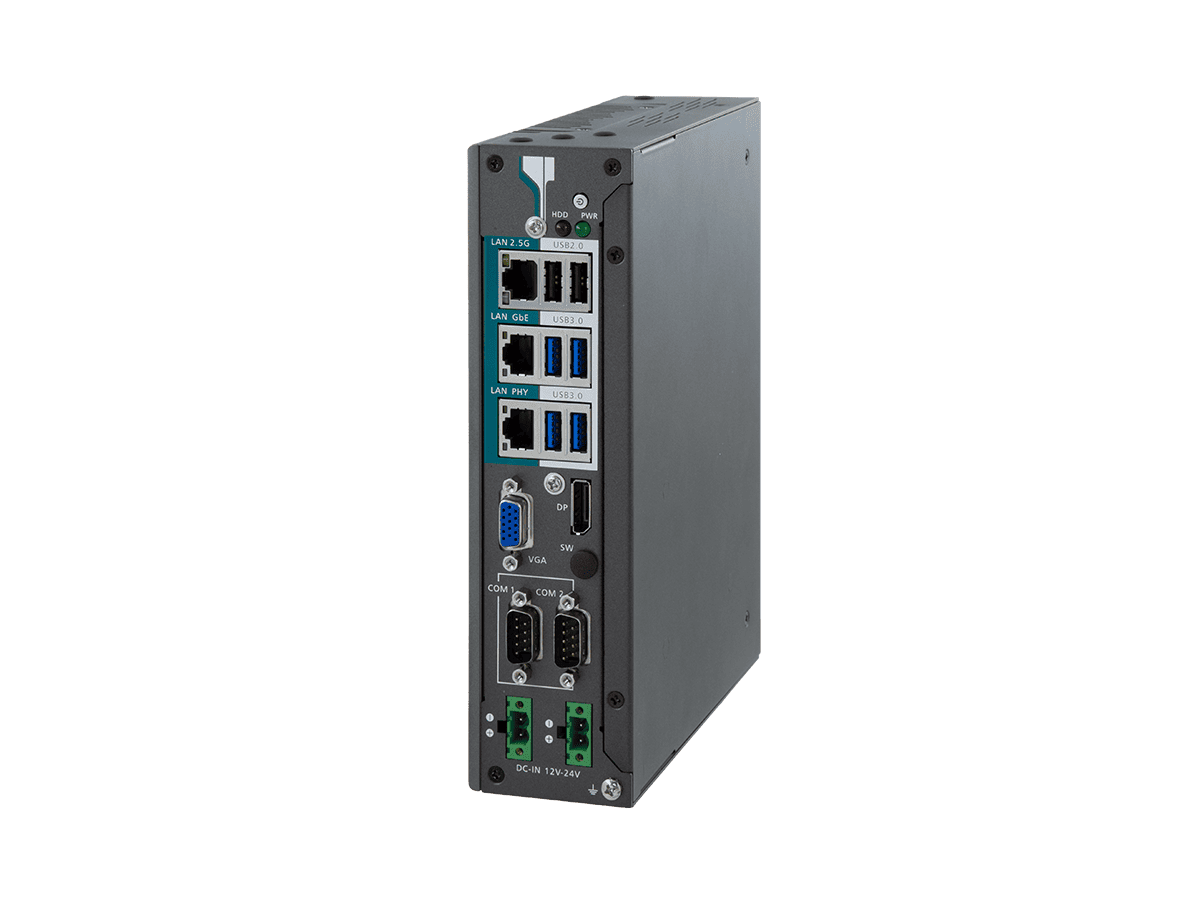

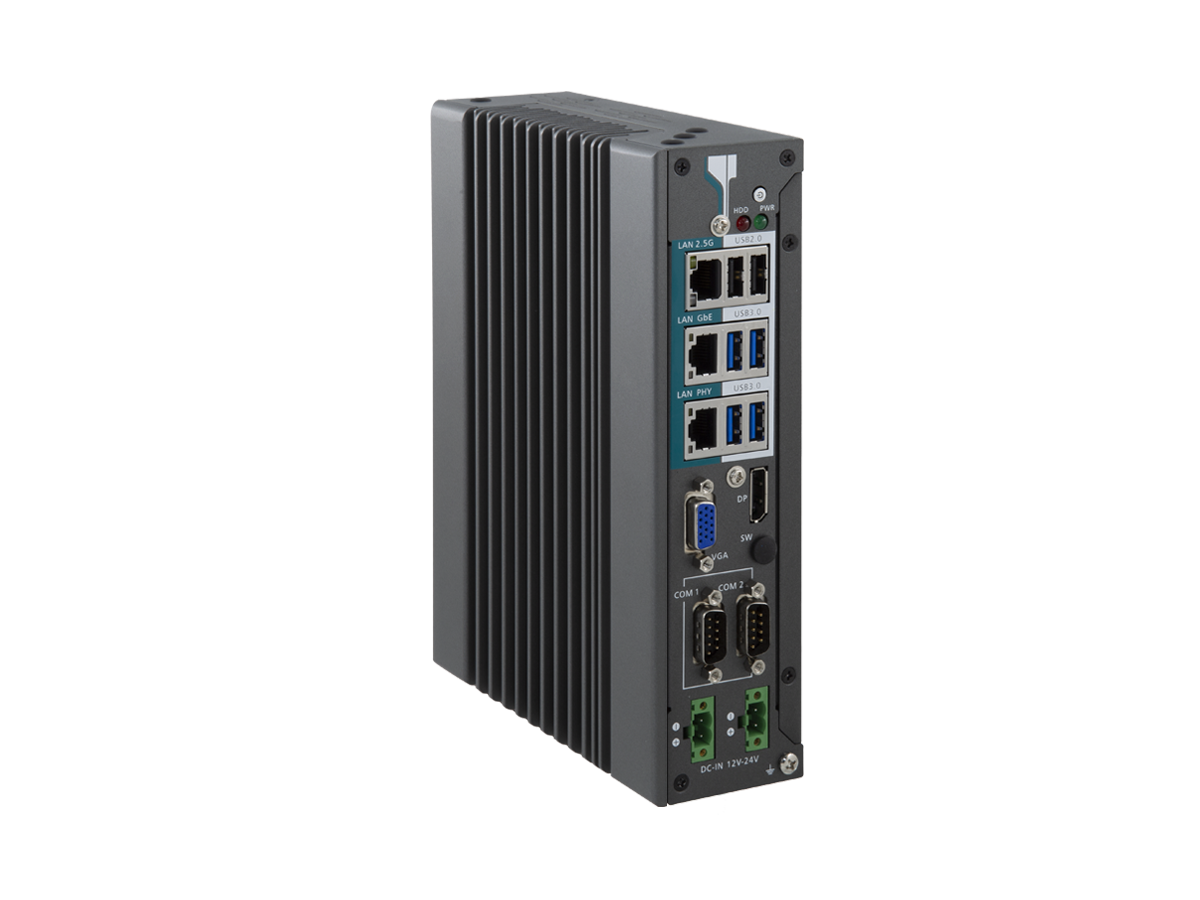

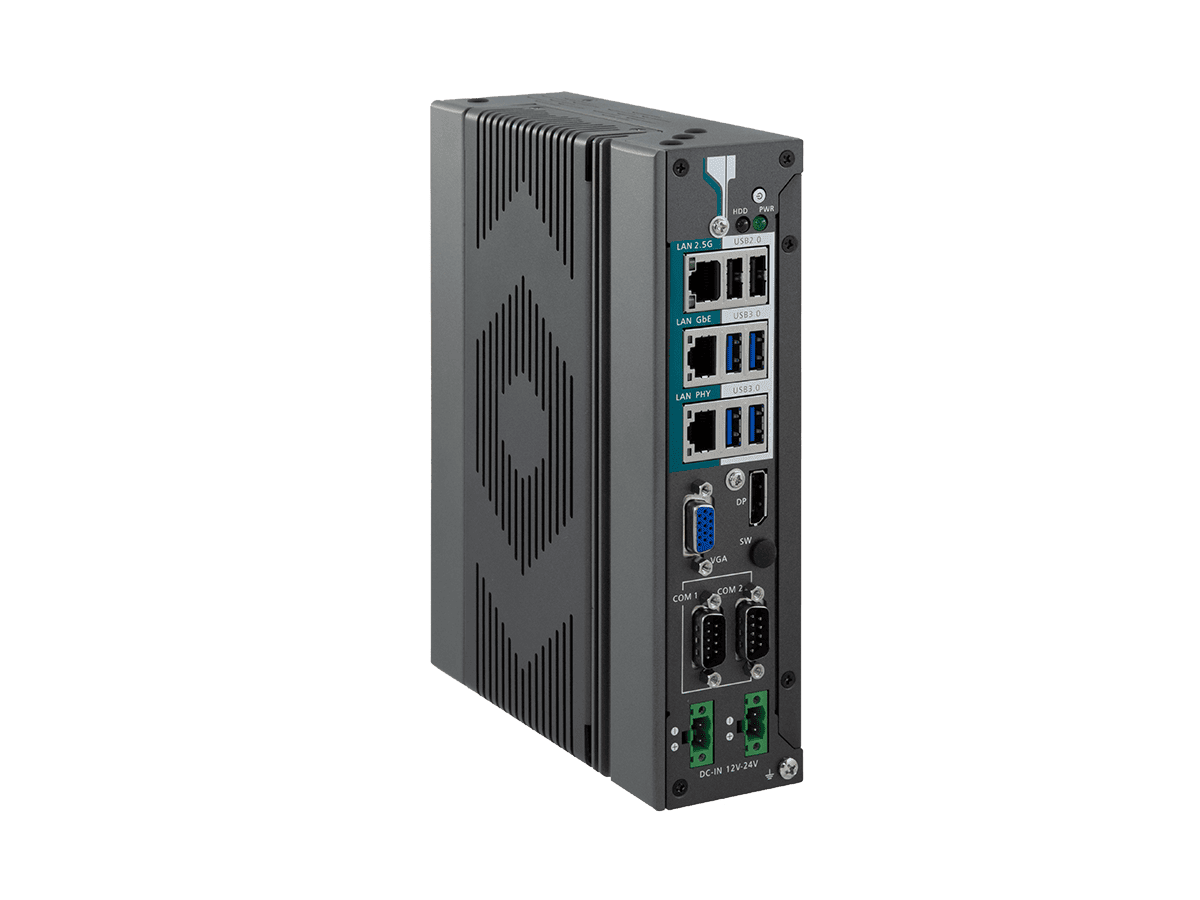

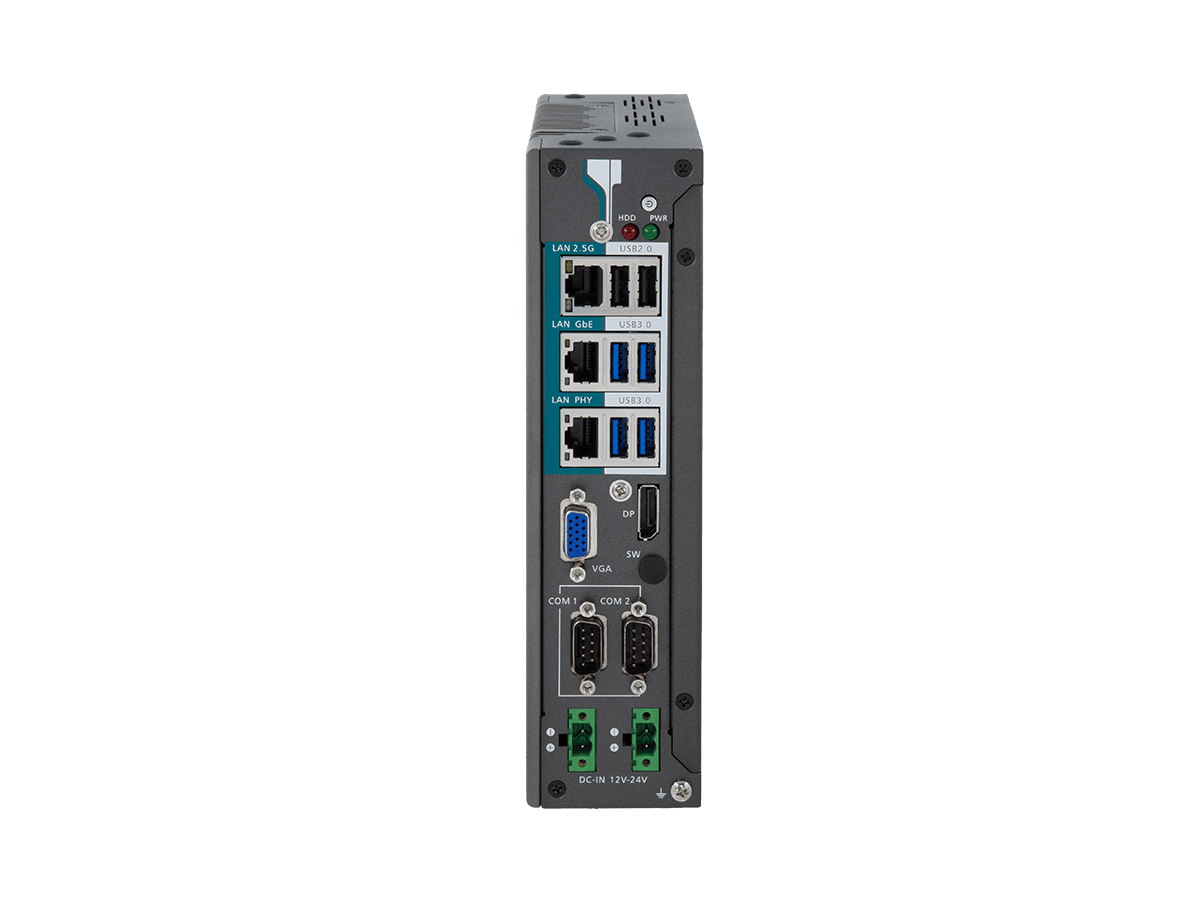

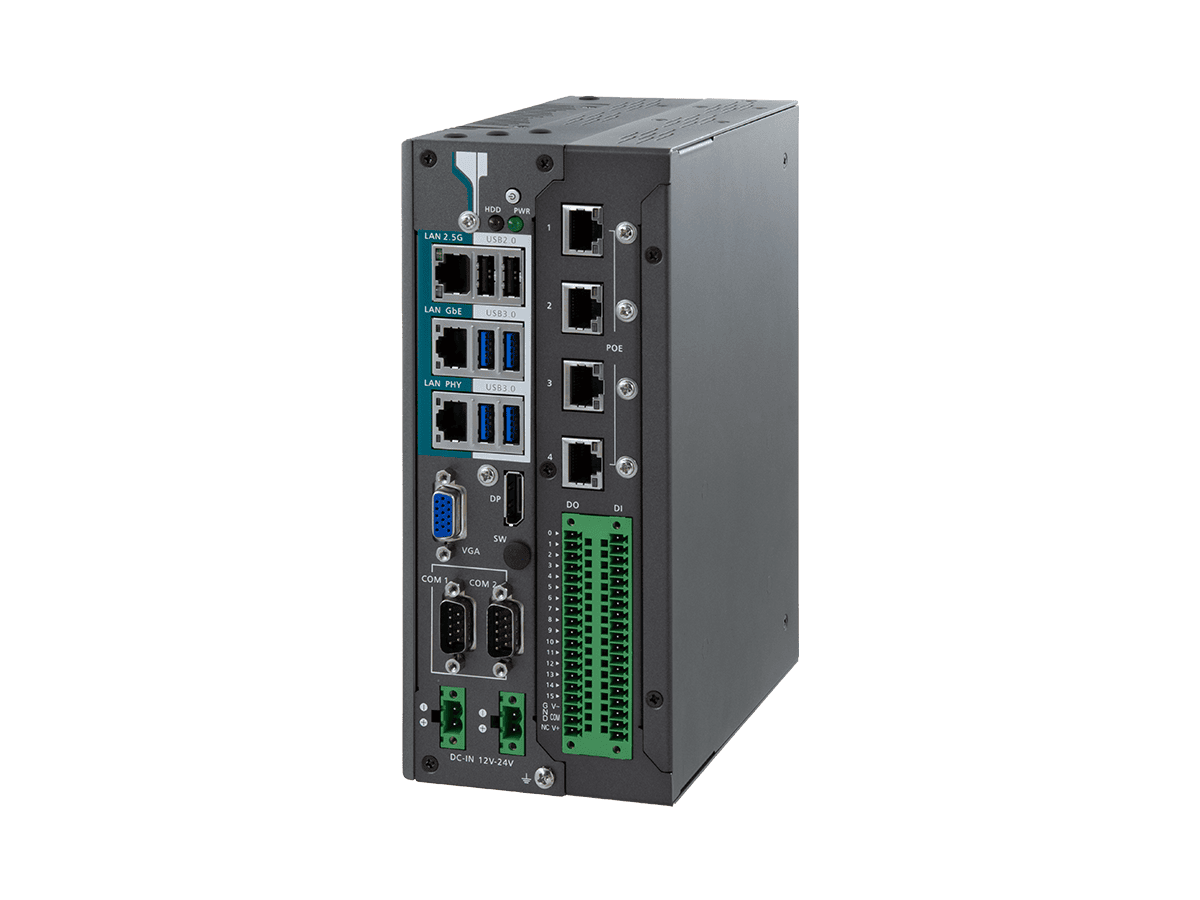

ARBOR ARES-1983H
Machine Vision Controller with Intel® 14th / 13th / 12th Gen. Core™ i9/i7/i5/i3 Processor
Az ARBOR Edge Computing megoldásai a legmegfelelőbb eszközök a gyári biztonsági megoldásokhoz. Fejlett PoE portjaival az ARES-1983H sorozat támogatja a prediktív elemzést és a valós idejű monitorozást, amelyek elengedhetetlenek a hatékony megelőző karbantartási programok végrehajtásához. Ez a rendkívül fejlett technológia az Ön speciális igényeit célozza meg, kivételes felhasználói élményt nyújtva.
ARBOR ARES-1983H System
| CPU | Intel® 14th/13th/12th Core™ i9/i7/i5/i3
processor in LGA1700 Socket (Max.65W) Intel® 14th/13th/12th Core™ processors in LGA1700 Socket (Max. 35W) (For ARES-1983H-FL) |
|---|---|
| Memory | 1 x 260-pin DDR5 SO-DIMM sockets, supporting
5600MHz SDRAM up to 32GB ARES-1983H-FL: 1 x 262-pin DDR5 SO-DIMM sockets, supporting 4800/5600MHz SDRAM up to 32GB |
| Chipset | Intel® H610E |
| Graphics | Integrated Intel® UHD Graphics 730/770 |
| LAN Chipset | 1 x Intel® i226LM 1 x Intel® i219LM 5 x Intel® i210AT (4 x for GbE PoE) 1 x Intel® i210ATc |
| Watchdog Timer | 1~255 levels reset |
| TPM | dTPM 2.0 |
ARBOR ARES-1983H I/O Interface
| Serial Port | 1 x RS232(Default)/422/485 1 x RS232 |
|---|---|
| USB Port | 2 x USB-A 3.2 Gen2 (10Gbps) 2 x USB-A 3.2 Gen1 (5Gbps) 2 x USB-A 2.0 2 x Internal USB-A 2.0 |
| LAN | 1 x 2.5GbE port 2 x GbE ports 4 x GbE PoE ports(IEEE802.3af) (For ARES-1983H-MV) |
| Video Port | 1 x DisplayPort 1.4 (DP++), up to 4096x2304@60Hz 1 x VGA, up to 1920x1200@60Hz |
| Digital I/O | 16 x DI & 16 x DO w/1.5kV isolation (For ARES-1983H-MV) |
| Expansion Bus | 1 x M.2 E-key 2230 slot (PCIe 3.0 x1 + USB2.0 + CNVi) 1 x mPCIe (PCIe 3.0 x1 + USB 2.0, Full size) w/ 1 x nano SIM card slot |
| Others | 4 x Antenna holes(For ARES-1983H-FL) |
ARBOR ARES-1983H Environmental
| Operating Temp. | w/ 35W TDP CPU:
-20 ~ 60 °C, ambient w/ air flow w/ 65W TDP CPU: -20 ~ 50°C, ambient w/ air flow |
|---|---|
| Storage Temp. | -30 ~ 70°C (-22 ~ 158°F) |
| Operating Humidity | 10 ~ 95% @ 60°C (non-condensing) |
| Vibration | 5~500Hz 3 Grms X,Y,Z axis w/SSD, according to IEC 68-2-64 |
| Shock &aamp; Crash | 10G peak acceleration (11 m sec. duration), operation 30G peak acceleration (11 m sec. duration), nonoperation According to IEC 68-2-27 |
ARBOR ARES-1983H Qualification
| Certification | CE, FCC Class A |
|---|
OS Support
| System | Windows 10 / Windows 11 / Ubuntu |
|---|
Storage
| Type | 1 x M.2 M-key 2242/2280 slot (PCIe x4 + SATA) 1 x M.2 M-key 2242/2280 slot (PCIe 4.0 x4 + SATA)(For ARES-1983H-FL) 1 x 2.5” HDD/SDD internal drive bay (For ARES-1983H-MV) |
|---|
ARBOR ARES-1983H Power Requirement
| Power Input | DC 12~24V via 2-pin terminal block |
|---|---|
| Max. Power Consumption | ARES-1983H (w/ 65W TDP CPU): 110W ARES-1983H-MV(w/ 65W TDP CPU): 170W ARES-1983H-FL: 80W |
ARBOR ARES-1983H Mechanical
| Construction | Metal + Aluminum |
|---|---|
| Mounting | Wall-mount (standard) DIN-rail (optional w/ CTOS bracket) |
| Weight | ARES-1983H: 2.5kg ARES-1983H-MV: 3.1kg ARES-1983H-FL: 2.5kg |
| Dimensions (W x D x H) | ARES-1983H: 55 x 164 x 210mm ARES-1983H-MV: 90 x 164 x 210mm ARES-1983H-FL: 55 x 164 x 210mm |
