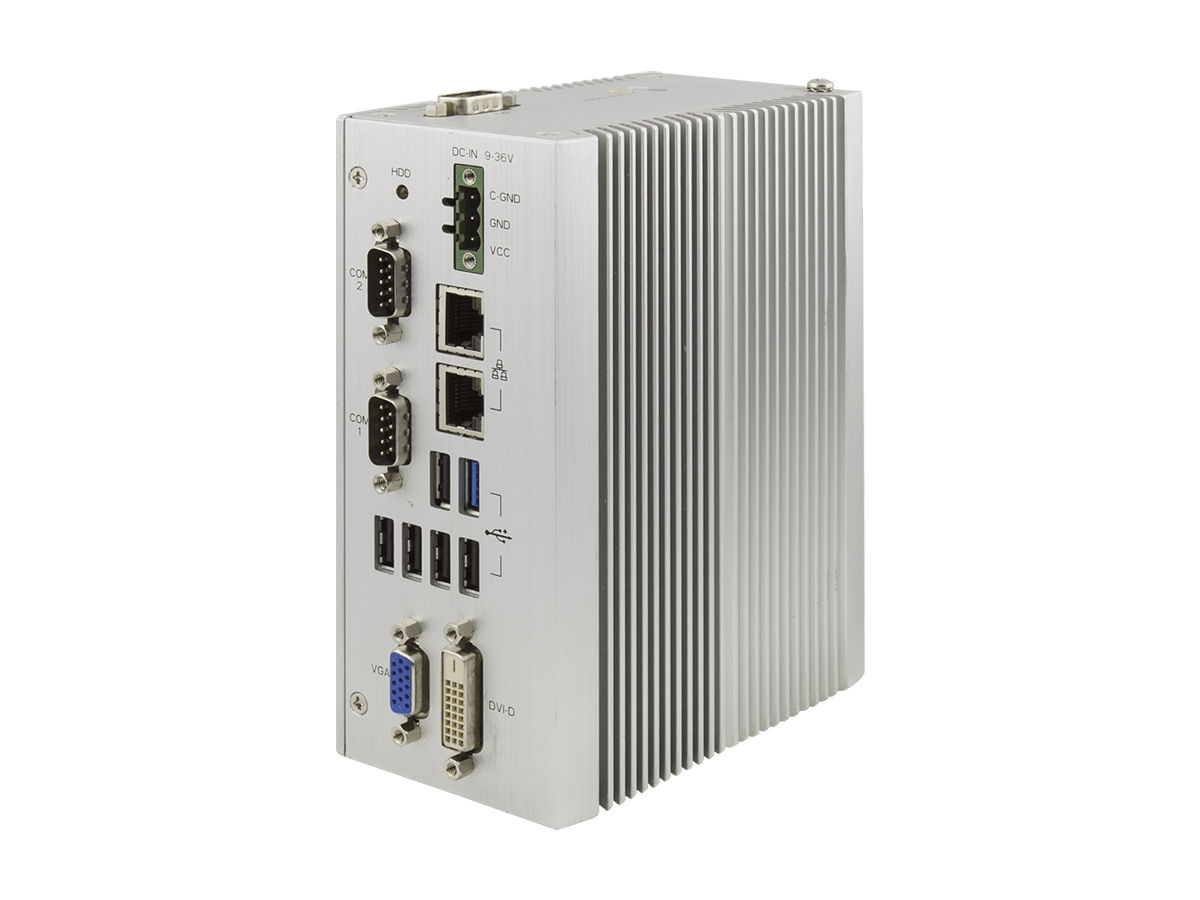

ARBOR ARES-530WT
Fanless Embedded Controller with Intel® E3845 /J1900 ProcessorSystem
| CPU | Soldered onboard Intel® Celeron® J1900 2GHz Processor or Intel® Atom™ E3845 1.91GHz processor |
|---|---|
| Memory | 1 x 204-pin DDR3L SO-DIMM socket, supporting 1333MHz SDRAM: Celeron® J1900 : up to 8GB / 4G DDR3L memory installed Atom™ E3845 : up to 8GB / 4G DDR3L memory installed |
| Graphics | Integrated Intel® HD Graphics |
| ATA | 2 x Serial ATA port with 300MB/s HDD transfer rate |
| LAN Chipset | 2 x Intel® i210AT PCIe controller |
| Watchdog Timer | 1~255 levels reset |

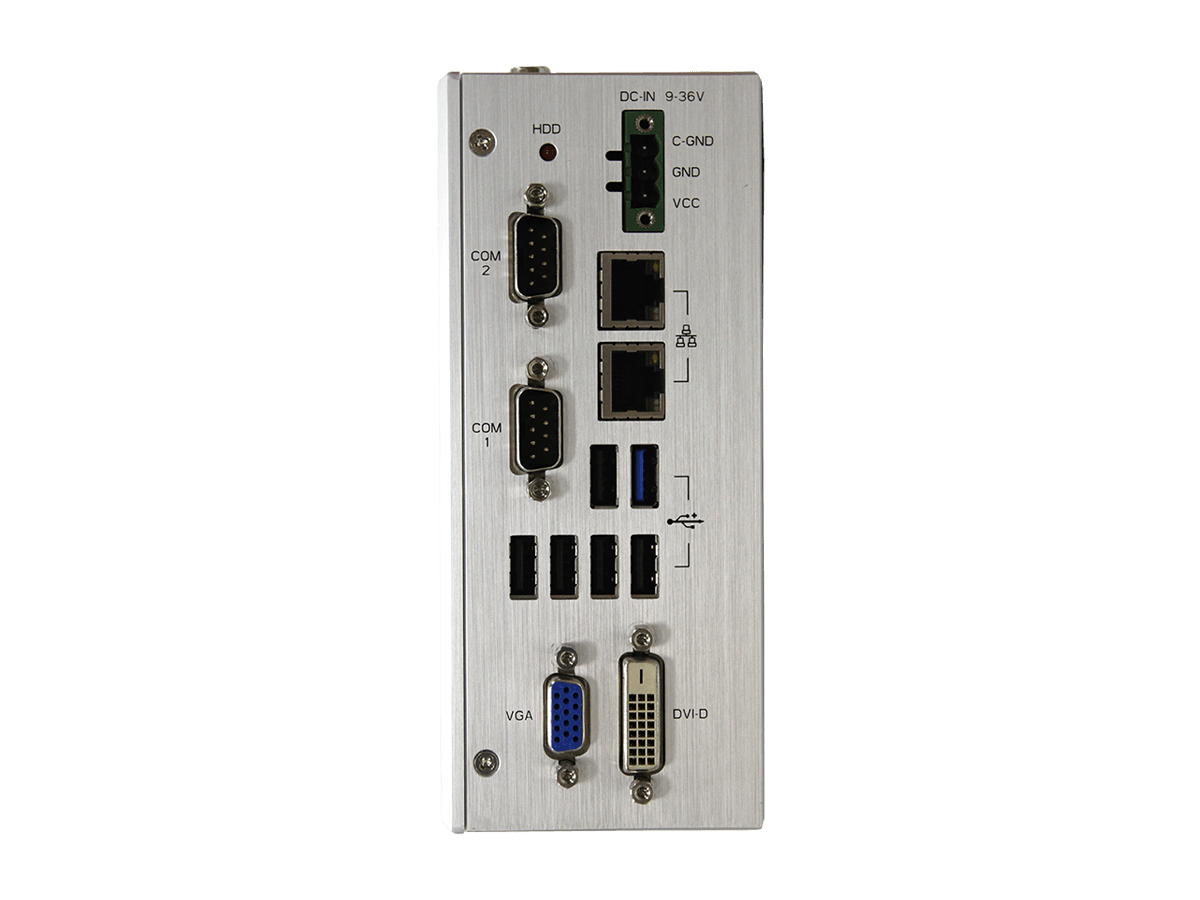

I/O Interface
| USB Port | 5 x USB2.0 type A connectors 1 x USB3.0 type A connector |
|---|---|
| Serial Port | 1 x DB9 male connectors for RS-232/422, w/ 3KV isolated protection 1 x DB9 male connectors for RS-422/485, w/ 3KV isolated protection |
| LAN Port | 2 x RJ-45 ports for GbE |
| Video Port | 1 x VGA connector 1 x DVI-D connector |
| Expansion Bus | 1 x Half size Mini-Card socket (w/o USB signal) 2 x mSATA socket for SSD |

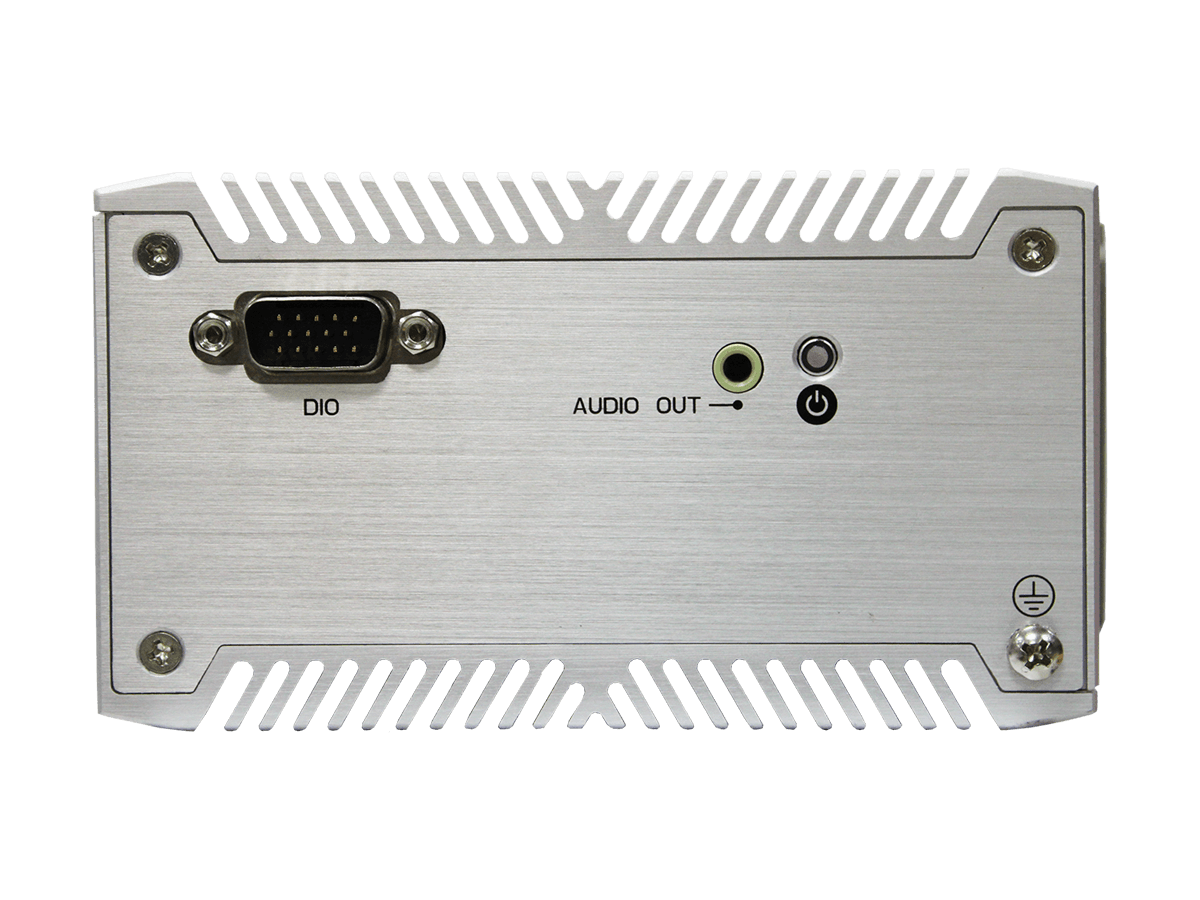

| Digital I/O | 1 x DB15 male connector For 8 bit DIO (4in/4out), w/ 3.75KV isolated protection |
| Audio | Line-out |
| Button | 1 x reset button |
Environmental
| Operating Temp. | ARES-530WT-J1900: -20 ~ 70°C (-4 ~ 158ºF), ambient with air flow ARES-530WT-E3845: -40 ~ 85°C (-40 ~ 185ºF), ambient with air flow |
|---|---|
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 10 ~ 95% @ 70°C (non-condensing) |
| Vibration | 5~500Hz 3G rms X,Y,Z axis w/SSD, according to IEC 68-2-64 |
| Shock | Operating 40G (11 ms) Non-operation 60G with SSD |
OS Support
| System | Windows 7 / Windows 8.1 / Windows 10 |
|---|
Storage
| Type | 2 x mSATA socket |
|---|
Qualification
| Certification | CE, FCC Class A, UL508 (J1900 SKU) |
|---|
Power Requirement
| Power Input | DC 9~36V input (w/ 3-pin DC input terminal block) |
|---|---|
| Power Consumption | 13.5W |
Mechanical
| Construction | Aluminum alloy |
|---|---|
| Mounting | DIN Rail quick release mounting kit |
| Weight | 1650g |
| Dimensions (W x H x D) | 70 x 125 x 160 mm |
ARBOR ARES-530WT tartozékok
Standard tartozékok
DRK-5300
Al6063, DIN Rail 35 mm
Opcionális konfiguráció (*CTOS készlet)
32GB SSD
mSATA MLC 32GB
PAC-P060W-02
12V/5A 60W AC/DC adapter kit (ARES-1230-E)
WIFI-AT2300
Atheros AR9462 Wi-Fi module w/ 20cm internal wiring
ANT-D11
1 x Wi-Fi Dual-band 2.4G/5G antenna
*A CTOS a Configure-to-Order szolgáltatást jelenti.
