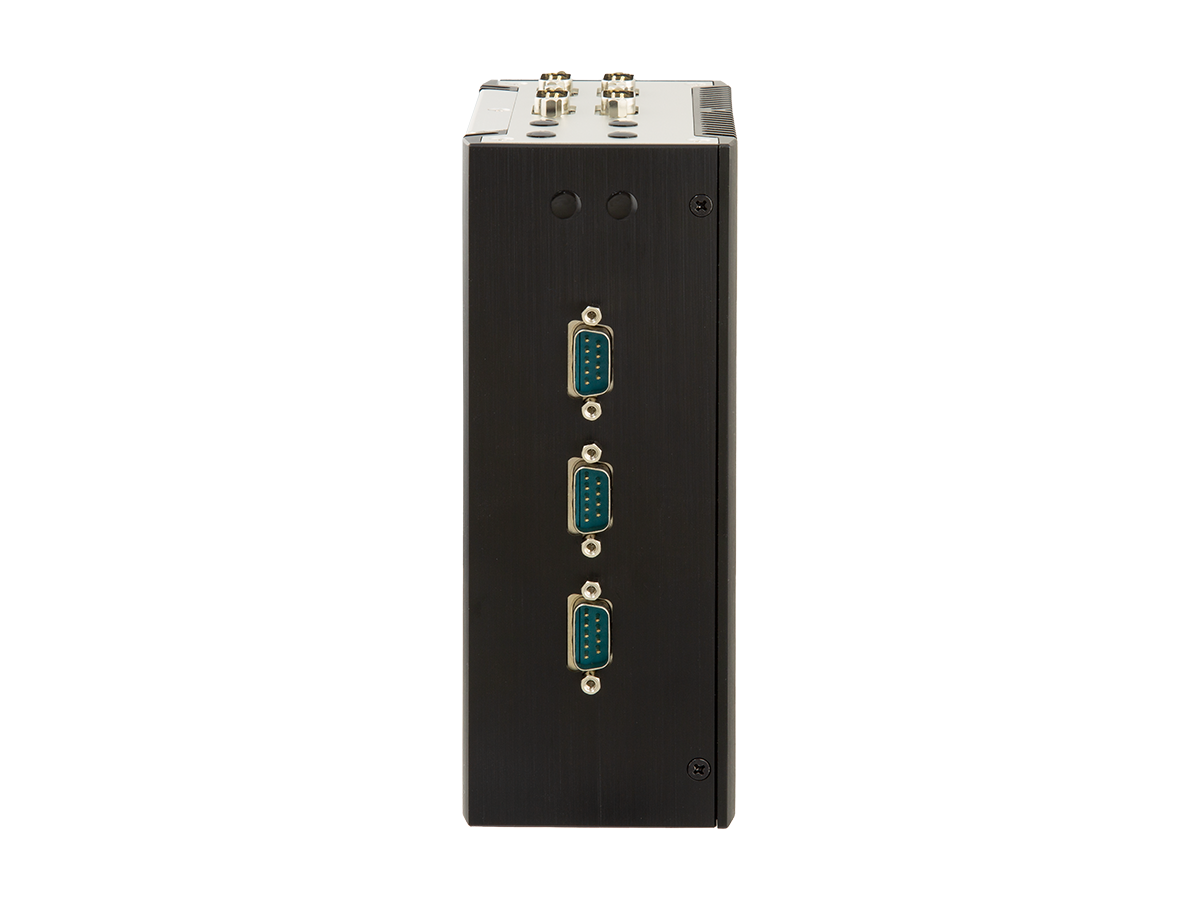

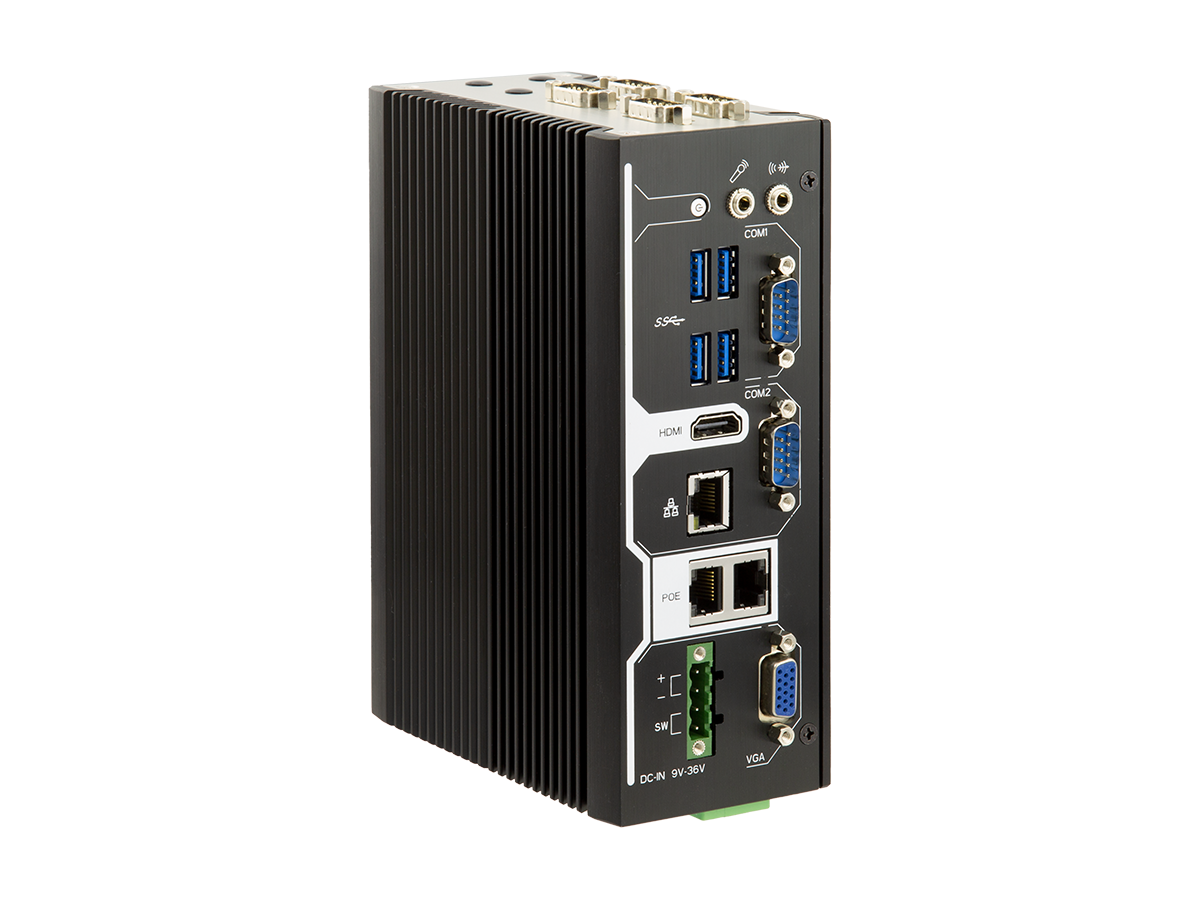

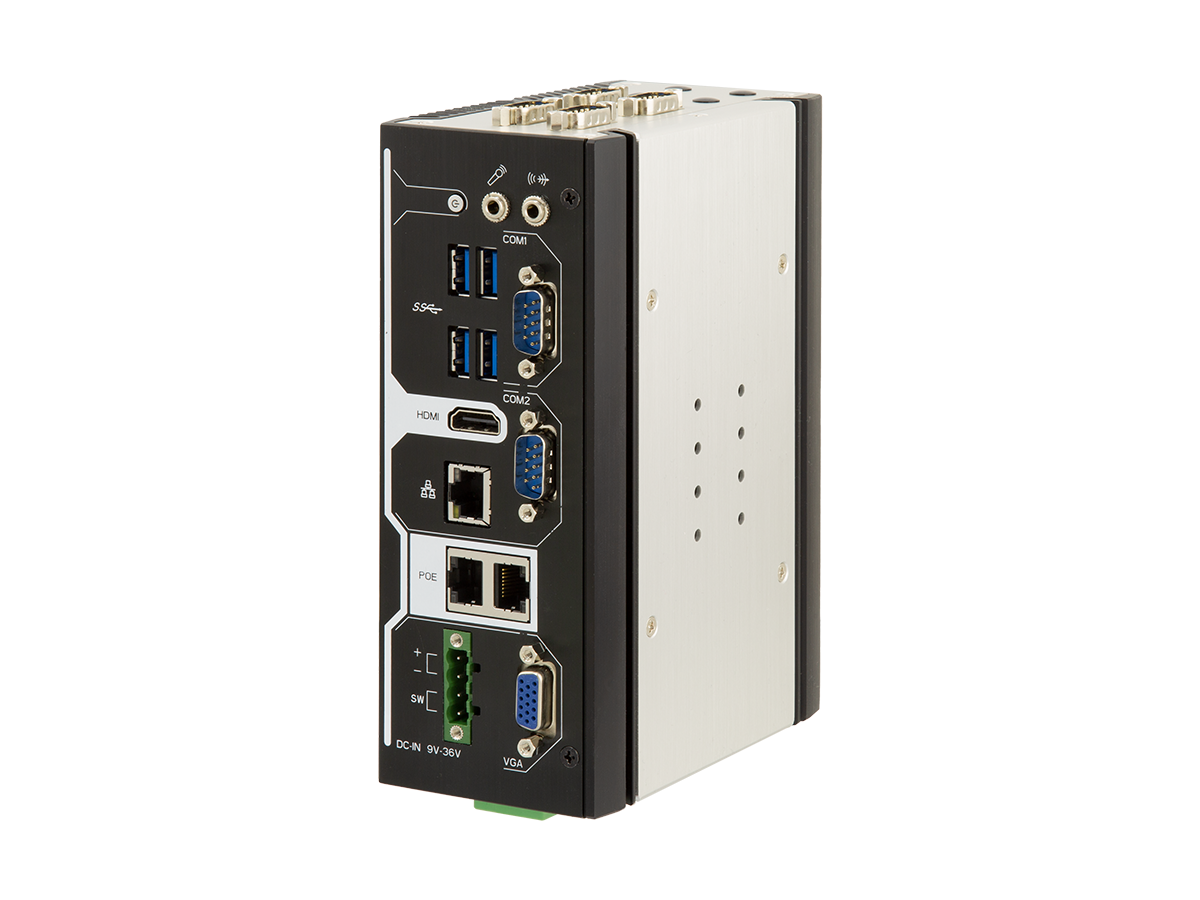

ARBOR ARES-5311
Fanless DIN-Rail Embedded System with Intel® Atom™ x7 / Celeron® ProcessorARBOR ARES-5311 System
| CPU | Soldered onboard Intel® Atom™ x7-E3950 / Celeron® N3350 Processor, Max.12W TDP |
|---|---|
| Memory | 1 x 204-pin DDR3L SO-DIMM sockets, supporting 1866MHz SDRAM up to 8GB |
| Chipset | SoC |
| Graphics | Intel® HD Graphic 505 |
| LAN Chipset | 3 x Intel® i211AT PCIe controller (Co-Layout i210-IT) |
| Watchdog Timer | 1~255 levels reset |

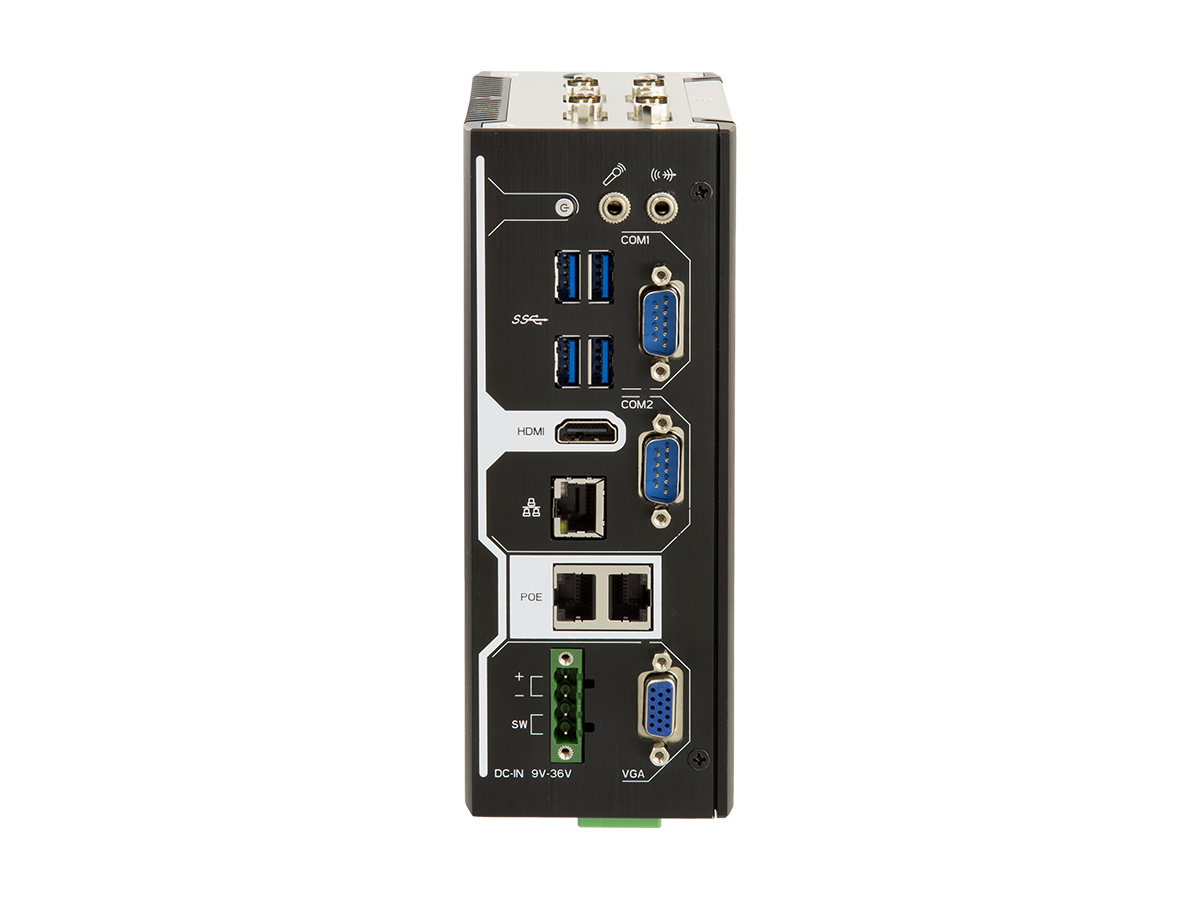

ARBOR ARES-5311 I/O Interface
| Serial Port | 4 x RS232 (Default)/ 422/ 485, 2 x RS232(Default)/422/485 w/ RI/5V/12V 3 x RS232(Default)/485 (DB-9 male connector) (Switch via BIOS) |
|---|---|
| USB Port | 4 x USB 3.0/ 2.0 (Type A connector) |
| LAN | 2 x RJ-45 ports for PoE, IEEE802.3af 1 x RJ-45 ports for Giga LAN |
| Video Port | 1 x HDMI connector (Up to 3840 x 2160@30Hz) 1 x VGA connector (Up to 1920 x 1080@60Hz) |
| Expansion Bus | 1 x Mini PCIe slot (PCIe x1+ USB2.0, Full size) 1 x Mini PCIe slot (USB2.0, Full size) |
| Digital I/O | 16 x DI, 16 x DO w/ 2kV isolation protection |
| SIM | 1 x internal on-board nano SIM slot 1 x internal on-board micro SIM slot |
ARBOR ARES-5311 Environmental
| Operating Temp. | -20 ~ 70°C (-4 ~ 158°F), ambient w/ air flow |
|---|---|
| Storage Temp. | -40 ~ 80°C (-40 ~ 176°F) |
| Operating Humidity | 10 ~ 95% @ 70°C (non-condensing) |
| Vibration | 5~500Hz 3 Grms X,Y,Z axis w/ mSATA, according to IEC 68-2-64 |
| Shock & Crash | 10G peak acceleration (11 m sec. duration), operation 30G peak acceleration (11 m sec. duration), nonoperation According to IEC 68-2-27 |
Qualification
| Certification | CE, FCC Class A |
|---|
OS Support
| System | Windows 10 IoT, Linux: Ubuntu (Kernel: 3.1X) |
|---|
Storage
| Type | 64GB eMMC on-board 1 x M.2 M-Key, 2242, SATA3.0 |
|---|
Power Requirement
| Power Input | DC 9 ~ 36V (4 pin DCin terminal block: V+, V-, SW-, SW+) |
|---|---|
| Ignition Switch | 2-pin terminal block: IGN & GND |
| Power Consumption | Max. 65W |
Mechanical
| Construction | Metal + Aluminum Alloy |
|---|---|
| Mounting | Wall-mount/ DIN-rail |
| Weight | 1.7Kg |
| Dimensions (W x D x H) | 180 x 125 x 70 mm (7.07” x 4.9” x 2.75”) |
ARBOR ARES-5311 tartozékok
Standard tartozékok
DRK-002
Al6063 DIN Rail 84 x 60 x 9 mm
Opcionális tartozékok
PAC-120W6B-FSPS
19V/6.3A, 120W AC/DC adapter kit
WIFI-AT4550
Atheros QCNFA324 Wi-Fi module w/ 2*30cm internal wiring
ANT-D11
1 x Wi-Fi Dual-band 2.4G/5G antenna
ANT-H11
2dBi HSUPA Antenna Kit
LTE-1450
LTE Quectel EC25-E Cat 4 Mini-PCIe Wireless Kit(excluded North of America/Euro)
MK-3CL-2G/4G/8G DIMM Memory
2G/4G/8G DDR3L Memory with heat sink kit
WMK-1973
Wall-mount kit for ARES-1973/5310
