ARBOR ASLAN-W910C
ARBOR ASLAN-W910C Fanless 10.1" Wide-Screen Industrial Panel PC with Intel® Core i5-6300U 2.4GHz ProcessorSystem
| CPU | Intel® Core i5-6300U™ Processor 2.4GHz |
|---|---|
| Memory | 1 x 260-pin DDR SO-DIMM socket, supporting 2133MHz SDRAM up to 16GB 4GB DDR4 DDR SO-DIMM pre-installed |
| LAN Chipset | 1 x Intel® i219LM PCIe controller w/ iAMT 1 x Intel® i210IT PCIe controller |
| Watchdog Timer | 1~255 levels reset |
LCD Display

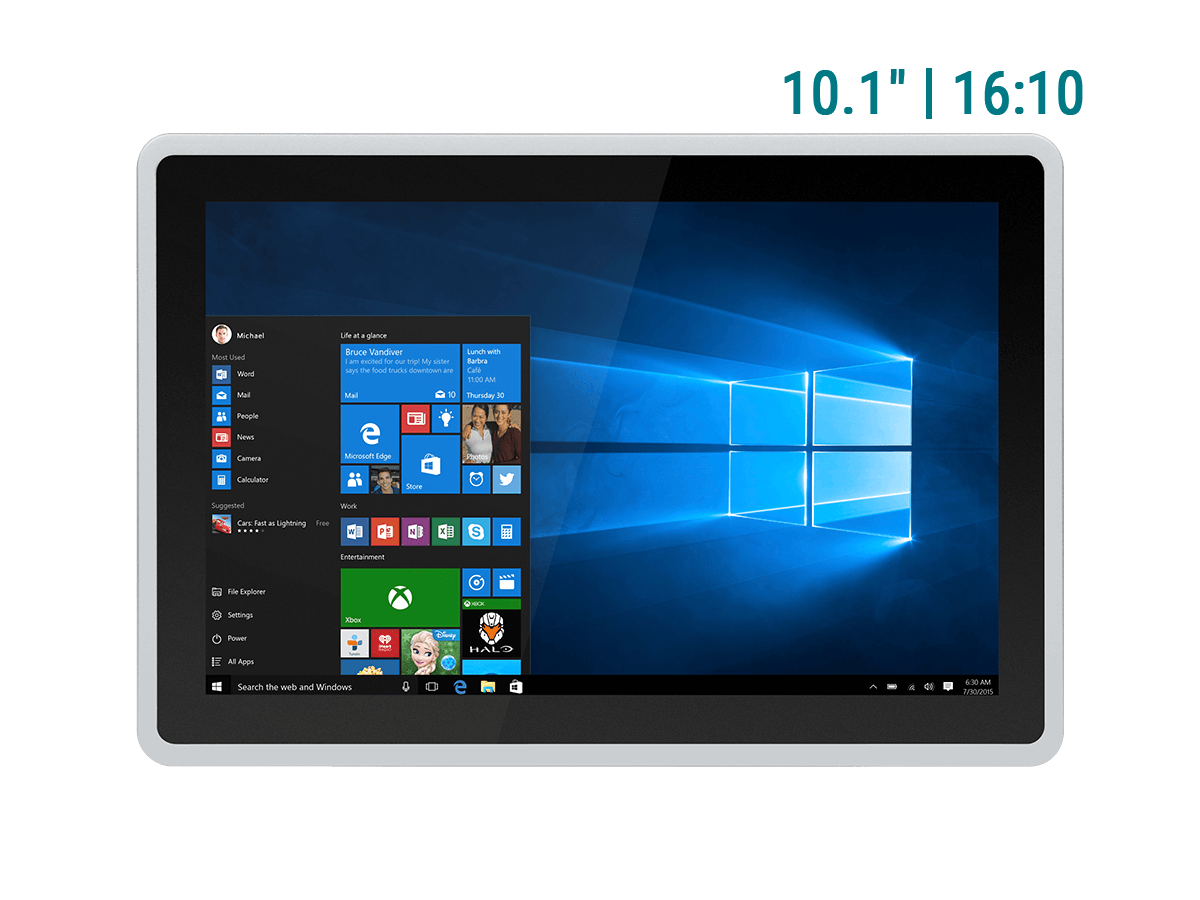

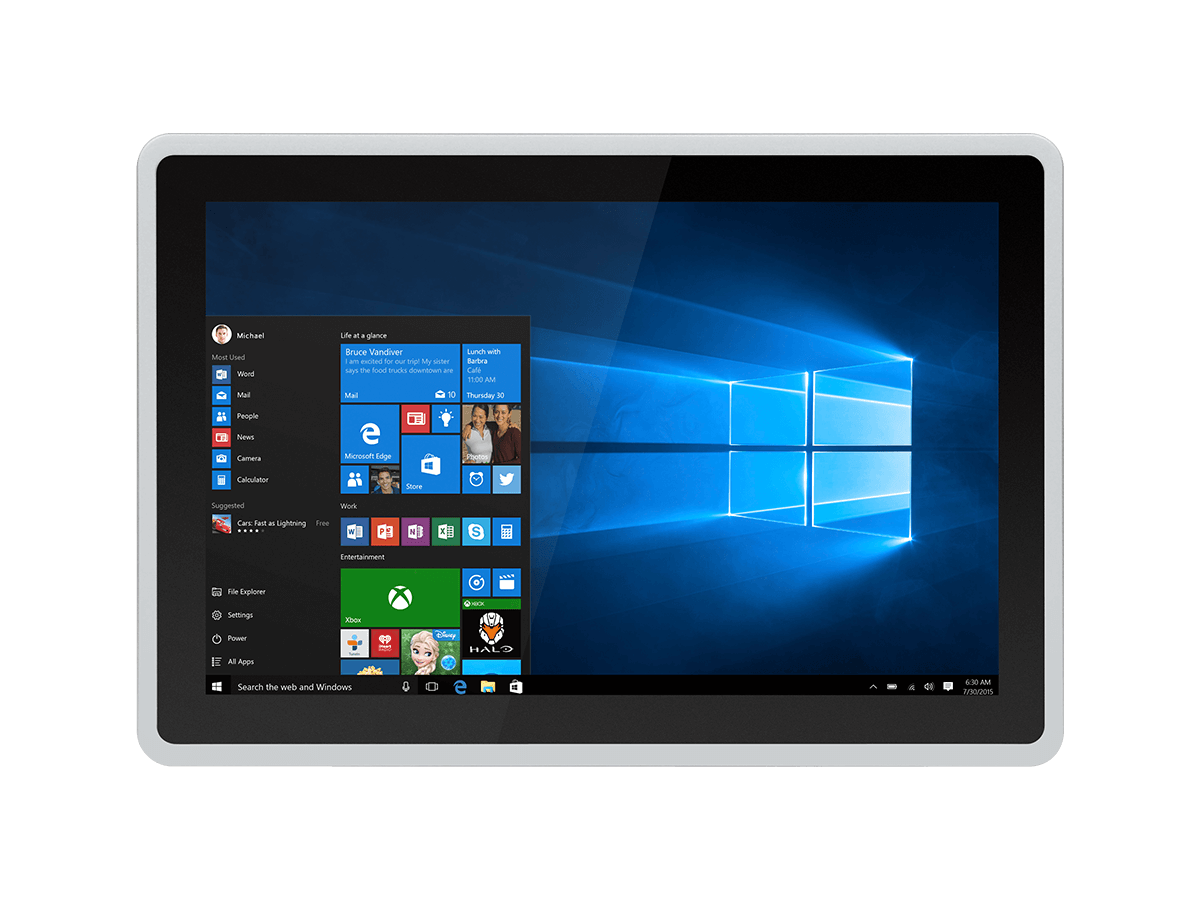

| Size / Type | 10.1" TFT LCD Panel |
|---|---|
| Max. Resolution | 1280 x 800, WXGA |
| Max. Colors | 16.7M |
| Luminance | 350 cd/m² |
| Touch Screen | Projected capacitive touch panel |
| View Angle (U/D/R/L) | 80° / 80° / 85° / 85° |

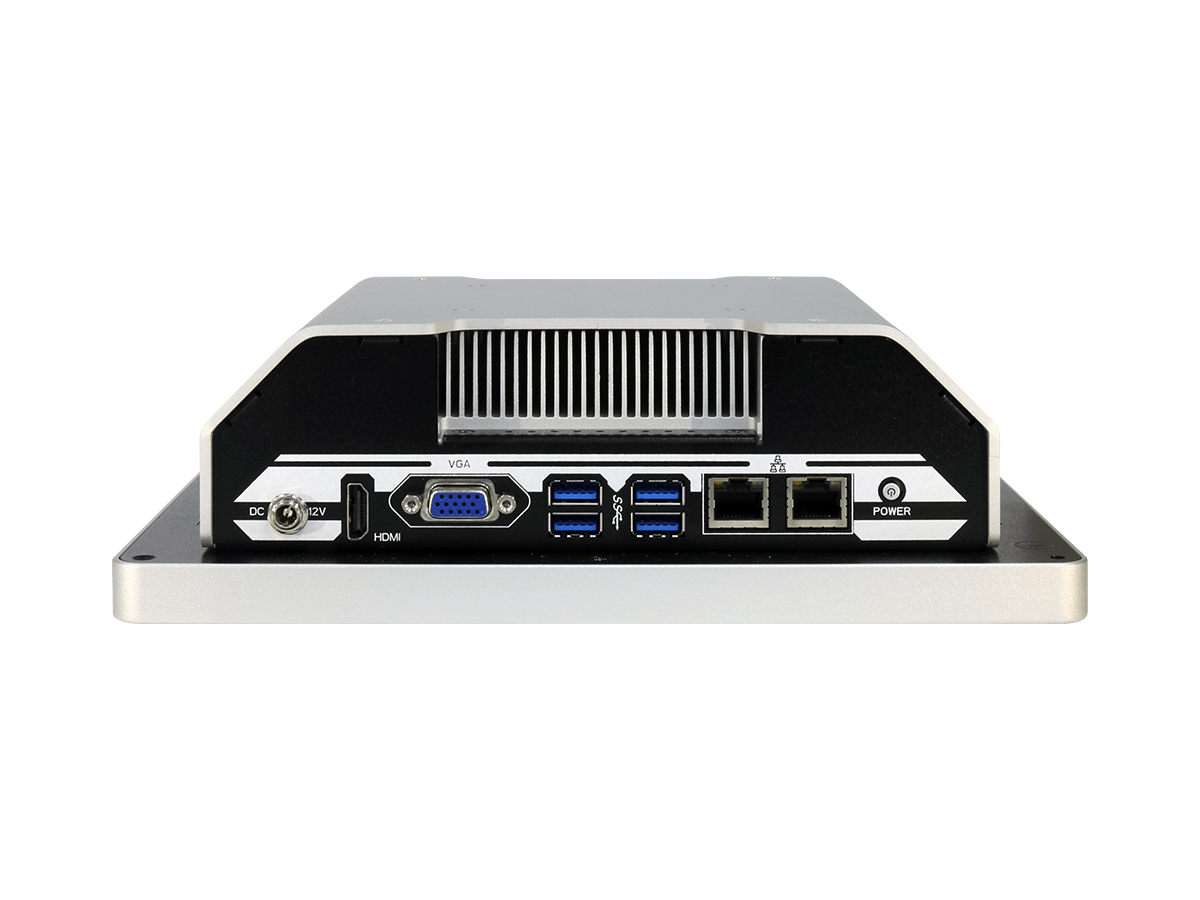

External I/O
| USB Ports | 4 x Type-A USB 3.0 / 2.0 ports |
|---|---|
| LAN | 2 x RJ-45 GbE ports |
| Video Ports | 1 x VGA / 1 x HDMI |

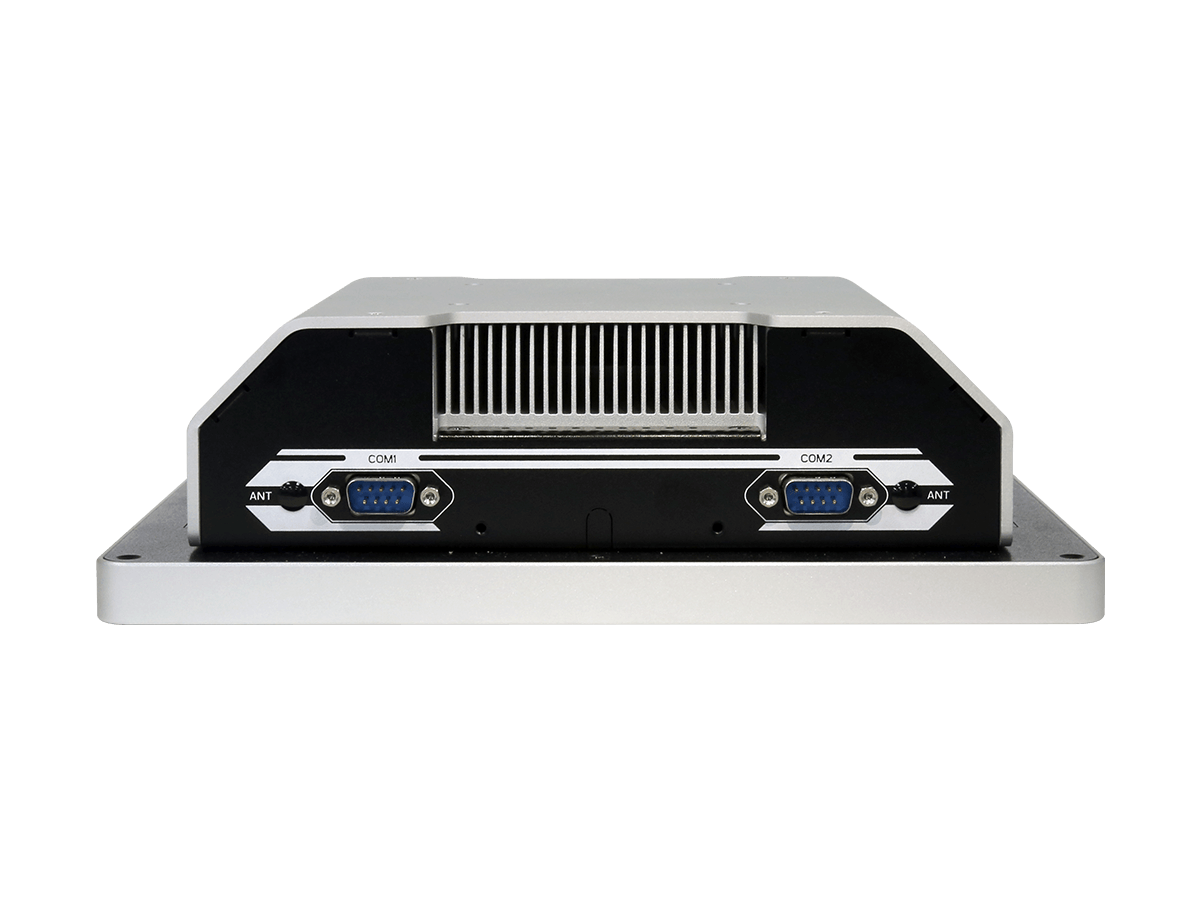

| COM | 2 x COM (RS-232/422/485) |
Storage
| Device | 1 x mSATA |
|---|
Audio
| Type | Line Out / Mic In (Optional) |
|---|
Qualification
| Certification | CE, FCC Class A |
|---|
Power System
| Power Input | DC 12 ~ 28V |
|---|---|
| Power Consumption | Max. 23W (w/o I/O cards) |
Mechanical
| Mounting Type | VESA-75 / Panel Mount (Bracket Optional) |
|---|---|
| Chassis | Panel-mounting chassis, aluminum front bezel and SGCC steel chassis |
| Weight (Net) | 2.41 kg (5.31 lb) |
| Dimensions (W x H x D) | 255 x 175 x 76.5 mm (10.04” x 6.89” x 3.01”) |
Environmental
| Operating Temp. | -20ºC ~ 55ºC (-4°F ~ 131°F) |
|---|---|
| Storage Temp. | -30ºC ~ 70°C (-22°F ~ 158°F) |
| Operating Humidity | 10 ~ 95% RH @ 55°C (non-condensing) |
| Vibration | 5 ~ 500Hz, 0.5Grms Random (w/ SSD) |
| Shock | Operating 10G, 11ms Non-operating 30G, 11ms (w/ SSD) |
Expansion
| Expansion Bus | 1 x mSATA (SATA, Full Size) 1 x mPCIE (PCIex1+USB2.0, Full Size) 1 x mPCIE (PCIex1+USB2.0, Half Size) |
|---|
OS Support
| System | Windows 7 / Windows 8.1 / Windows 10 / Linux: Ubuntu |
|---|
ARBOR ASLAN-W910C tartozékok
Opcionális tartozékok
PAC-60W6A-FSP-ES
12V/5A 60W AC/DC Adapter Kit
Opcionális konfiguráció (CTOS* készlet)
32 / 64 GB SSD
mSATA MLC 32 / 64 GB
WiFi-AT4550
Atheros, QCNFA324 Wi-Fi module w/ 2*30cm internal wiring
ANT-D11
1 x Wi-Fi Dual-band 2.4G / 5G antenna
PMB-910C
Panel Mount Kit for W910/912C
SCK-722C
Assembly kit for SiP-41B/42B
(Note: SCK-722C can only be installed with VMB-1150-EXP/VMB-1170-EXP Mounting Bracket)
(Note: SCK-722C can only be installed with VMB-1150-EXP/VMB-1170-EXP Mounting Bracket)
* A CTOS a Configure-to-Order Service (Megrendelésre konfigurálás szolgáltatás) rövidítése.
