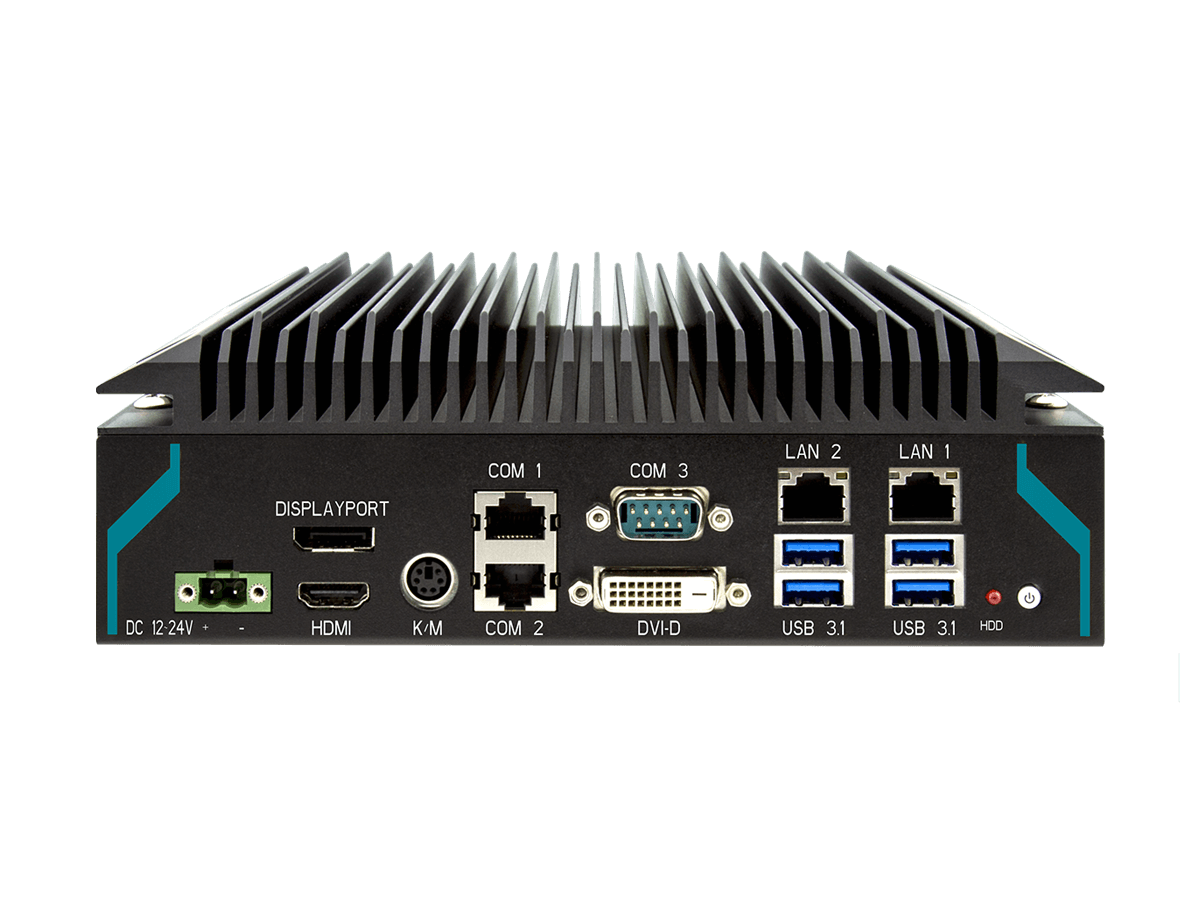

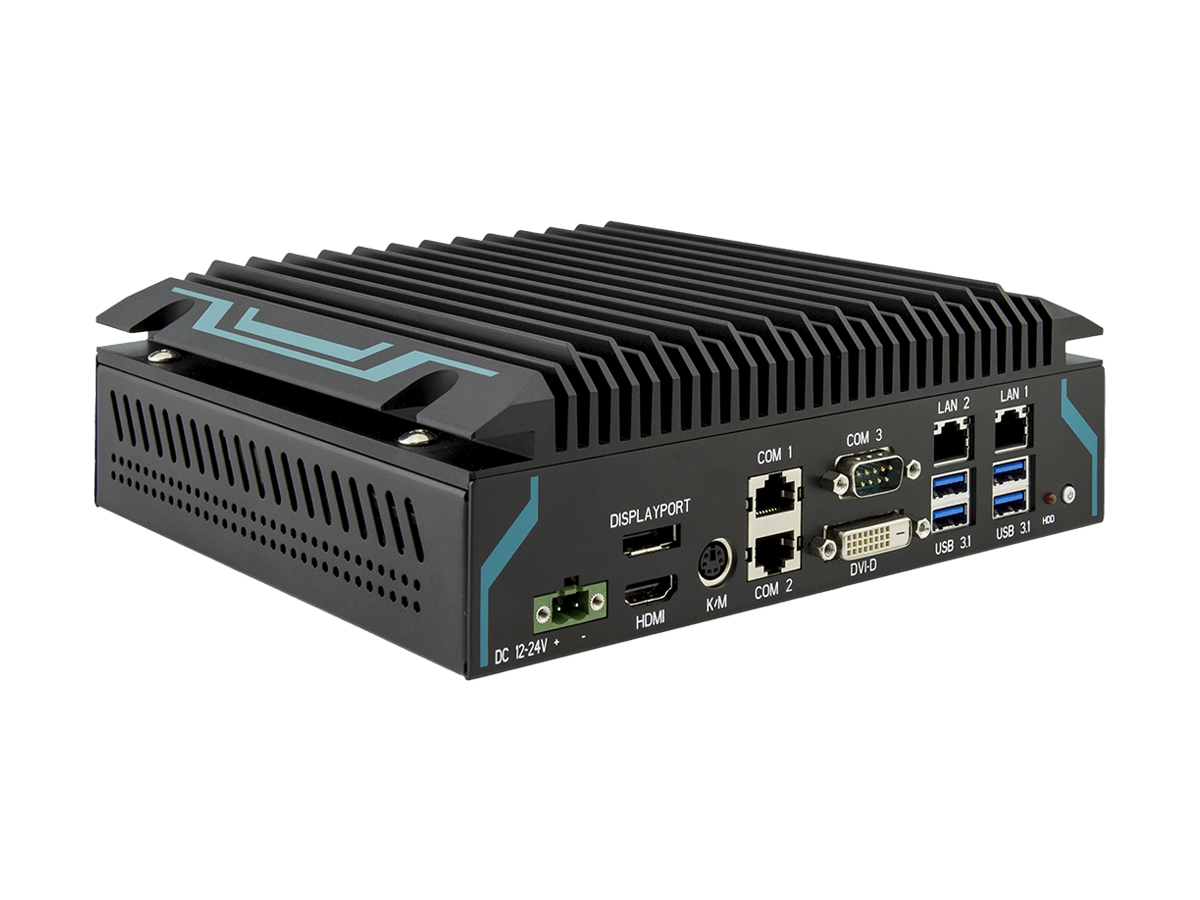

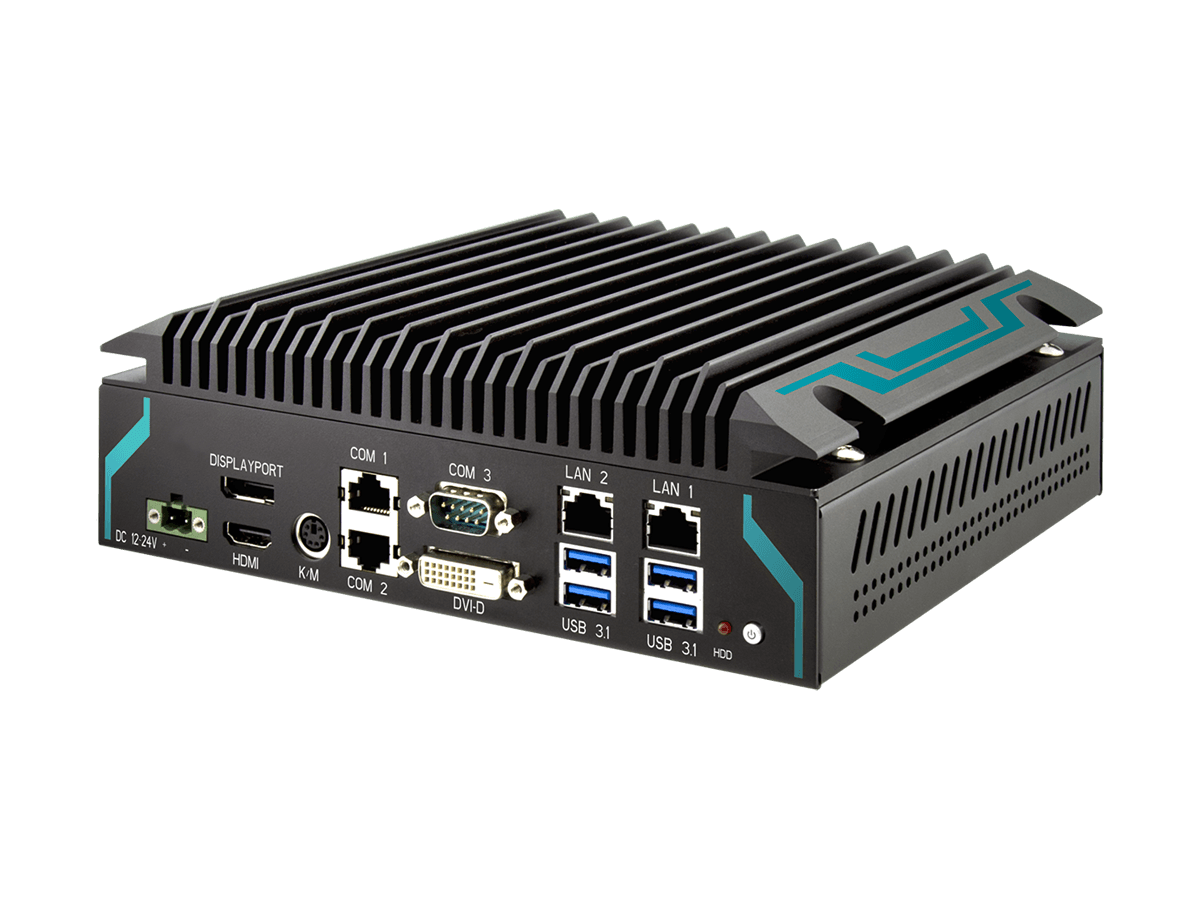

ARBOR ELIT-1930
Fanless Box PC Signage Player with 8th/9th Gen. Intel® Core™ i9/i7/i5/i3 Processor (Coffee Lake Refresh / Coffee Lake)System
| CPU | 8th & 9th Gen. Intel® Core™ i9/i7/i5/i3 Processor in LGA1151 Socket (Max.35W TDP) |
|---|---|
| Memory | 2 x 260-pin DDR4 SO-DIMM sockets, supporting 2400/2666MHz SDRAM up to 32GB |
| Chipset | Intel® Q370 |
| Graphics | Intel® UHD Graphics 630 |
| LAN Chipset | 1 x Intel® i219LM (LAN1)(/iAMT for i5/i7) 1 x Intel® i210IT (LAN2) |
| Watchdog Timer | 1~255 levels reset |
I/O Interface
| PS/2 | 1 x keyboard and mouse connector |
|---|---|
| USB Port | 4 x USB 3.1 with Type A connectors |
| LAN | 2 x RJ-45 ports for GbE |
| Serial Port | 3 x RS-232/485 port w/1 x DB-9 / 2x RJ-45 |
| Video Port | 1 x DP 1.2, up to 3840x2160@60Hz 1 x HDMI, up to 3840x2160@60Hz 1 x DVI-D, up to 1920x1080@60Hz Support two channel 4K(UHD) display output |
| Audio | Mic-in / Line-out |
| Expansion Bus / Storage | 1 x M.2 M-Key 2280 socket (standard M-key), BIOS default: SATA + PCIex4 (for storage) 1 x M.2 E-Key 2230 socket (standard E-key), BIOS default: PCIe x1+USB 2.0 (for Wi-Fi /BT) 1 x M.2 B-Key 2242 socket (standard B-key except HSIC), BIOS default: PCIe x1+ USB3.0, BIOS option: SATA + USB3.0 (for RAID) 1 x Nano SIM Socket |
Environmental
| Operating Temp. | -15 ~ 60°C (5 ~ 140°F), ambient w/ air flow |
|---|---|
| Storage Temp. | -20 ~ 70°C (-4 ~ 158°F) |
| Operating Humidity | 10 ~ 95% @ 50°C (non-condensing) |
| Vibration | 3 Grms/5~500Hz/random operation |
| Shock | Operating 40G (11ms), non-operating 80G with M.2 PCIe SSD |
Power Requirement
| Power Input | DC 12~24V input |
|---|---|
| Power Consumption | Max. 60W (w/o I/O card) |
| Power Management | RTC wakeup timer configurable |
Mechanical
| Construction | Aluminum alloy |
|---|---|
| Mounting | Wall-mount |
| Weight | 3 kg |
| Dimensions (W x H x D) | 210 x 70 x 190 mm |
Qualification
| Certification | CE, FCC Class A |
|---|
ARBOR ELIT-1930 tartozékok
Standard tartozékok
Bracket
ELIT-1930 bracket
Opcionális tartozékok/h4>
PAC-60W6A-FSP-ES
60W AC/DC 12V adapter kit with 2-pin/ 3-pin/ 4-pin blocks
