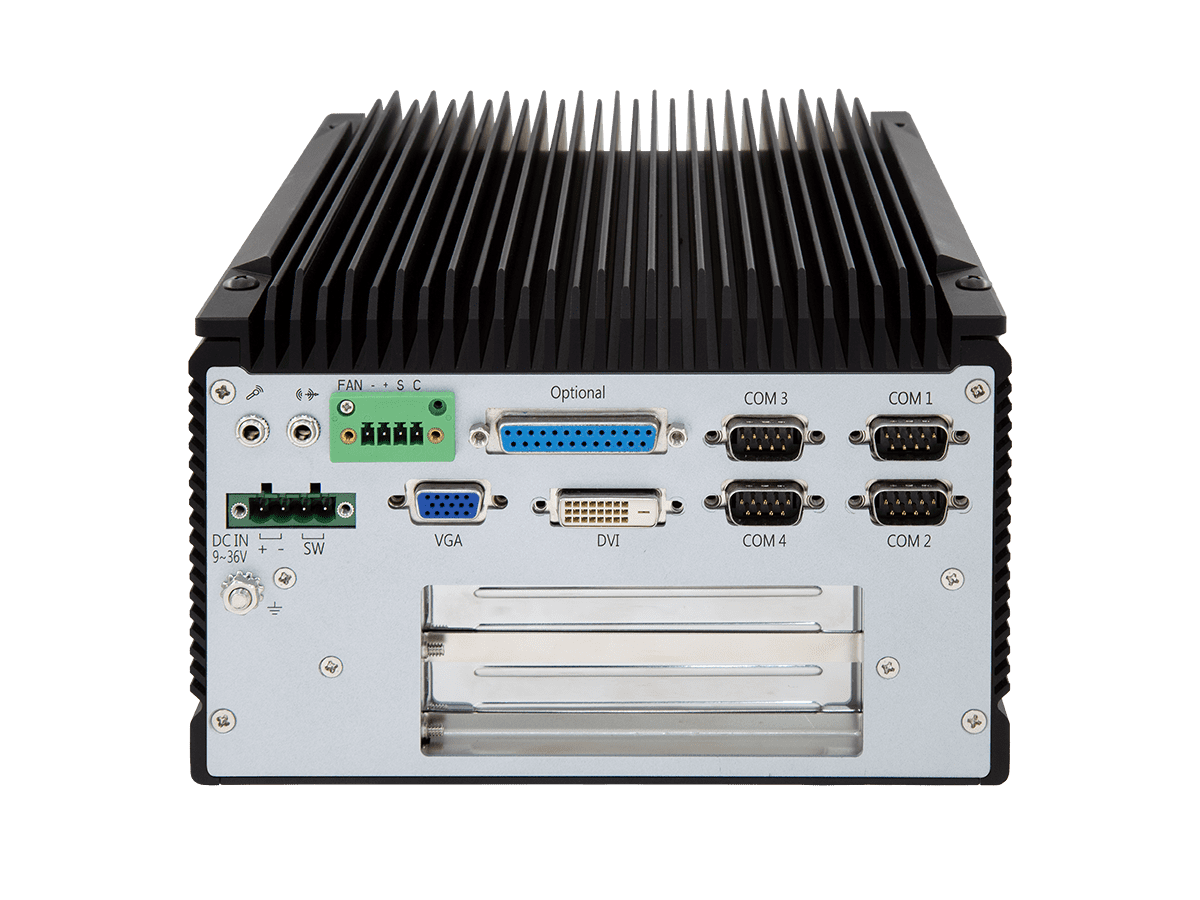

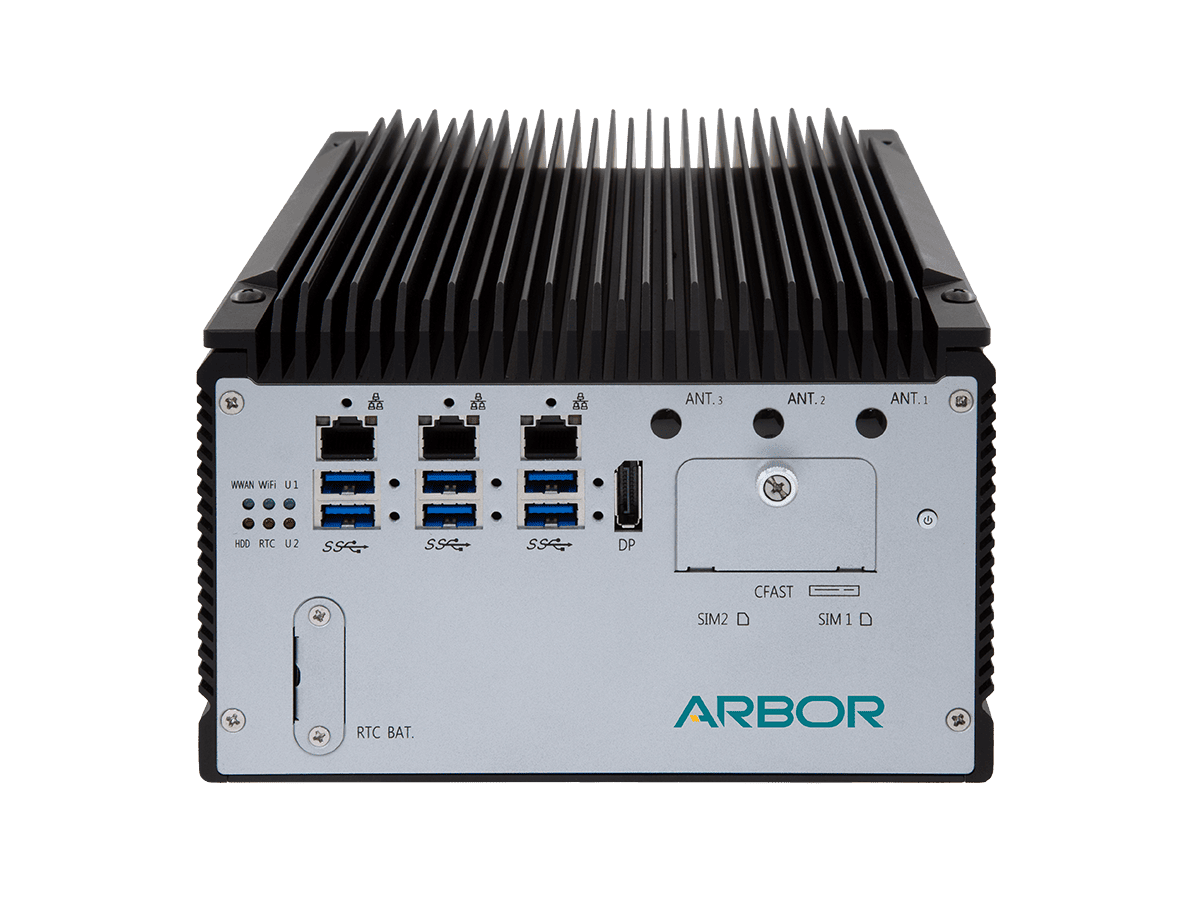

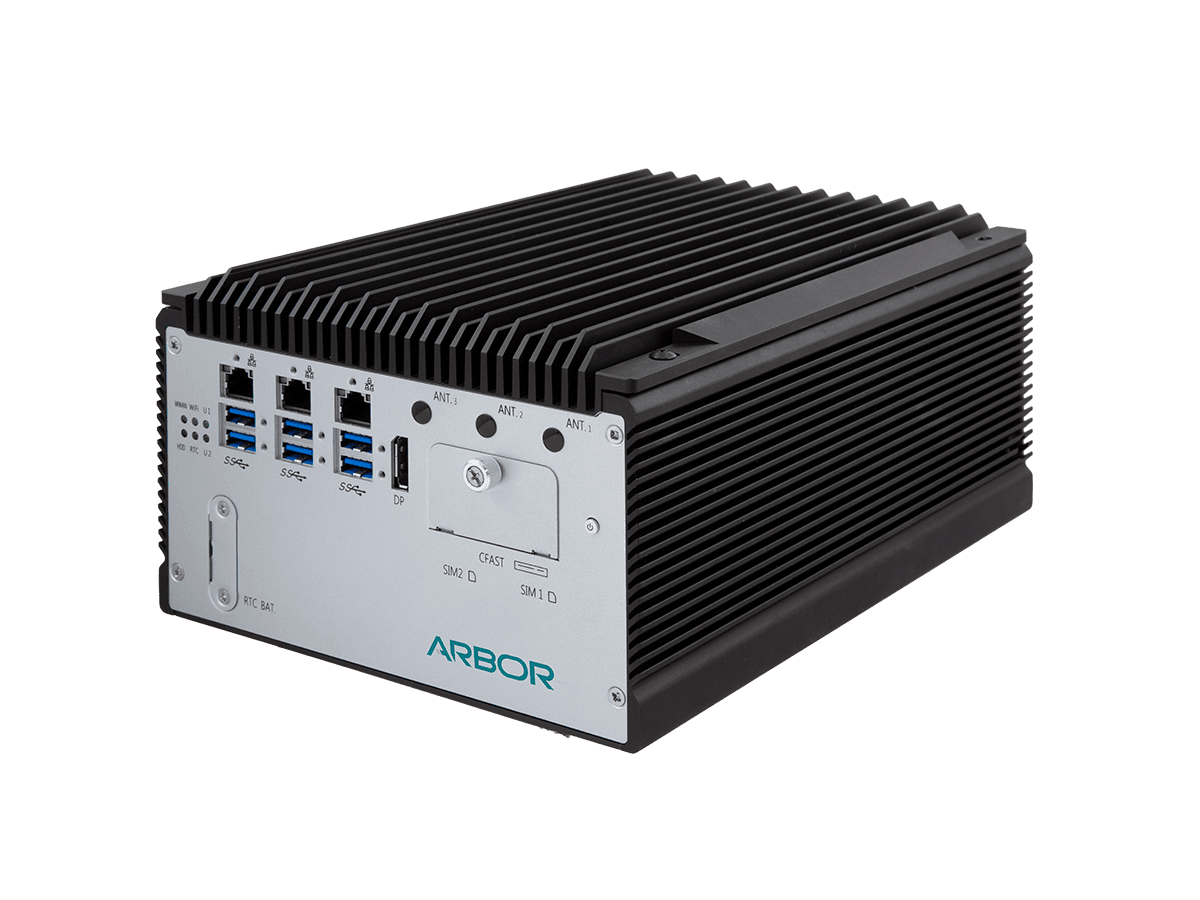

ARBOR FPC-8211/12/13
Robust Box PC with Intel® 14th/ 13th/ 12th Generation Core™ i9/i7/i5/i3 Processor
ARBOR FPC-8211/12/13 System |
|
| CPU | Intel® 14th/13th/12th Gen. Core™ i9/i7/i5/i3 Processor in LGA1700 socket |
|---|---|
| Memory | 2 x 262-pin DDR5 SO-DIMM sockets, supporting 4800/5600 MHz SDRAM up to 96GB |
| Chipset | Intel® H610E |
| Graphics | Integrated Intel® HD Graphics |
| ATA | 2 x Serial ATA ports with 600MB/s HDD transfer rate |
| LAN Chipset | 3 x Intel® WGI226V 2.5GbE controllers |
| Watchdog Timer | 1~255 levels reset |
I/O Interface |
|
| Serial Port | 4 x RS-232 ports DB-9 connectors (COM1 and COM2 are RS-232/422/485 configurable) |
| Selectable Port | 1 x DB25 connector for DIO (8 in/8 out) port or LPT port (either one, default is DIO) |
| USB Port | 2 x USB 3.2 Gen2 ports (10Gbps) 4 x USB 3.2 Gen1 ports (5Gbps) Support internal USB dongle (Optional) |
| LAN | 3 x RJ-45 ports for 2.5GbE |
| Video Port | 1 x DB-15 female connector for Analog RGB 1 x DP 1 x DVI-D female connector for digital video output * Support 3 independent displays |
| Audio | Mic-in / Line-out |
| Expansion Bus | 1 x Mini-card socket interconnected with SIM card socket (Full size) 1 x M.2 E Key (2230) for WiFi (CNVi Only) 1 x M.2 B key (2242/3052/2280) w/ (PCIe x2 + USB3.0 + SATA) interconnected with SIM for 5G/LTE expansion or for storage 1 x PCIe x16 slot + 1 x PCI slot (FPC-8211) 1 x PCIe x16 slot + 1 x PCIe x8 slot (via x1 lanes) (FPC-8212) 2 x PCI (FPC-8213) |
Environmental |
|
| Operating Temp. | -20°C ~ 70°C (-4°F ~ 158°F), ambient w/ air flow (w/ 35W TDP CPU, fanless) -20°C ~ 55°C (-4°F ~ 131°F), ambient w/ air flow (w/ 65W TDP CPU, fanless) |
| Storage Temp. | -40°C ~ 85°C (-40°F ~ 185°F) |
Environmental |
|
| Operating Humidity | 10% ~ 95% @ 55°C (non-condensing) |
|---|---|
| Vibration | 3 Grms / 5~500Hz / random operation w/ SSD |
| Shock | Operating 40G (11ms), Non-operating 60G with SSD |
Power Requirement |
|
| Power Input | DC 9~36V input (w/ 4-pin terminal block, combining remote power on/off switch) |
| Power Consumption | MAX 65W (w/35W TDP CPU, w/o I/O card) MAX 95W (w/65W TDP CPU, w/o I/O card) |
Storage |
|
| Type | 2 x 2.5” drive bays (Optional support RAID 0,1 , BTO) 1 x CFast socket, outside accessible |
Mechanical |
|
| Construction | Aluminum Alloy |
| Mounting | Wall-mount |
| Weight | 5.8kg (12.78 lb) |
| Dimensions (W x D x H) | 195 x 268 x 125 mm |
Qualification |
|
| Certification | CE, FCC Class A |
OS Support |
|
| System | Windows 10 IOT / Windows 11 IOT Linux (Ubuntu 22.04) |
ARBOR FPC-8211/12/13 tartozékok
Opcionális tartozékok
PAC-120W6B-FSP-ES
120W AC/DC 19V adapter kit w/ 2-pin/3-pin/4-pin block
PAC-180W6B-FSP-ES
180W AC/DC 19V adapter kit w/ 2-pin/3-pin/4-pin block
WMK-7000
Wall-mount kit for FPC-7XXX Series
Opcionális tartozékok (*CTOS Kit)
240GB SSD
Intel® 2.5” 240GB SATA III SSD kit
MK-5C-8G/16G/32G/48G
DDR5-4800/5600 8GB/16GB/32GB/48GB SDRAM DIMM kit
WIFI-IN2550
Intel AX200NGW M.2 Wi-Fi 6 module w/ 2 x 30cm internal wires
ANT-H11
2dBi HSUPA Antenna Kit
ANT-D11
1 x Wi-Fi dual-band 2.4G/5G antenna
Intel® Core™ i9-14900
Intel® 14th Gen. 65W processor, 24C/32T, 2GHz, L2: 32MB
Intel® Core™ i9-14900T
Intel® 14th Gen. 35W processor, 24C/32T, 1.1GHz, L2: 32MB
Intel® Core™ i7-14700
Intel® 14th Gen. 65W processor, 20C/28T, 2.1GHz, L2: 28MB
Intel® Core™ i7-14700T
Intel® 14th Gen. 35W processor, 20C/28T, 1.3GHz, L2: 28MB
Intel® Core™ i5-14400
Intel® 14th Gen. 65W processor, 10C/16T, 2.5GHz, L2: 9.5MB
Intel® Core™ i5-14500T
Intel® 14h Gen. 35W processor, 14C/20T, 1.7GHz, L2: 11.5MB
Intel® Core™ i3-14100
Intel® 14th Gen. Core™ i3-14100 processor, 12M, 3.5G
Intel® Core™ i3-14100T
Intel® 14th Gen. 35W processor, 4C/8T, 2.7GHz, L2: 5MB
*A CTOS a Configure-to-Order szolgáltatást jelenti.
