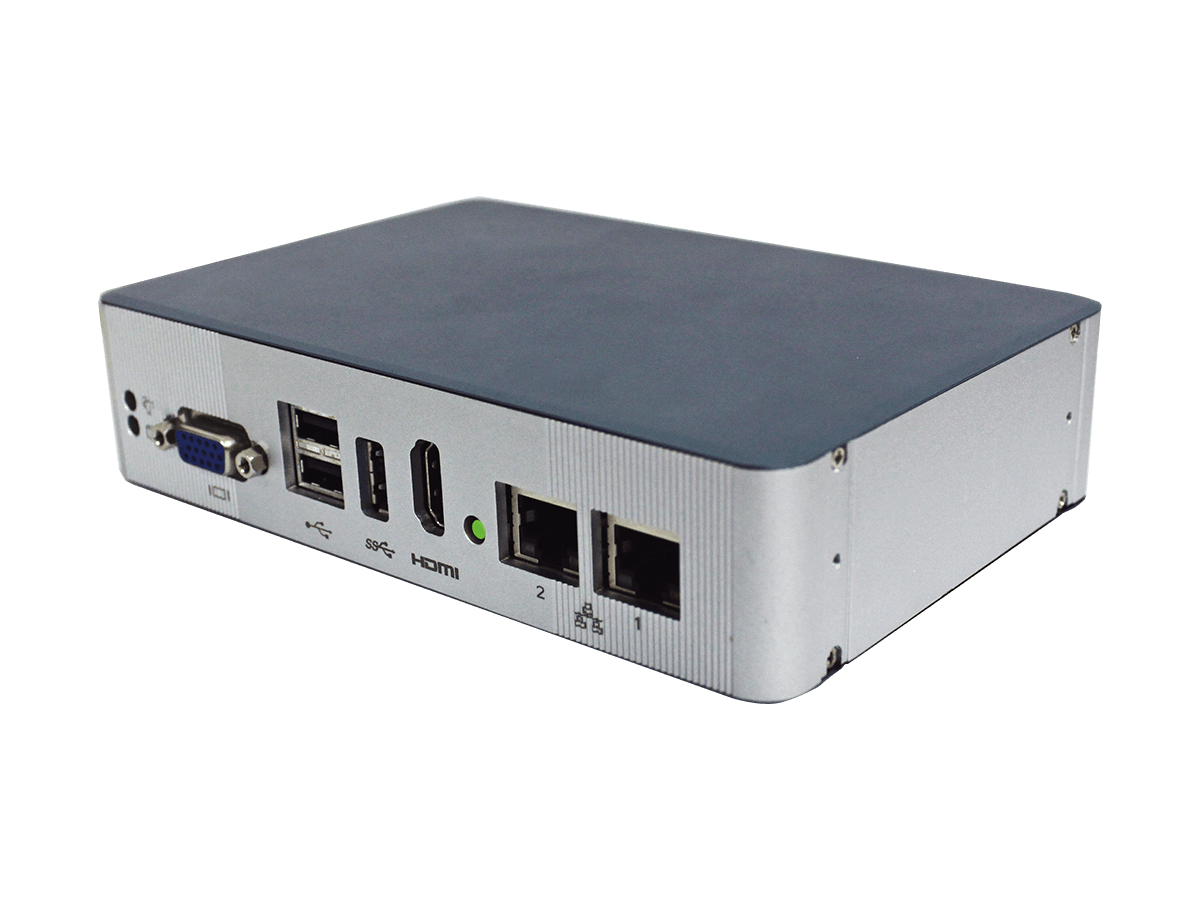

ARBOR IEC-3300

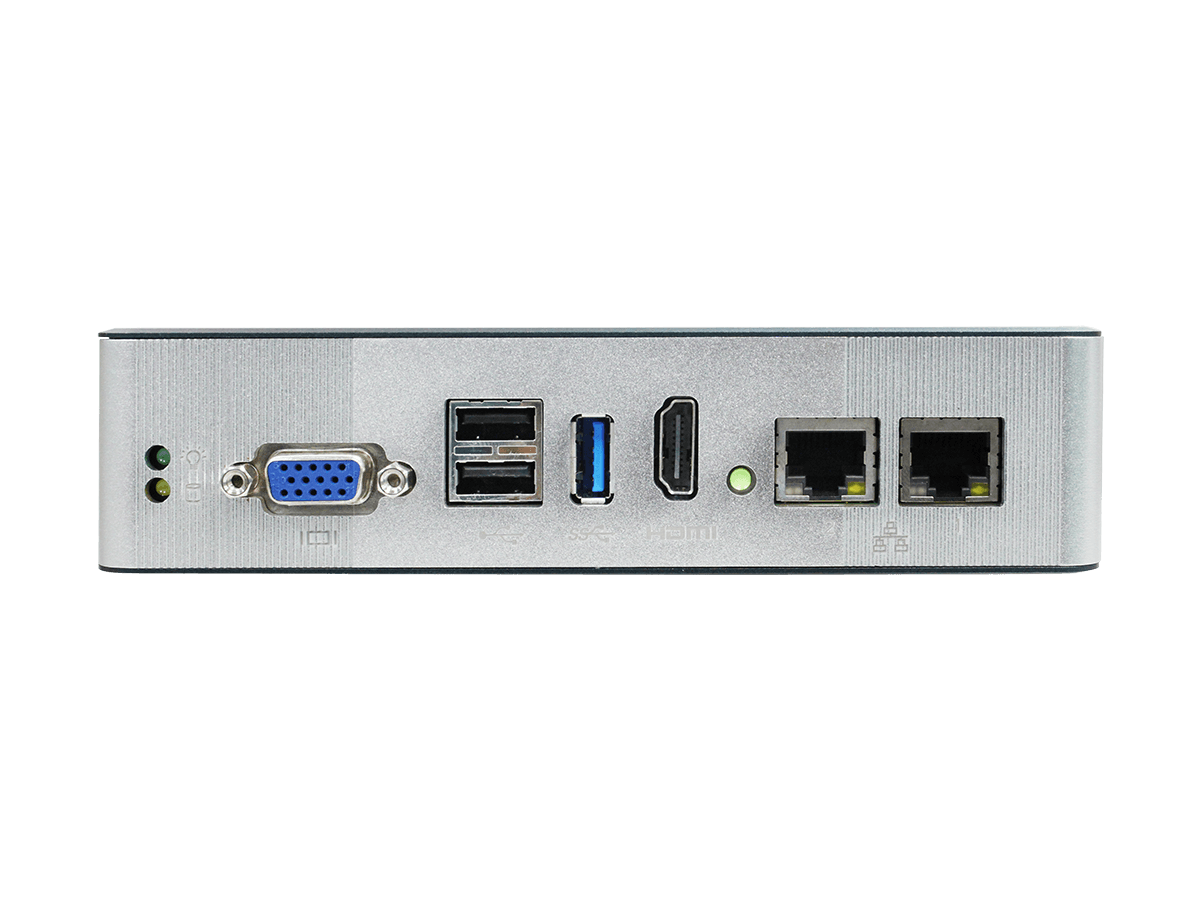

ARBOR IEC-3300 - Image 2

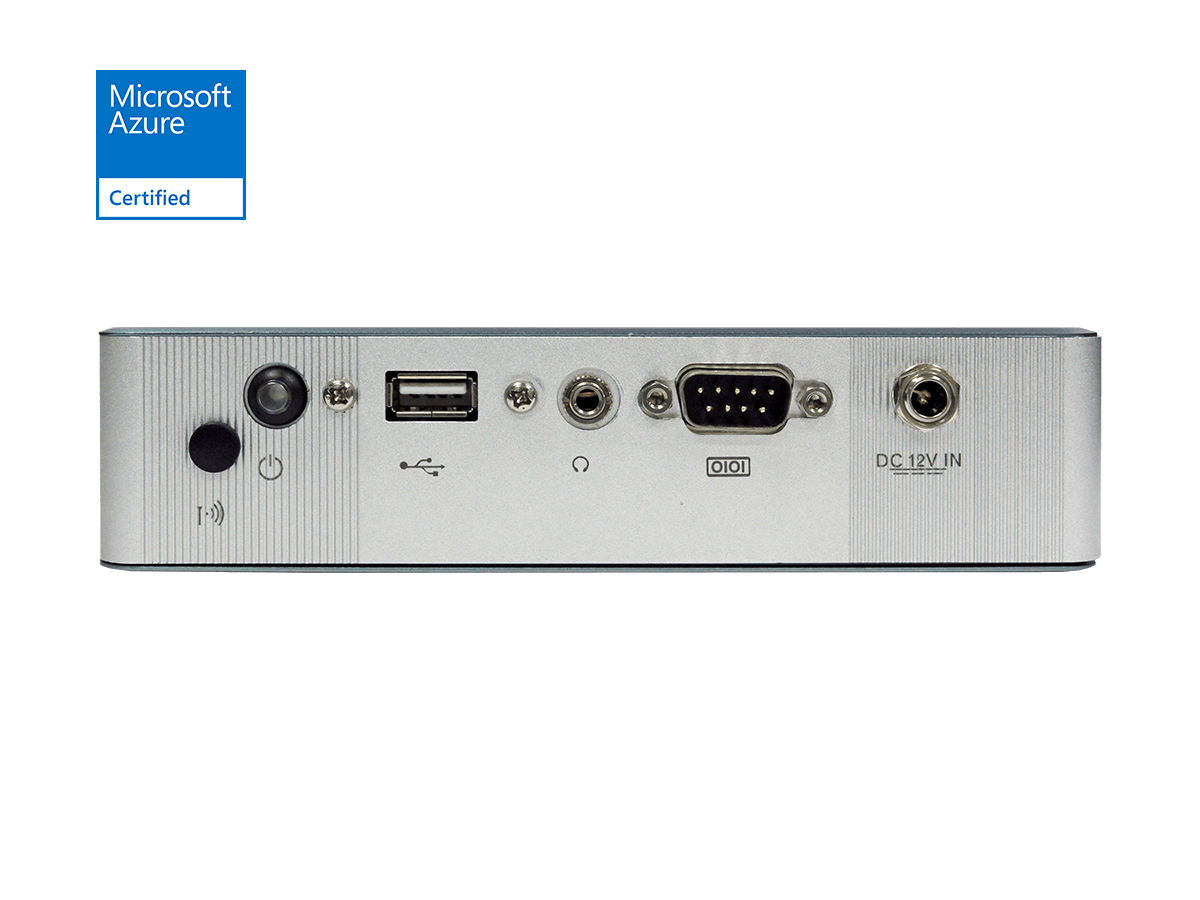

ARBOR IEC-3300 - Image 3

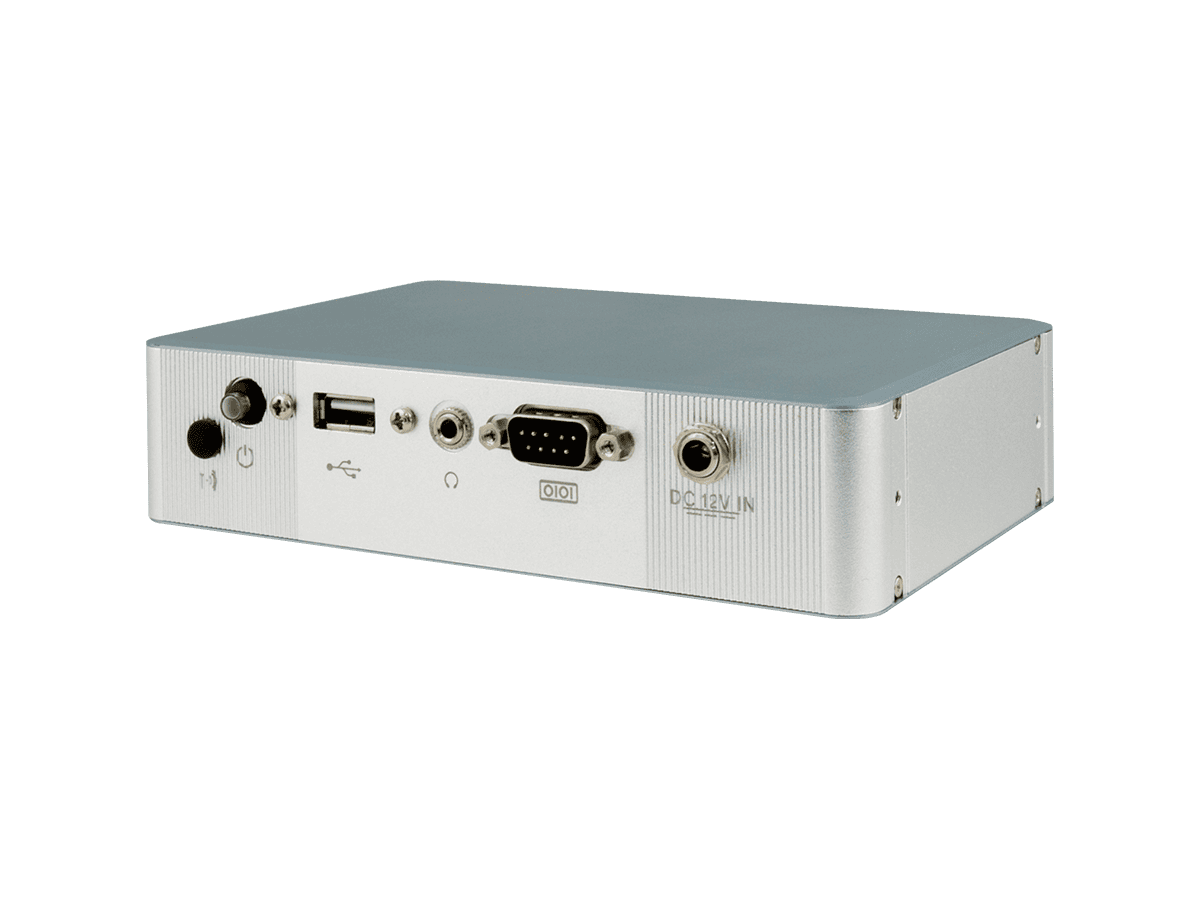

ARBOR IEC-3300 - Image 4

ARBOR IEC-3300

ARBOR IEC-3300 Fanless Box PC in a Compact Boxed Chassis, with Intel® Celeron® / Atom™ Processor

Jellemzők:

  • Ultra Low Power and Fanless Design
  • VGA/ HDMI output supported
  • Optional Wi-Fi Connection supported
  • Rugged Design for Shock / Vibration Protection
  • Easy installation / maintenance

Cikkszám: ARBOR-IEC-3300 Kategóriák: , , , , Címkék: , , , , , Márka:

Leírás

ARBOR IEC-3300

Fanless Box PC in a Compact Boxed Chassis, with Intel® Celeron® / Atom™ Processor

System

CPU Soldered onboard Intel® Celeron® Processor N2807 dual-core 1.58GHz / J1900 quad-core 2GHz Intel® Atom™ E3800 Processor by OEM Request
Memory 1 x 204-pin DDR3L SO-DIMM socket, supporting 1600MHz SDRAM up to 8GB
Optional pre-install 2GB/4GB DDR3L SO-DIMM Memory Module
LAN Chipset 2 x Realtek RTL8111E PCIe GbE controllers
Graphics Integrated Intel® HD Graphics
Watchdog Timer 1~255 levels reset

I/O Interface

USB Port 1 x USB 3.0 port
3 x USB 2.0 ports
LAN 2 x RJ-45 ports for GbE
Serial Port 1 x DB-9 male connector for RS-232
Video Port 1 x DB15 female connector for Analog RGB
1 x HDMI port
Audio 1 x Phone jack connector for Line-out
Expansion Bus 1 x Mini-card socket (Half Size)

Environmental

Operating Temp. -20 ~ 55°C ( -4 ~ 131°F), ambient w/ air flow
Storage Temp. -40 ~ 85°C (-40 ~ 185°F)
Operating Humidity 10 ~ 95% @ 60°C (non-condensing)
Vibration 3 Grms/5~500Hz/random operation
Shock Operating 40G (11ms), Non-operating 60G with mSATA

OS Support

System Windows 7 32-bit/64-bit
Windows 8.1 32-bit/64-bit
Windows 10 IoT
Linux: Ubuntu

Storage

Type 1 x mSATA socket, Optional pre-install 16GB/32GB mSATA SSD
Soldered onboard 16GB eMMC (OEM request for Intel® Atom™ E3800 family only)

Qualification

Certification CE, FCC

Power Requirement

Power Input DC 12V input
Power Consumption 0.77A@12V (typical w/ N2807)
1.04A@12V (typical w/ J1900)

Mechanical

Construction Aluminum alloy
Mounting Wall-mount
Weight (approx.) 0.6kg (1.32lb, Barebone)
Dimensions (W x H x D) 163 x 39 x 109 mm (6.41” x 1.54 x ”4.29”)

ARBOR IEC-3300 tartozékok

Standard tartozékok

products_accessories_WMK-3300

WMK-3300

VESA mount kit
products_accessories_Power_12V5A

Power Adaptor

12VDC, 5A, 60W, 2.5φ JACK, AC/DC Adaptor with power cord
products_accessories_VMK-3300

VMK-3300

Wall mount kit

Opcionális tartozékok

products_accessories_VMK-3300

WMK-3300

VESA mount kit

Opcionális tartozékok (*CTOS Kit)

products_accessories_32GB-SSD

16GB / 32GB SSD

mSATA MLC 16GB / 32GB
products_accessories_MM-3CL-2G

2GB / 4GB / 8GB SO-DIMM

12VDC, 5A, 60W, 2.5φ JACK, AC/DC Adaptor with power cord
products_accessories_WiFi-AT4550

WiFi-AT2200

Atheros AR9462 Wi-Fi module w/ 15cm internal wiring
products_accessories_ANT-H11

ANT-D11

1 x Wi-Fi Dual-band 2.4G/5G antenna
*A CTOS a Configure-to-Order szolgáltatást jelenti.
