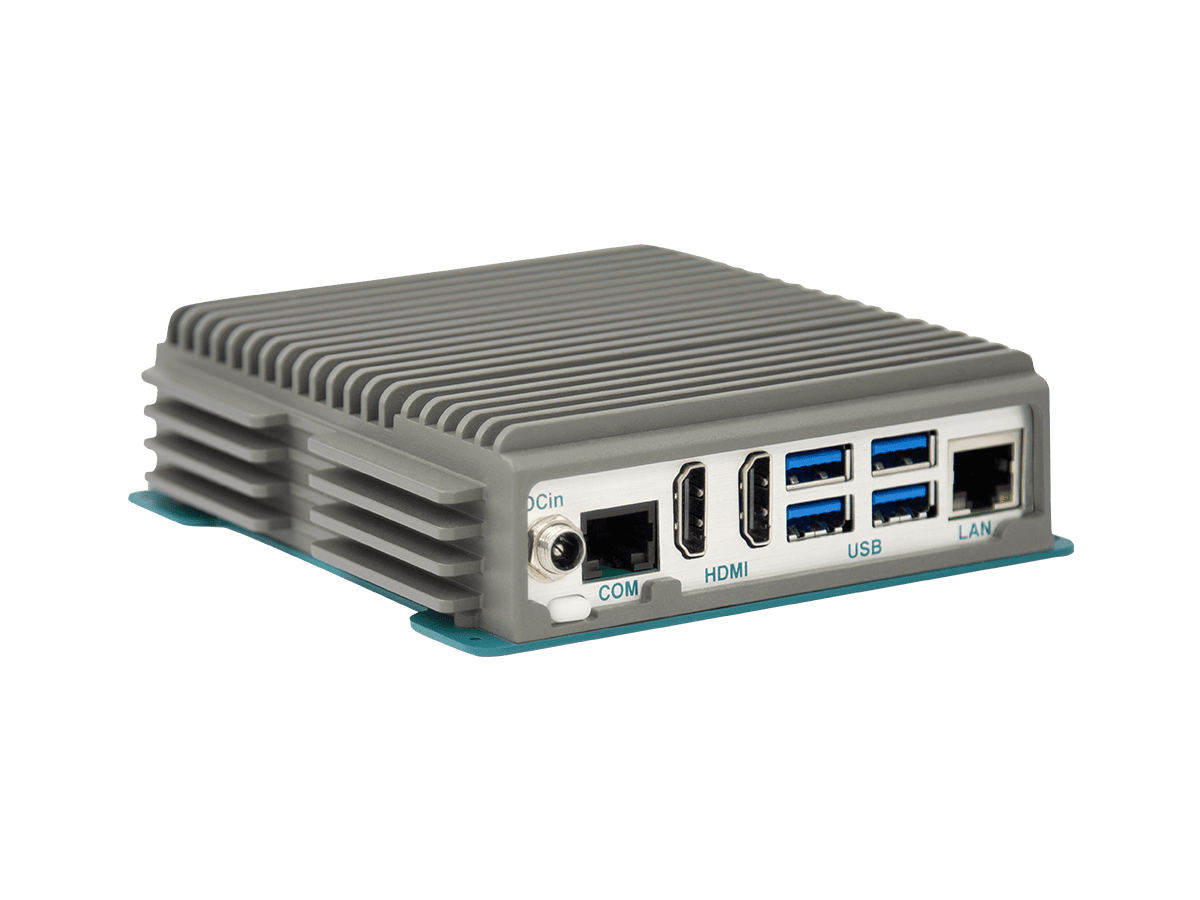

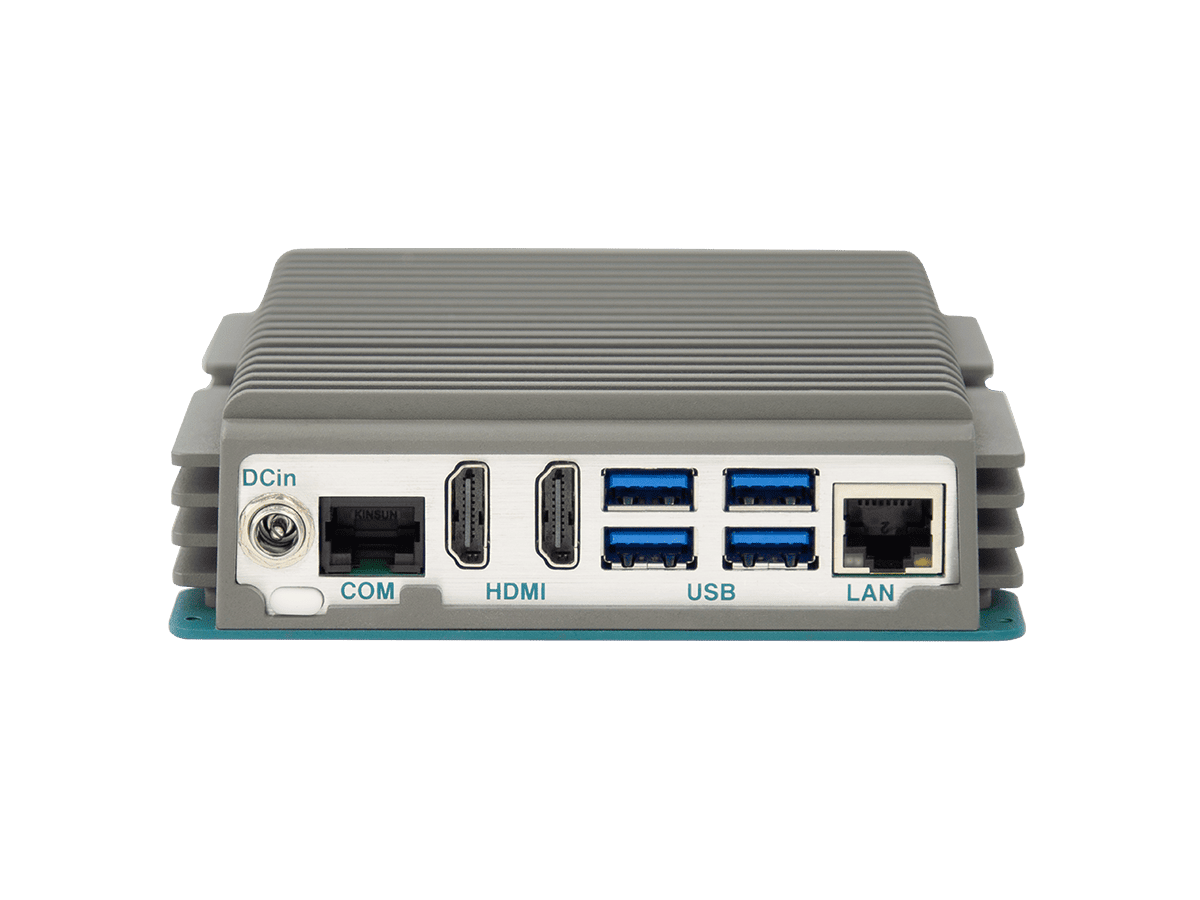

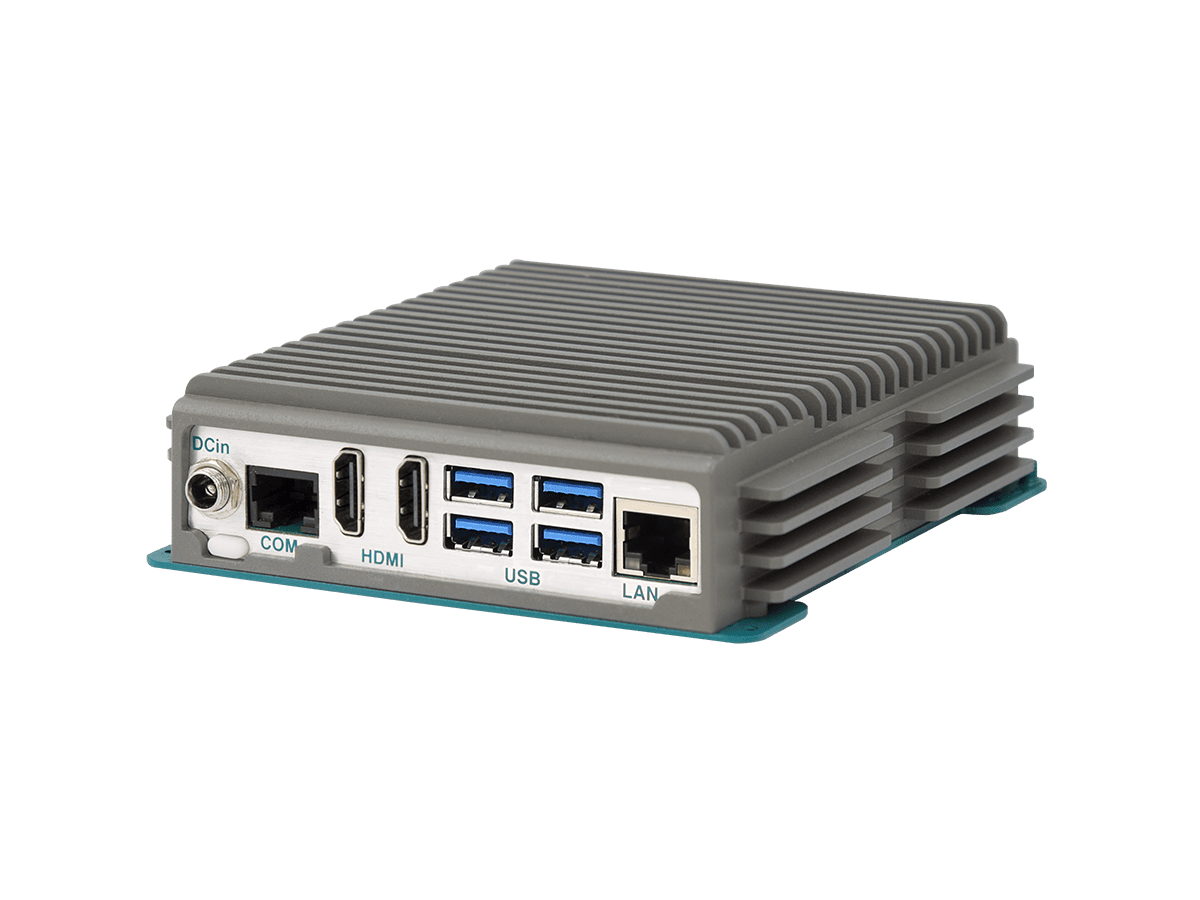

ARBOR IEC-3900
Digital Signage Box PC with 7th Generation Intel® Core™ i7/ i5 processorARBOR IEC-3900 System
| CPU | Soldered onboard 7th Gen. Intel® Core™ i7-7600U 2.8GHz (base)/ 3.9GHz (Turbo); i5-7300U 2.6GHz (base)/ 3.5GHz (Turbo) Processor |
|---|---|
| Memory | 1 x DDR4 SO-DIMM sockets, supporting up to 32GB memory |
| LAN Chipset | 1 x Intel® i219LM PCIe GbE PHY PHY, support vPro & AMT |
| Graphics | Integrated Intel® HD Graphics 620 |
| Watchdog Timer | 1~255 levels reset |
I/O Interface
| USB Port | 4 x USB 3.0 Ports |
|---|---|
| LAN | 1 x RJ-45 ports for GbE |
| Serial Port | 1 x RS-232 port with RJ-45 connector |
| Video Port | 2 x HDMI video outputs, support 4K/60Hz on both HDMI ports simultaneouslly |
Environmental
| Operating Temp. | -20 ~ 70°C (-4 ~ 158°F), ambient w/ air flow |
|---|---|
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 10 ~ 95% @ 70°C (non-condensing) |
| Vibration | 1.0 Grms, IEC 60068-2-64, random, 5 ~500 Hz, 1 Oct./min, 1 hr/axis, operation |
| Shock | Operating 10G (11ms), non-operating 20G |
OS Support
| System | Windows 10 IoT / Linux |
|---|
Storage
| Type | M.2 M-key 2280 socket, supporting SATA SSD up to 128GB |
|---|
Qualification
| Certification | CE, FCC Class A |
|---|
Power Requirement
| Power Input | DC 24V/2A input |
|---|---|
| Power Consumption | Max. 60W |
Mechanical
| Construction | Aluminum alloy |
|---|---|
| Mounting | Wall-mount |
| Weight (approx.) | 0.73 Kg (1.61 lb) |
| Dimensions (W x H x D) | 130 x 35 x 124 mm (5.12” x 1.37” x 4.88”) |
ARBOR IEC-3900 tartozékok
Opcionális tartozékok (*CTOS Kit)
64 GB-os/128 GB-os/1 TB-os M.2 SSD
DDR4 4GB/ 8GB/ 16GB
260-pin DDR4-2400 4GB/ 8GB/ 16GB SO-DIMM
COM Port Cable
RJ-45 to DB-9 male cable
Bracket
IEC-3900 series bracket
*A CTOS a Configure-to-Order szolgáltatást jelenti.
