ARBOR LYNC-817

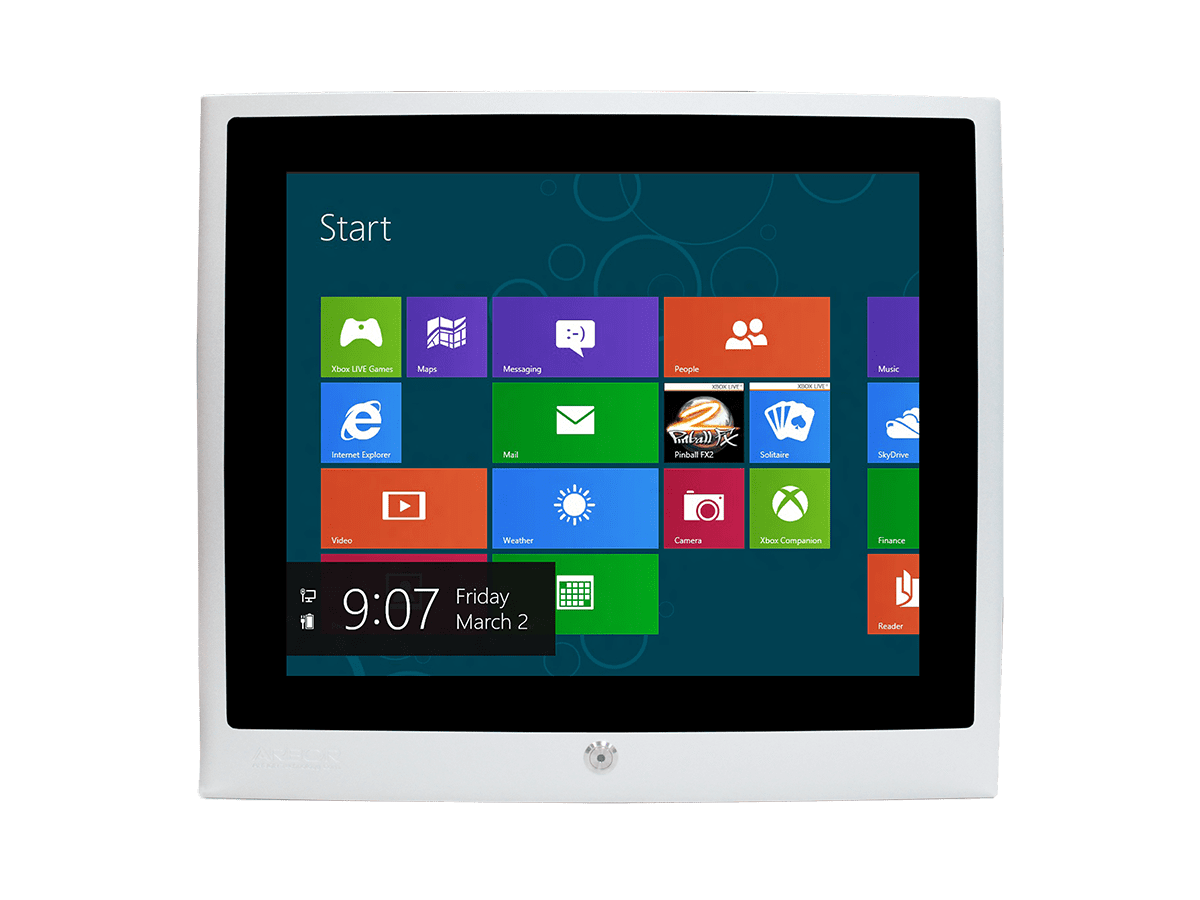

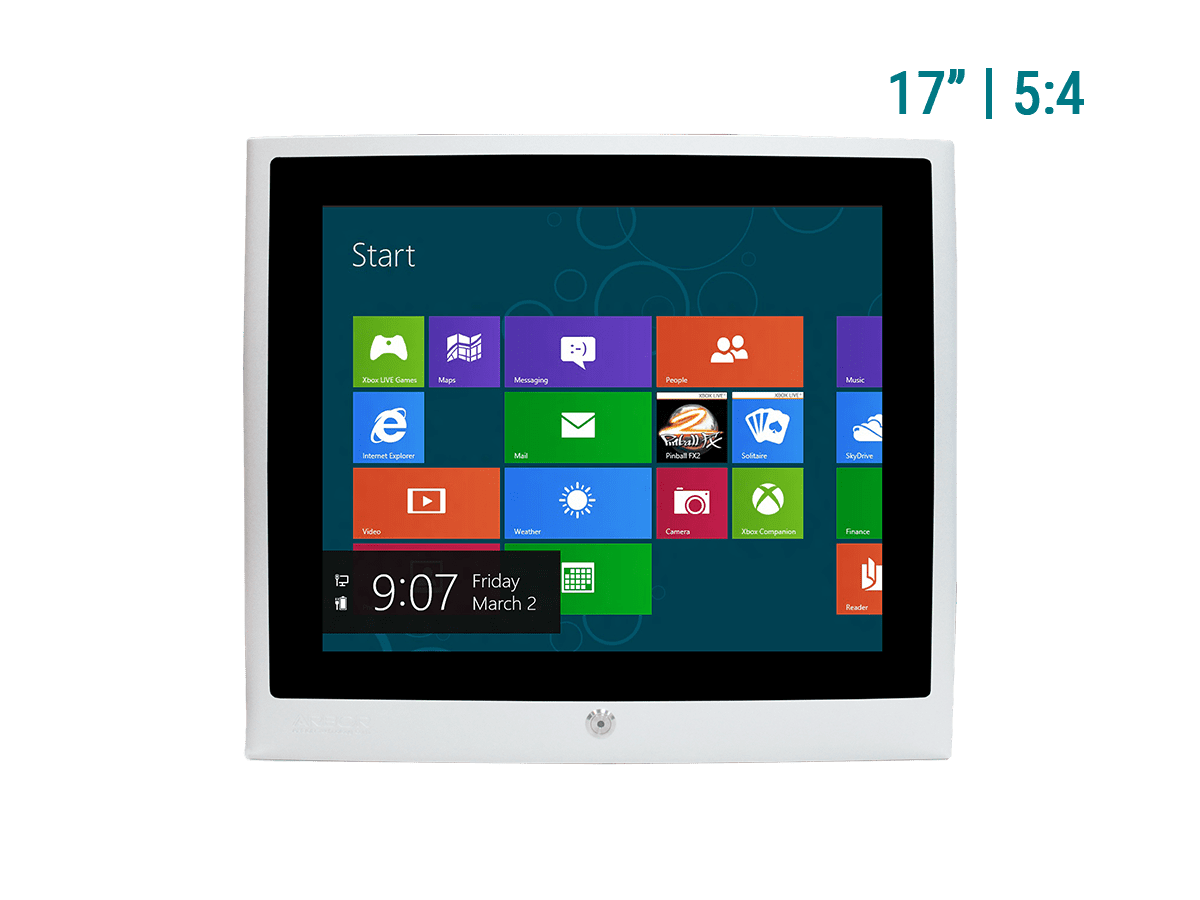

ARBOR LYNC-817 Fanless 17” Industrial Panel PC with Intel® Celeron® Processor J1900System
| CPU | Intel® Celeron® Processor J1900 2.0GHz |
|---|---|
| Memory | 1 x DDR3L SO-DIMM Socket, supporting 1066/1333 MHz SDRAM up to 8GB 1 x 4GB DDR3L SO-DIMM memory module installed) |
| LAN | 2 x Intel® I210AT GbE controllers |
| Watchdog Timer | 1~255 levels reset |
LCD Display
| Size / Type | 17" TFT LCD Panel |
|---|---|
| Max. Resolution | 1280 x 1024, SXGA |
| Max. Colors | 16.2M |
| Luminance | 350 cd/m² |
| Touch Screen | 5-wire Analog resistive |

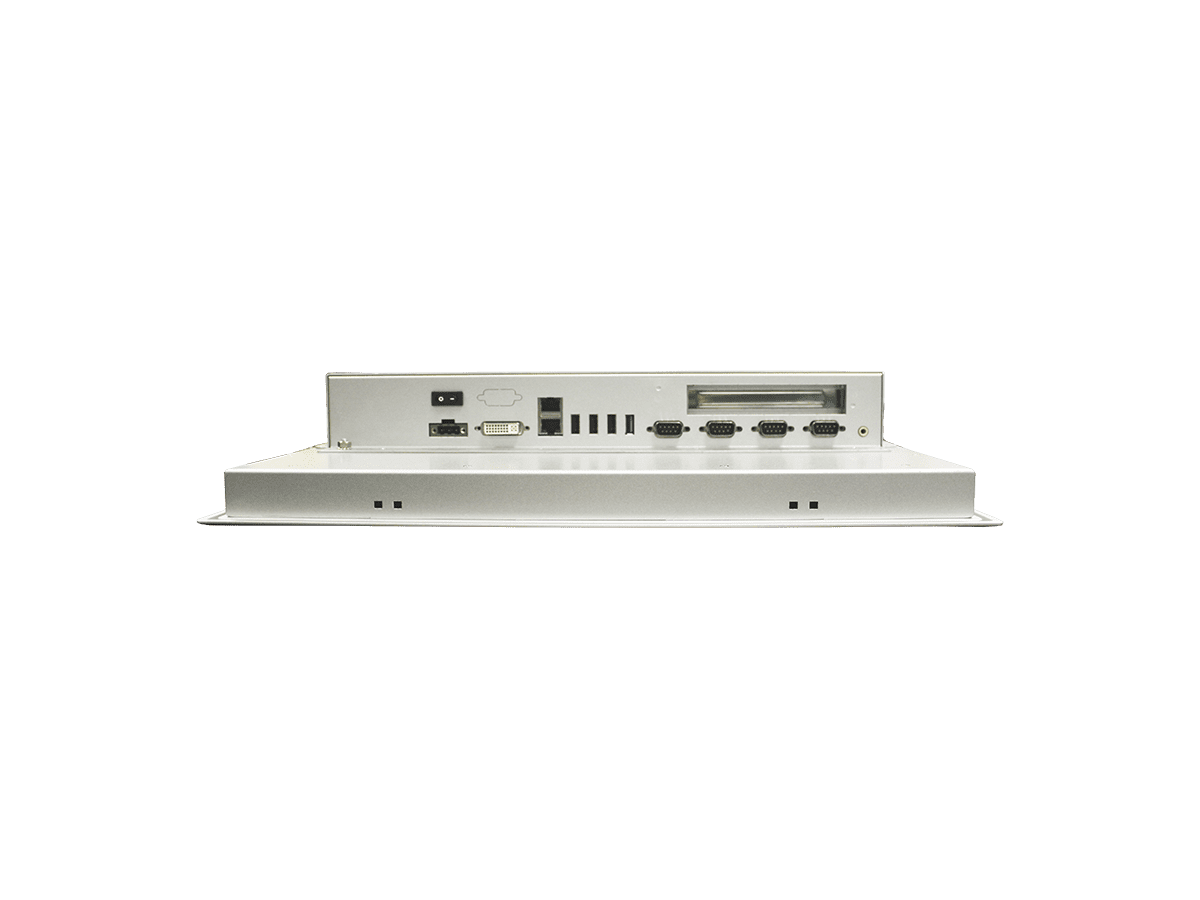

External I/O
| Serial Ports | 2 x RS-232 and 2 x RS232/485 ports with auto-flow design, all are DB9 connectors |
|---|---|
| USB Ports | 1 x USB 3.0 Type-A USB port 3 x USB 2.0 Type-A ports |
| LAN | 2 x RJ-45 GbE ports |
| Video Ports | 1 x DVI-I connector |
| Wi-Fi | 2 x SMA antenna holes for optional Wi-Fi function |
| Audio | Line-out |
Storage
| 1st Device | 1 x outside-accessible CFast slot |
|---|---|
| 2nd Device | 1 x outside accessible 2.5” Drive Bay (Deault), or CFast slots (optional) |
Button & Indicator
| Function Key | Power on/off |
|---|---|
| LED Indicator | Power on LED |
Power System
| Power Input | DC 9 ~ 36V |
|---|---|
| Power Consumption | Max. 28.0W (w/o I/O cards) |
Mechanical

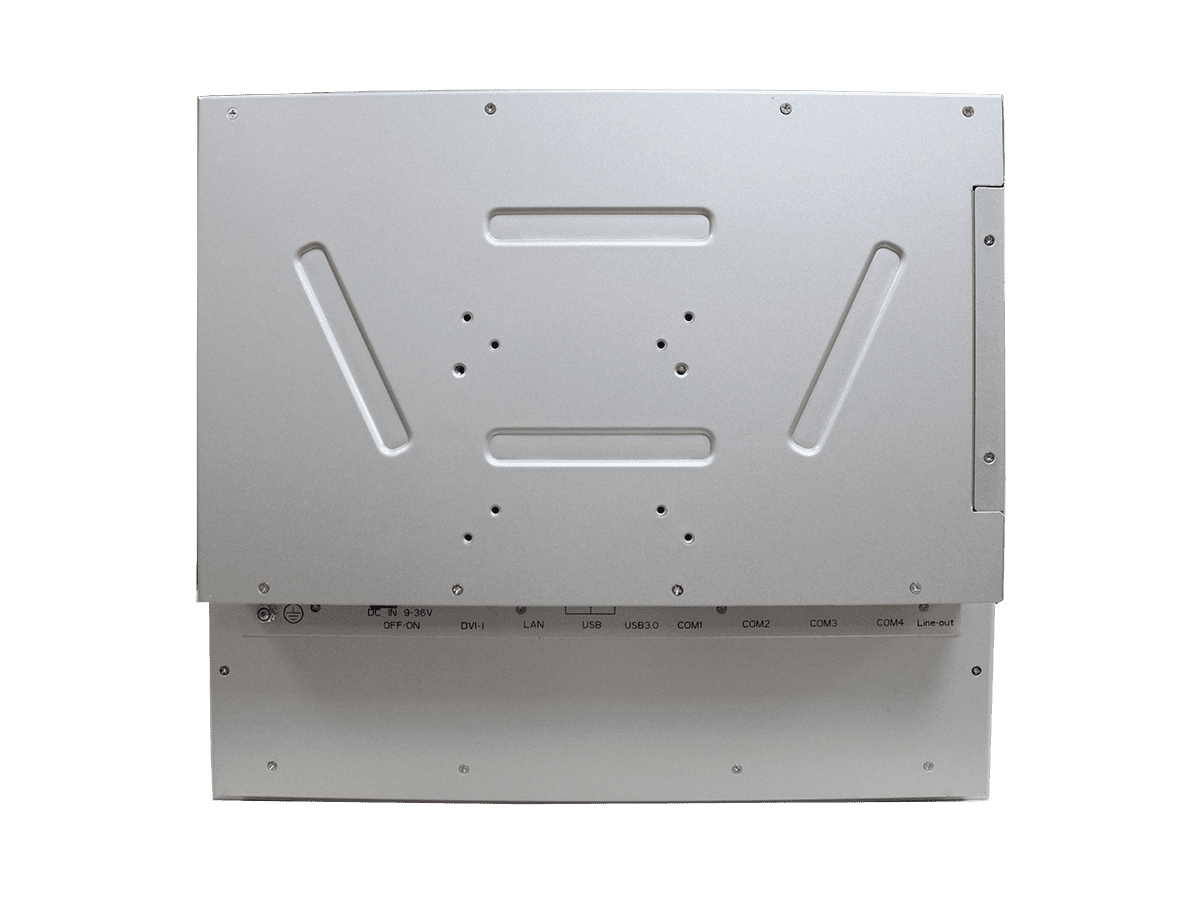

| Mounting Type | Panel mount, VESA-75 / 100 mounting |
|---|---|
| Chassis | Panel-mounting chassis, aluminum front bezel and SECC steel chassis |
| Weight (Net) | 3.4 kg (without VESA bracket) |
| Dimensions (W x H x D) | 389.93 x 309.93 x 46.80 mm (15.4” x 12.2” x 2.37”) |
Environmental
| Operating Temp. | -0ºC ~ 55ºC (-32 ~ 131°F) |
|---|---|
| Storage Temp. | -10ºC ~ 75°C (-50 ~ 167°F) |
| Operating Humidity | 10 ~ 95% RH @ 55°C (non-condensing) |
| Vibration | 5 ~ 500Hz, 2Grms X,Y,Z axis (with CFast/SSD) |
| Shock | Operating 10G, 11ms, Non-operating 30G, 11ms (with CF/SSD) |
Expansion
| Expansion Bus | 1 x Mini-card socket (full-size)(USB only) 1 x PCI 32-bit slot (default) or 1 x PCIe x1 slot (both Riser Cards are included in Standard Accessories) |
|---|---|
| Optional | 1 x semi-piercing DB9 hole reserved |
Qualification
| Certification | CE, FCC Class A |
|---|
OS Support
| System | W7 Pro / WS7E / W8.1 Industry / Win10 |
|---|
ARBOR LYNC-817 tartozékok
Standard tartozékok
PAC-60W6A-FSP-ES
12V/5A 60W-os AC/DC adapterkészlet
Opcionális tartozékok (CTOS* kit)
64 / 128 / 256GB SSD
2.5" SSD MLC 64 / 128 / 256GB
WiFi-AT4550
Atheros, QCNFA324 Wi-Fi module w/ 2*30cm internal wiring
ANT-D11
1 x Wi-Fi Dual-band 2.4G / 5G antenna
SCK-722C
Assembly kit for SiP-41B/42B
MM-3C-4G
4GB DDR3-1333 SDRAM
ELPP-0101-C224
PCIe x 1 to mPCIe adapter card (inserted to PCIe x 1 Riser card for optional WiFi module installation)
* A CTOS a Configure-to-Order Service (Megrendelésre konfigurálás szolgáltatás) rövidítése.
