ARBOR SB-244-RPLU

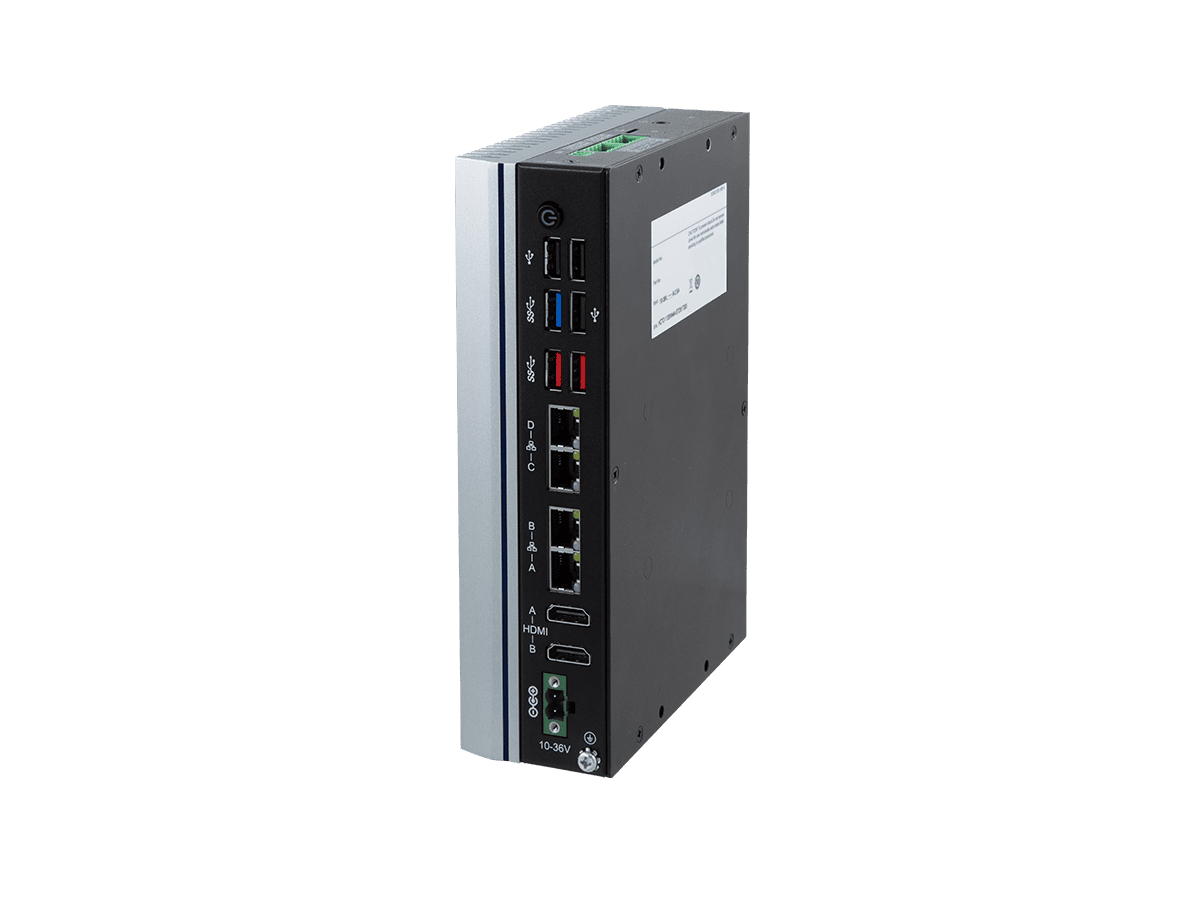

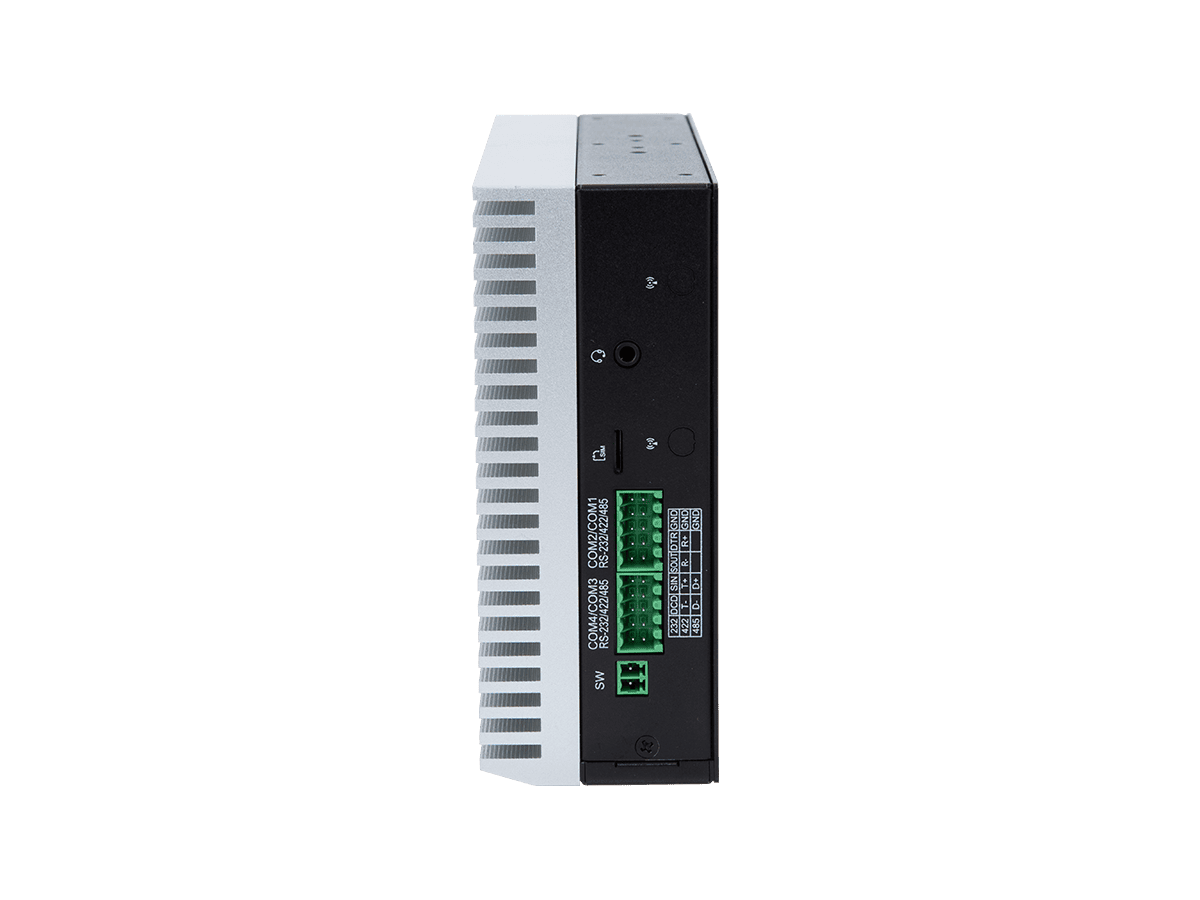

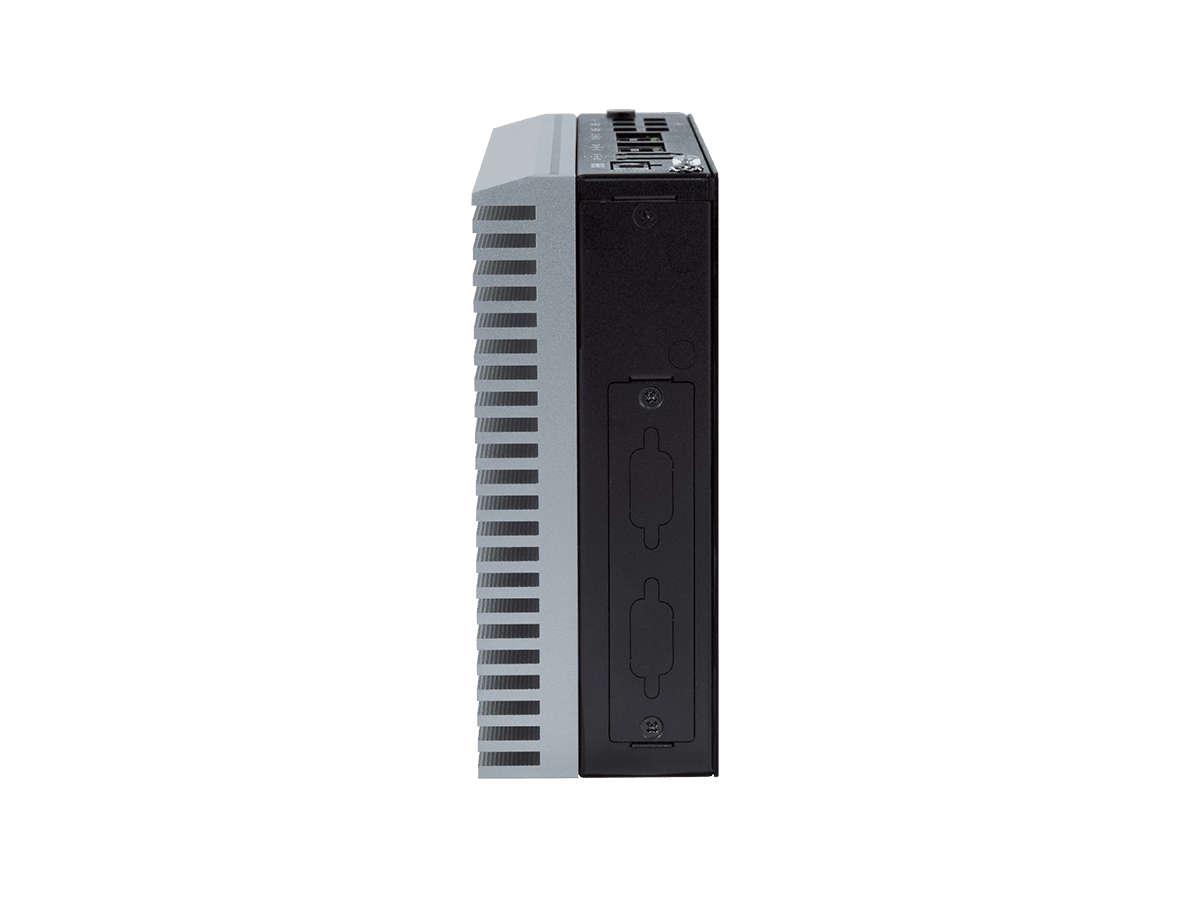

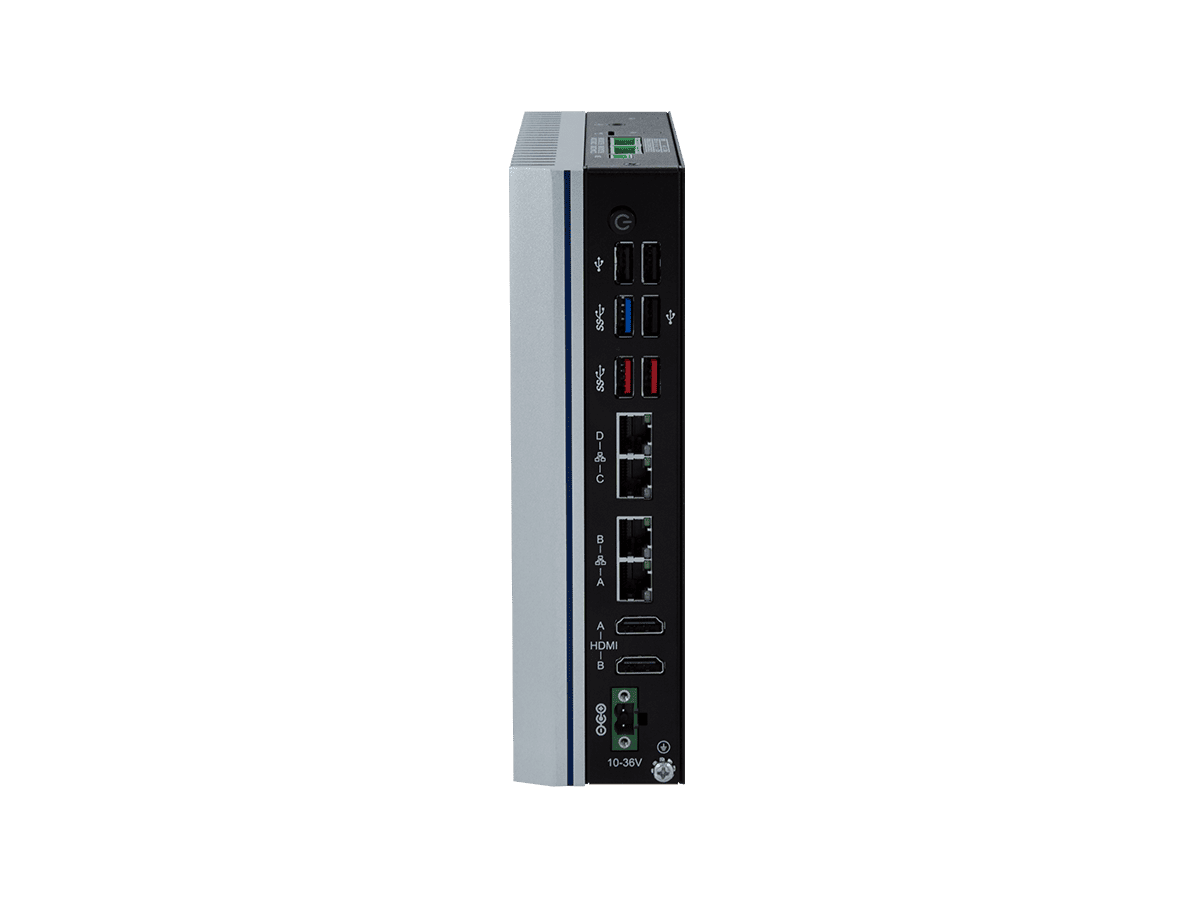

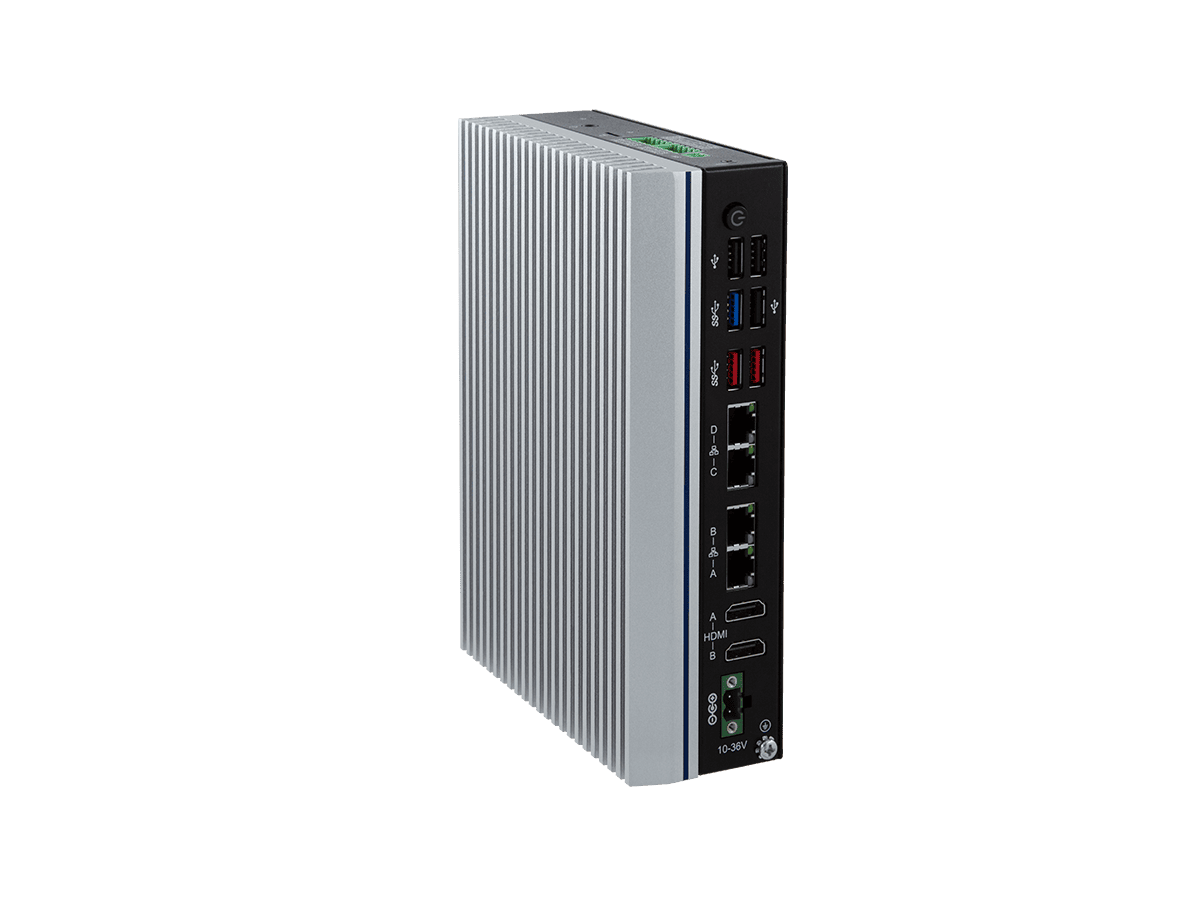

Industrial Fanless Rugged Controller w/ Intel® 13th Raptor Lake U Series Processor & Discrete TPMARBOR SB-244-RPLU System
| CPU | 13th Generation Intel® Core i7/ i5/ i3 Processors (Raptor Lake U series) |
|---|---|
| Memory | 1 x 262-pin DDR5 SO-DIMM sockets, supporting 4800 MHz SDRAM up to 32GB |
| Chipset | Integrated in CPU |
| Graphics | Intel® UHD Graphics for 13th Gen. Processors |
| LAN Chipset | 1 x Intel® I219-LM GbE PHY 3 x Intel® I226-V 2.5GbE controllers |
| Watchdog Timer | 1~255 levels reset |
| TPM | Nuvoton NPCT760AABYX TPM 2.0 chip |
ARBOR SB-244-RPLU External I/O
| Serial Ports | 4 x RS232/422/485(default as RS232) with auto flow control (5-pin phoenix terminal head interface) |
|---|---|
| USB Ports | 3 x USB3.2 3 x USB2.0 |
| LANs | 4 x RJ45 |
| Video Ports | 2 x HDMI® (Max Resolution: 4096 x 2304@60Hz) |
| Power Button | 1 x Power button w/ LED |
| Remote on-off | 1 x SW |
ARBOR SB-244-RPLU Internal I/O
| Expansion Slot | 1 x full-size Mini PCIe (PCIe x1 / USB2.0 Signals) 1 x M.2 E-key 2230 slot (PCIe x1 / USB2.0 Signals) 1 x M.2 M-key 2280 NVMe (PCIe x4 Signals) 1 x M.2 B-key 2242 SATA SSD or 3042/3052 cellular module (USB3.2 Signals) [Note: M.2 2242 SSD, M.2 3042, M.2 3052 share one card slot, only one of the cards can be inserted] |
|---|---|
| SIM Card | 1 x SIM card socket for 4G/5G module |
| USB Port | 2 x USB2.0 by Pin head |
| COM Port | 2 x RS232 by 3-wire Pin head |
| GPIO | 1 x 8bit programmable GPIO Pin header (3.3V / 5V jumper voltage adjustable) |
ARBOR SB-244-RPLU Storage
| Device | 1 x M.2 B Key 2242 slot (SATA signal) 1 x SATA 3.0 (2.5” HDD/SSD Drive Bay)(Note: Both M.2 2242 and 2.5” support RAID 0/1 by BIOS configuration) 1 x M.2 M Key 2280 slot (PCIe x4 signals [NVMe]) *CTOS is available |
|---|
Audio
| Type | 1 x Audio (Line-out & Mic-in)(Chipset ALC888S/897) |
|---|
Power
| Power Input | 10-36V DC, 2-pin phoenix connector |
|---|
OS
| Type | Windows 10/11, Ubuntu 22.04 |
|---|
Qualification
| Certification | CE, FCC |
|---|
Mechanical
| Construction | Aluminum Alloy |
|---|---|
| Mounting | Wall-mount, Din Rail |
| Dimensions | 200 x 140 x 55.7 mm |
| Weight (Net) | 1.8 kg |
Environmental
| Operating Temp. | -20 ~ 60°C (-4 ~ 140°F), ambient w/ air flow (WT RAM & SSD) |
|---|---|
| Storage Temp. | -40 ~ 85°C (-40 ~ 185°F) |
| Operating Humidity | 10 ~ 95% @ 40°C (non-condensing) |
| Vibration | 5~500Hz, 2Grms operation |
| Shock | Operation: 10G@11ms Non-operation: 30G@11ms |
Packing List
| SB-244-113XXX | 1 pcs BOX PC |
|---|---|
| Wall mount bracket | 2 pcs |
| DIN-Rail Kit | 1 pcs |
| Thermal PAD | 1 pcs for Memory 2 pcs for M.2-2242/3042 |
| 2-pin terminal block | 1 pcs 5mm for Power-input, 1 pcs 3.5mm for Remote on-off SW |
| DIP-10 Terminal block | 2 pcs for serial ports |
| Screw package | 1 pcs |
| 22-pin SATA & Power cable | 150mm, 1 pcs |
