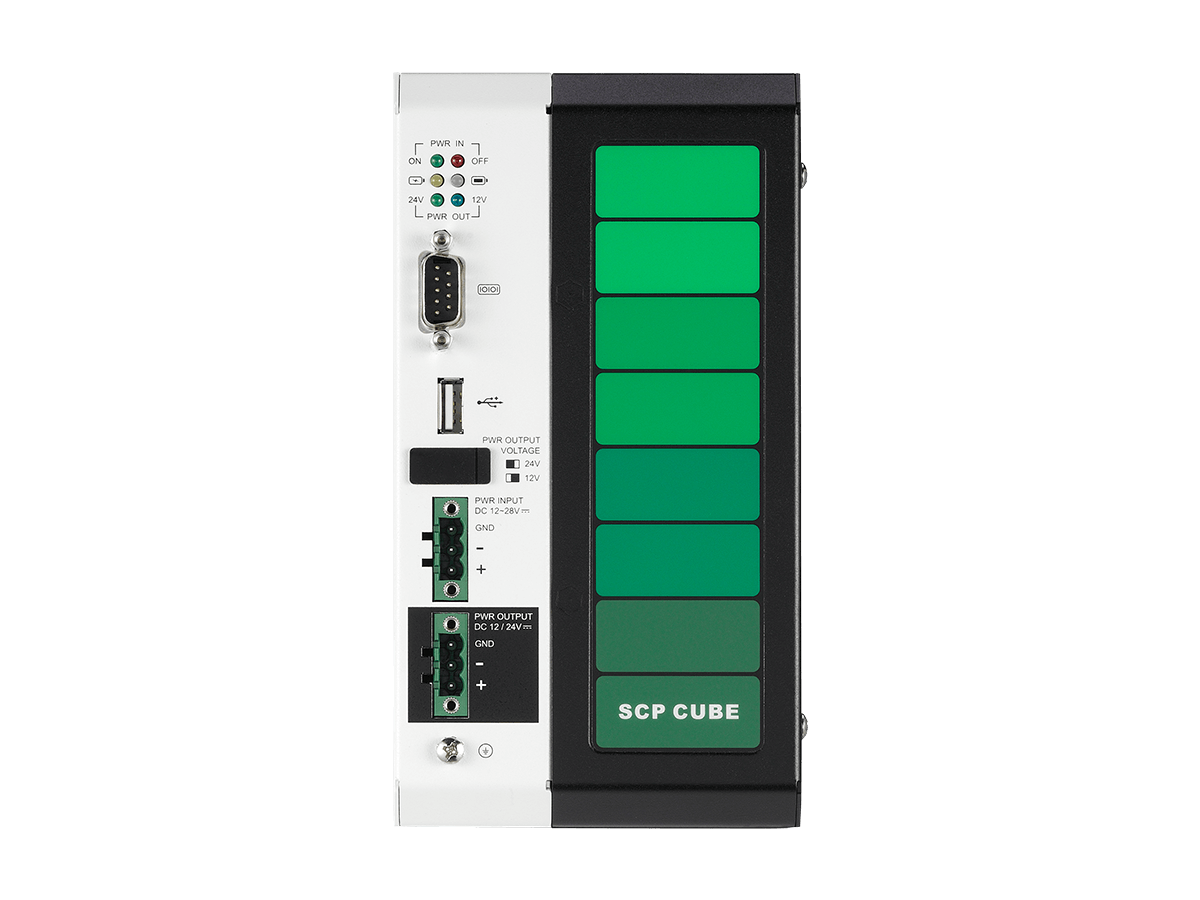

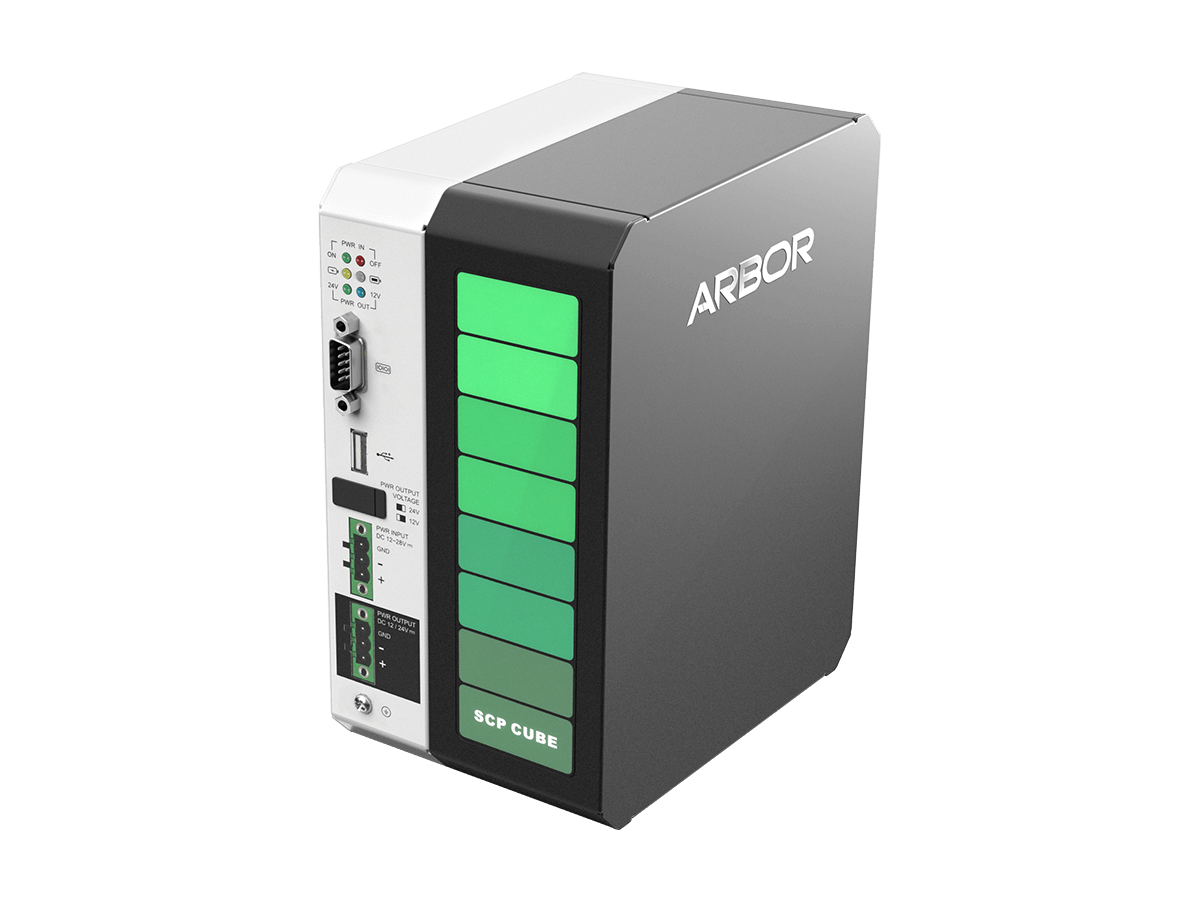

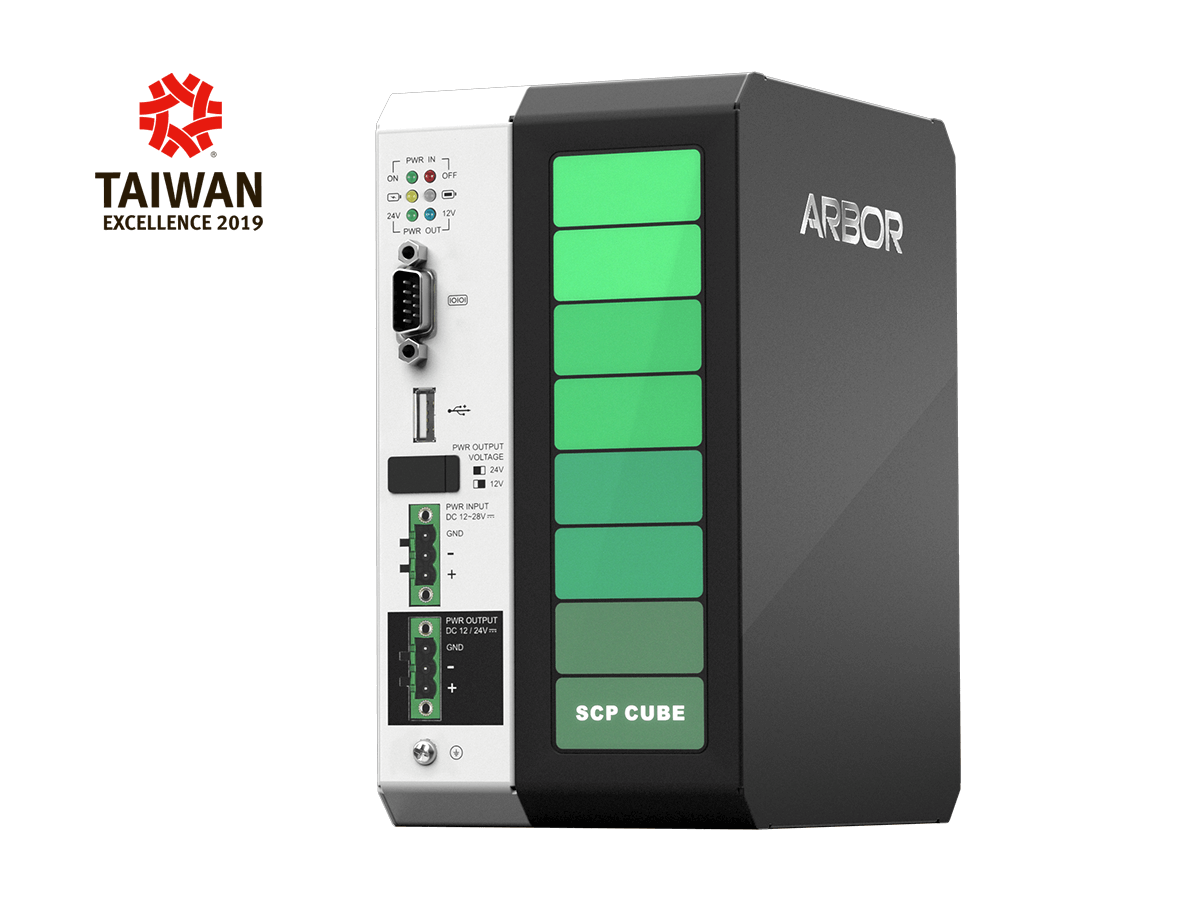

ARBOR SCP CUBE

ARBOR SCP CUBE New-Generation Supercapacitor Industrial Power Backup Solution

Jellemzők:

  • Designed for industrial box PC & panel PC
  • Maintenance free supercapacitors
  • Safe and reliable; no danger of fire or explosion
  • No danger of overcharging
  • Fully discharged for safety
  • Environmentally friendly without hazardous materials
  • Wide operating temperature range (-20°C to 70°C)
  • Multi-function control utility

Cikkszám: ARBOR-SCP-CUBE Kategóriák: , , Címkék: , , , Márka:

Leírás

ARBOR SiPB-1690

Smart Industrial UPS Board

SCP CUBE System

CPU High Current Super CAP Backup Controller

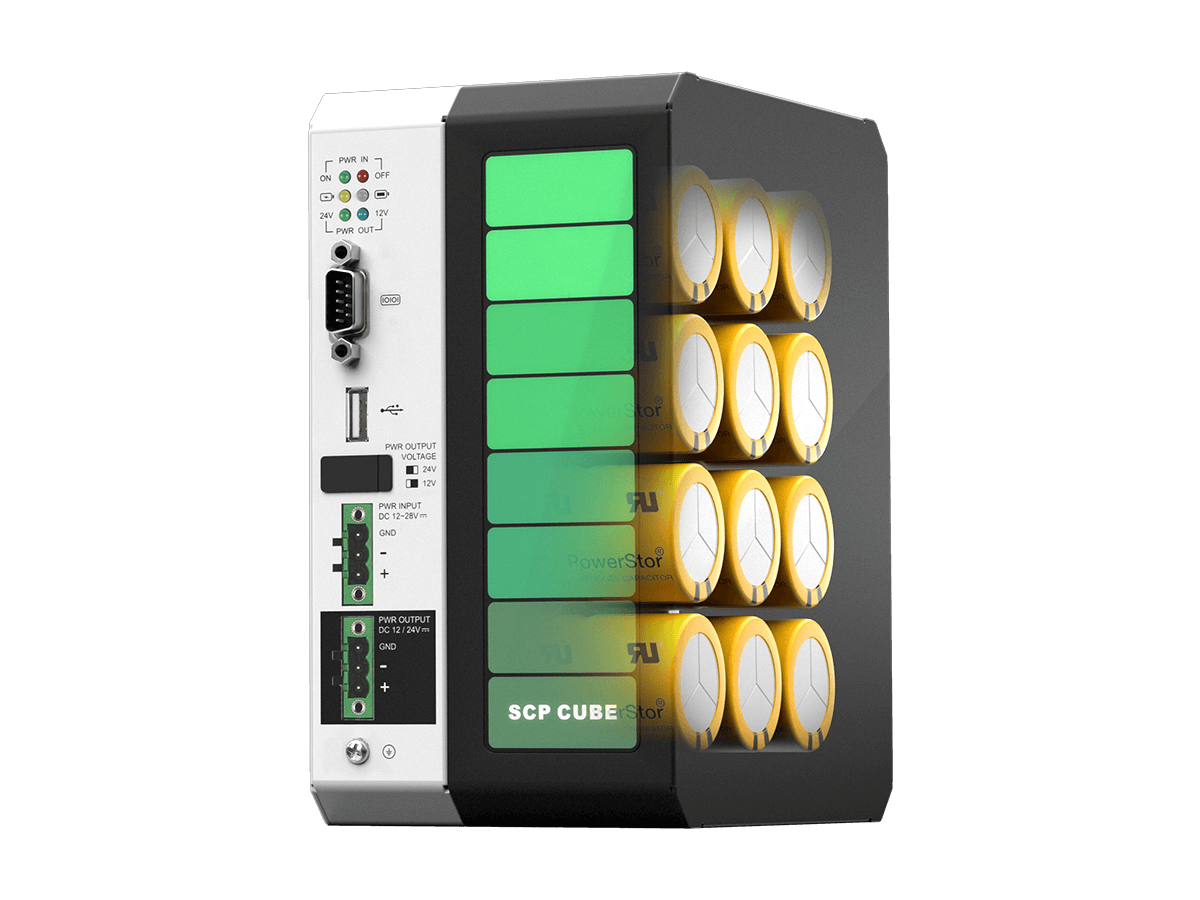

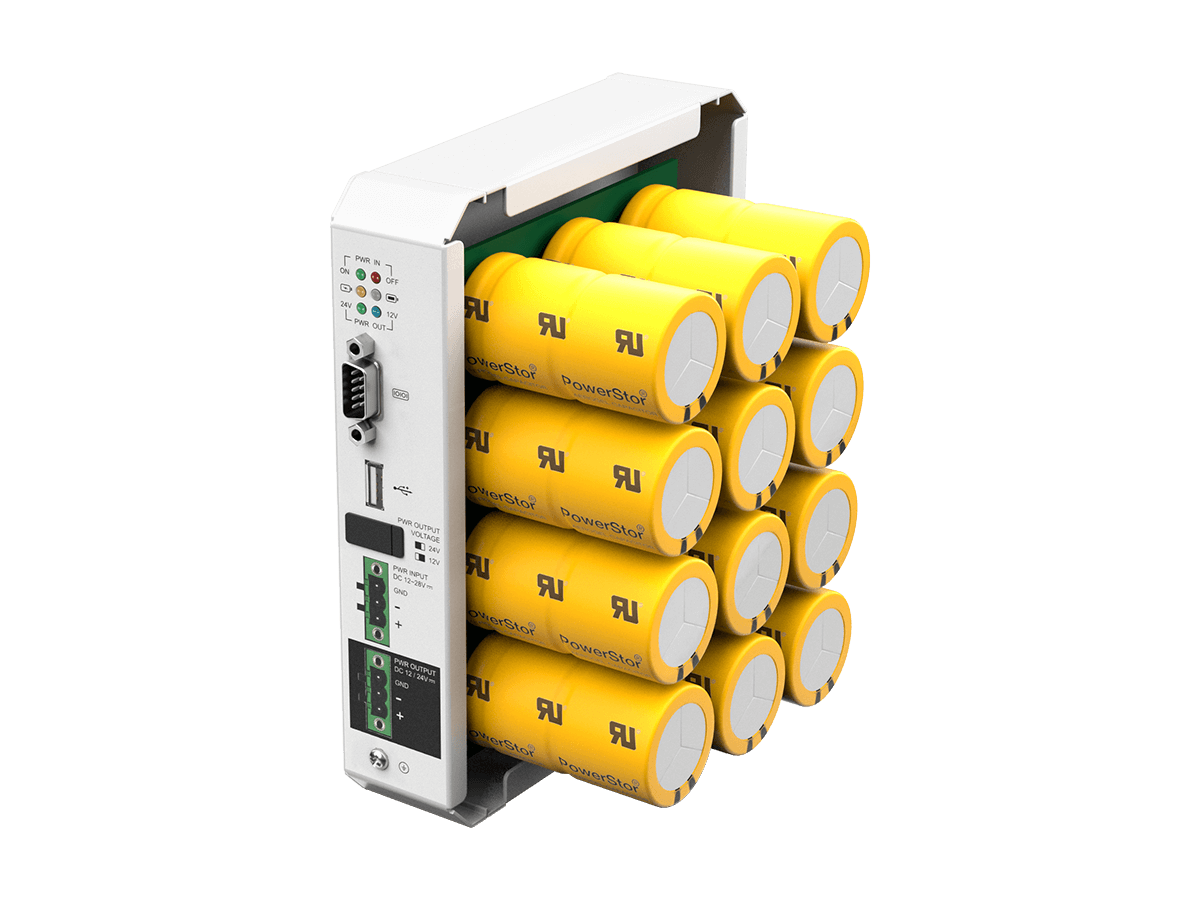

SCP CUBE Supercapacitor

Capacity 100 Farads / each

OS Support

System Windows 7/10/11

Power Requirement

Power Input DC +12/24V input
Output voltage backup mode DC +12/24V, selectable via jumper
Output voltage normal mode DC +12/24V
Power Output Max. 60W
Power Management Powered device reboot via software

I/O Interface

Power Input 1 x Power in, ATX-4 connector
Power Input 1 x Power out, ATX-2 connector
Switch for Power Output 1 x Jumper
USB 1 x 4-pin box header

Mechanical

Weight (Net) SiPB-1690A: 185g (0.41lb)
SiPB-1690B: 285g (0.63lb)
Dimensions (W x H x D) SiPB-1690A: 160 x 88 x 22.2 mm
SiPB-1690B: 160 x 88 x 44.7 mm

Environmental

Operating Temp. -20ºC ~ 70ºC (-4ºF ~ 140°F)
Storage Temp. -30ºC ~ 80°C (-22°F ~ 176°F)
Operating Humidity 10 ~ 95% RH @ 70°C (non-condensing)

Nominal backup time, measured at +25 °C

SiPB-1690A 30W ~ 33sec ; 60W ~ 16sec
SiPB-1690B 30W ~ 66sec ; 60W ~ 32sec

ARBOR SCP CUBE tartozékok

Standard tartozékok

Cable Kit

1 x USB to USB cable, 1 x RS-232 DB9 to DB9 cable
2 x 3-pin plug for terminal block
Megjegyzés: Az USB-COM illesztőprogram és az SCP Cube segédprogram letöltéséhez látogasson el az ARBOR webhelyére, és keresse meg az SCP Cube illesztőprogram-oldalát.
