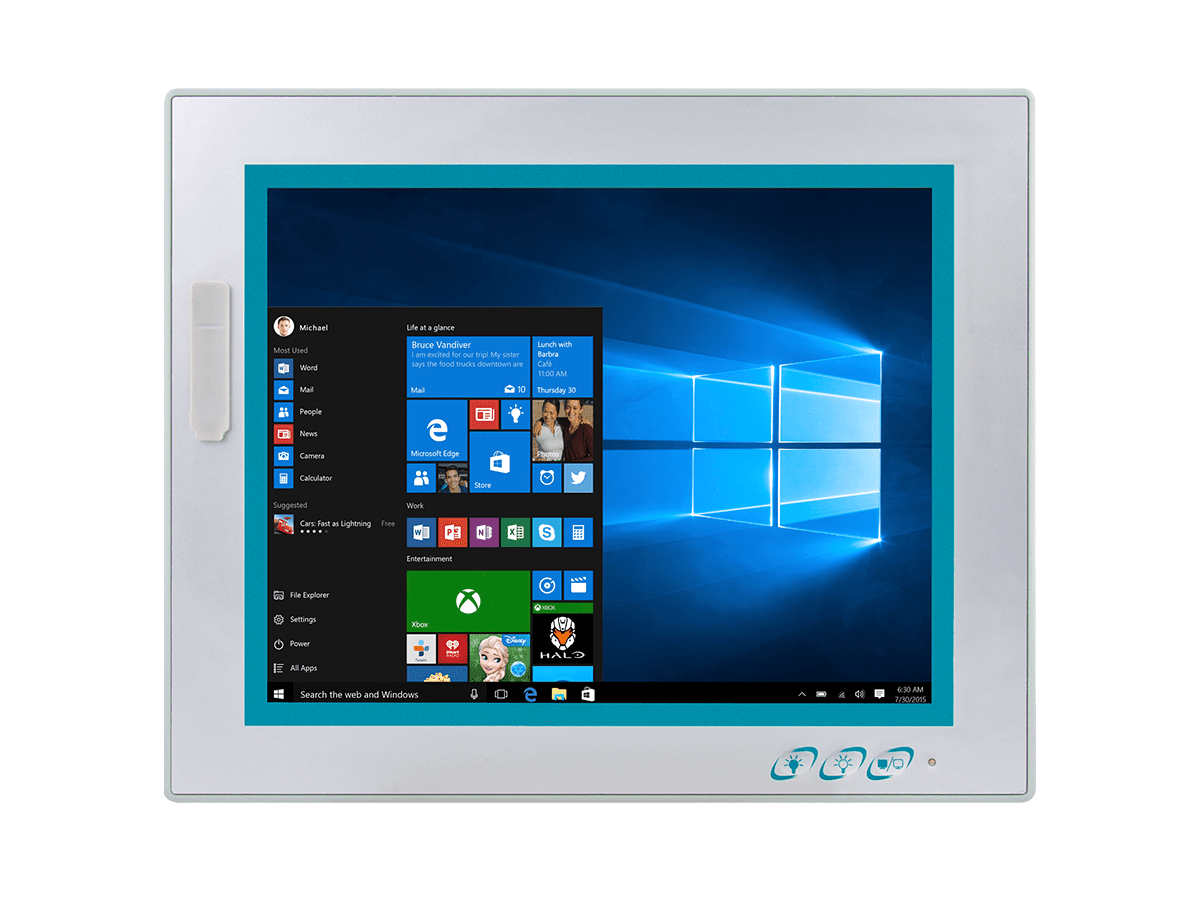

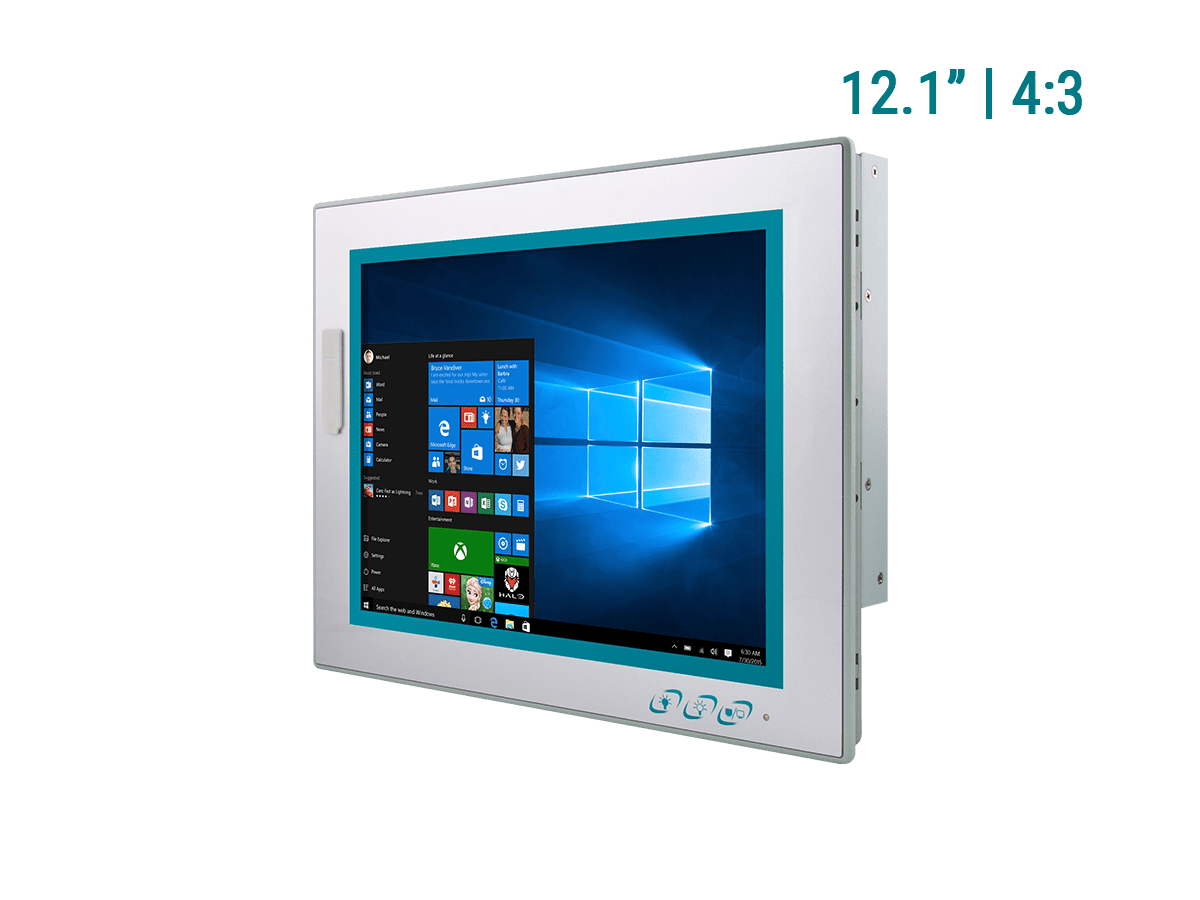

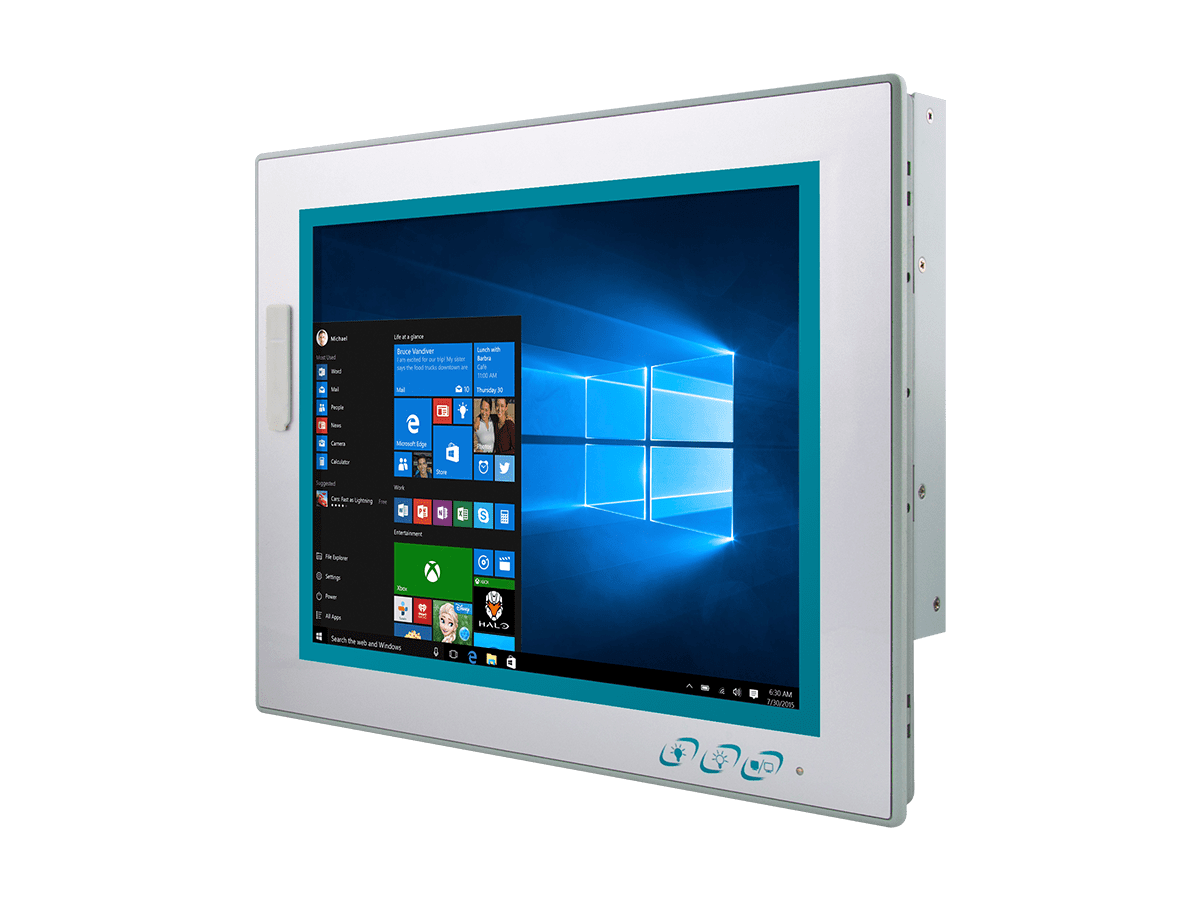

ARBOR LYNC-712-1900G4
ARBOR LYNC-712-1900G4 Fanless 12.1" Industrial Panel PC with Intel® Celeron® Processor J1900System
| CPU | Intel® J1900 Quad-Core™ Processor 2.0GHz |
|---|---|
| Memory | 1 x 4GB DDR3 SO-DIMM memory module (installed) |
| LAN | 2 x Realtek® 8111E GbE controllers |
| Watchdog Timer | 1~255 levels reset |
LCD Display
| Size / Type | 12.1" TFT LCD Panel |
|---|---|
| Max. Resolution | 1024 x 768, XGA |
| Max. Colors | 16.7M |
| Luminance | 350 cd/m² |
| Touch Screen | 5-wire Analog Resistive |
| View Angle (U/D/R/L) | 80°/ 80°/ 80°/ 80° |

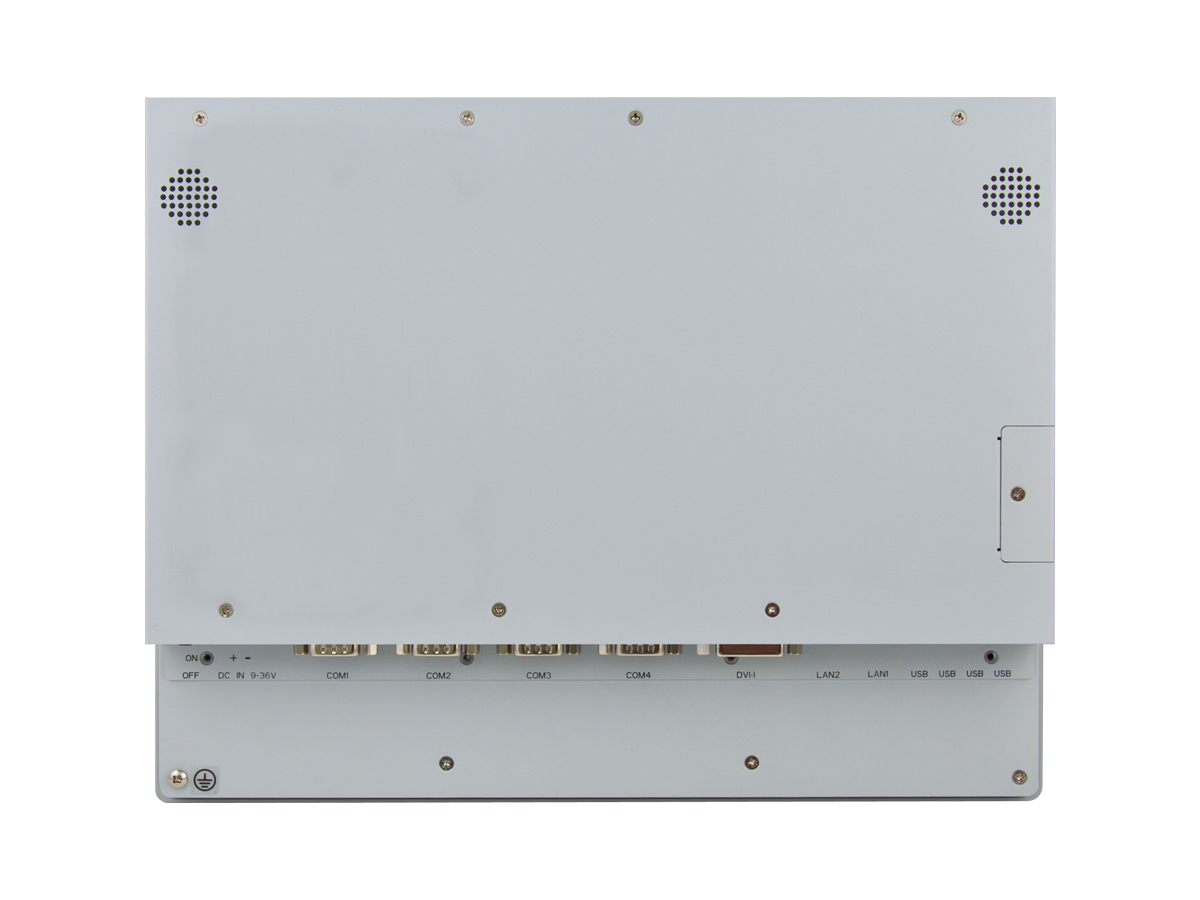

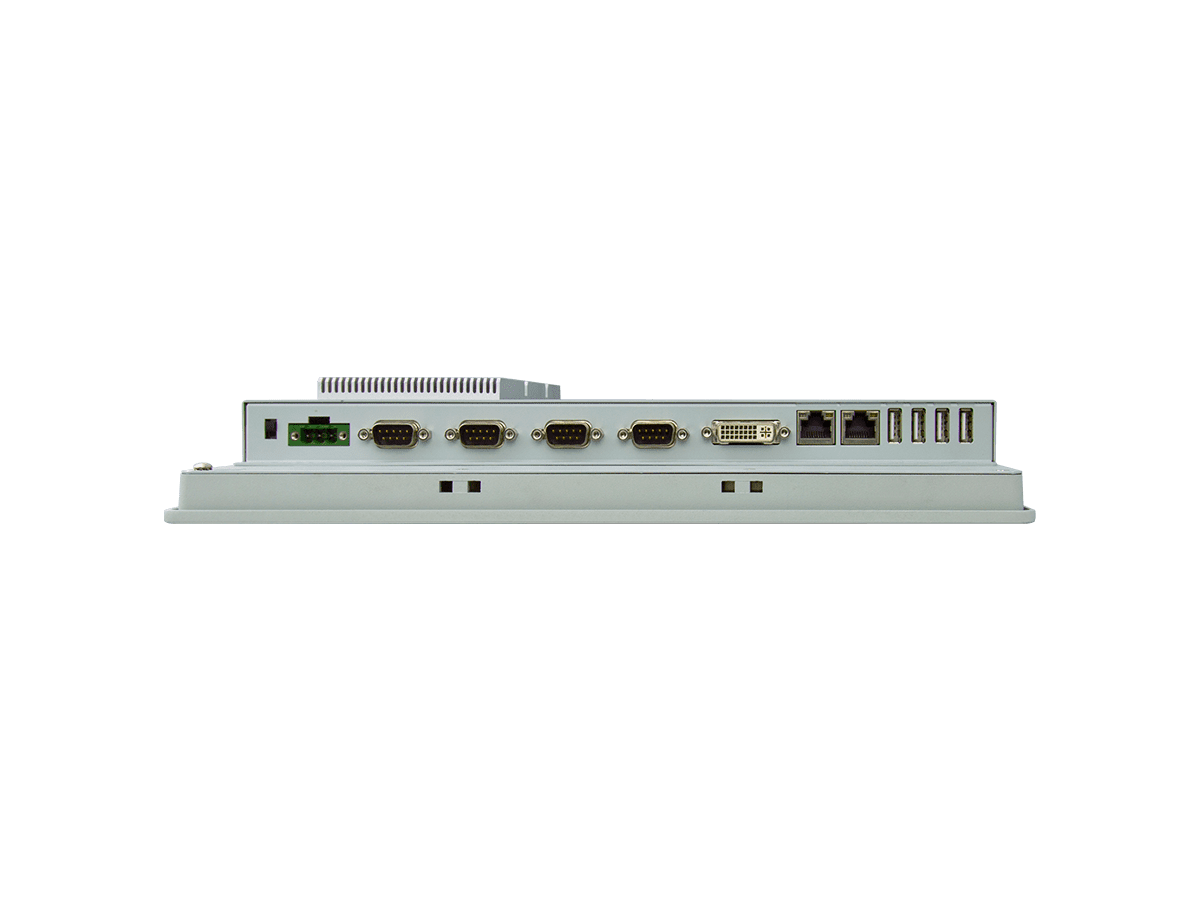

External I/O
| Serial Ports | 4 x DB-9 connectors for COM1~4 (COM1 ~ COM4 are RS-232/485 configurable) |
|---|---|
| USB Ports | 4 x Type-A USB 2.0 ports (rear) 1 x Type-A USB 2.0 port with rubber cover on front bezel |
| LAN | 2 x RJ-45 GbE ports |
| Video Ports | 1 x DVI-I connector |
| Wi-Fi | 2 x SMA antenna holes for optional Wi-Fi function |
Storage
| 1st Device | 1 x outside-accessible CFast slot |
|---|---|
| 2nd Device | 1 x 2.5” drive bay |
Audio
| Speaker | 2 x 1.5W speakers (optional) |
|---|
Button & Indicator
| Function Key | Brightness up/down, Screen on/off |
|---|---|
| LED Indicator | Power on LED |
Power System
| Power Input | DC 9 ~ 36V |
|---|
Mechanical
| Mounting Type | Panel mount, VESA-75 / 100 mounting |
|---|---|
| Chassis | Panel-mounting chassis, aluminum front bezel and SECC steel chassis |
| Weight (Net) | 2.2 kg (without VESA bracket) |
| Dimensions (W x H x D) | 325.89 x 258.86 x 44.00 mm (12.8” x 10.2” x 2.26”) |
Environmental
| Operating Temp. | -20 ~ 55ºC (-4 ~ 131°F) |
|---|---|
| Storage Temp. | -20 ~ 70ºC (-4 ~ 158ºF) |
| Operating Humidity | 10 ~ 95% RH @ 55°C (non-condensing) |
| Vibration | 5 ~ 500Hz, 2Grms X,Y,Z axis (with CFast/SSD) |
| Shock | Operating 20G, 11ms X,Y,Z axis (with CFast/SSD) |
Qualification
| Certification | UL, CE, FCC Class A |
|---|
Expansion
| Expansion Bus | 1 x Mini-card socket (Full Size) |
|---|
OS Support
| System | Windows 7 / Windows 8.1 / Windows 10 / Linux (Kernel: 3.1X) |
|---|
ARBOR LYNC-712-1900G4 tartozékok
Standard tartozékok
PAC-60W6A-FSP-ES
12V/5A 60W-os AC/DC adapterkészlet
VMB-712
LYNC-712 VESA-mount bracket kit, w/ 75 x 75 mm & 100 x 100 mm VESA supports
Opcionális tartozékok (CTOS* kit)
64 / 128 / 256GB SSD
2.5" SSD MLC 64 / 128 / 256GB
WiFi-AT4550
Atheros, QCNFA324 Wi-Fi module w/ 2*30cm internal wiring
ANT-D11
1 x Wi-Fi Dual-band 2.4G / 5G antenna
ADK-712
LYNC-71x audio kit
SCK-722C
Assembly kit for SiP-41B/42B
(Note: SCK-722C can only be installed with VMB-712 Mounting Bracket)
(Note: SCK-722C can only be installed with VMB-712 Mounting Bracket)
* A CTOS a Configure-to-Order Service (Megrendelésre konfigurálás szolgáltatás) rövidítése.
