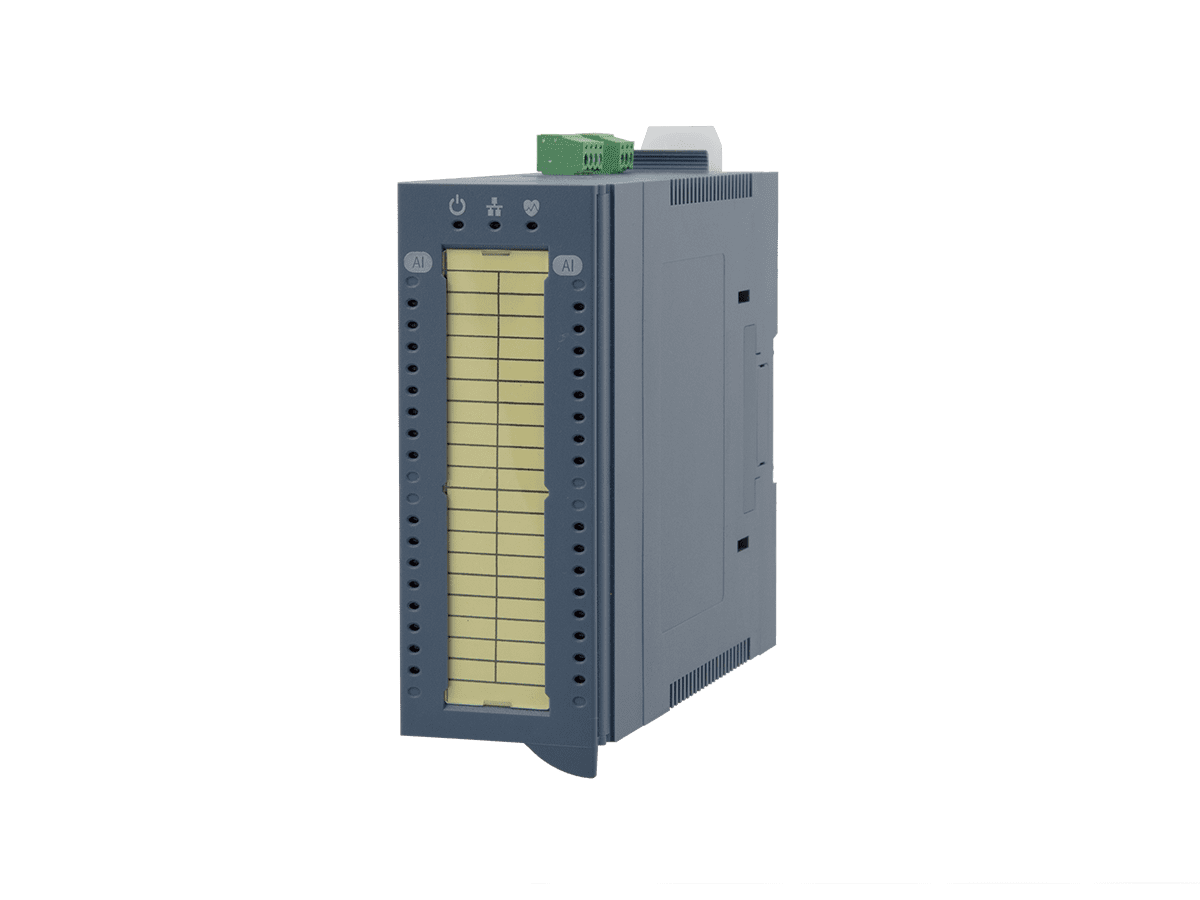

ARBOR W-M1B502 16 Channels Digital Input / 8 Channels Relay Output Module

Jellemzők:

  • Support Dry / Wet contact
  • Input Resistance 10KΩ
  • Relay Output Channel 4 Form A, 4 Form C
  • Communication Protocol: Modbus RTU

Cikkszám: ARBOR-W-M1B502 Kategóriák: , , Címkék: , , , Márka:

Leírás

ARBOR W-M1B502

16 Channels Digital Input / 8 Channels Relay Output Module

Digital Input

Channel 16 Channels
Over-Voltage Protection 70 VDC
Frequency Range 100 Hz (16 bit)
Dry Contact Logic Level 0 : Open
Logic Level 1: Close to GND
Wet Contact Logic Level 0 : 3 V (Max.)
Logic Level 1 : 10 to 50V

Relay Output

Channel 8 Channels
Output Type 4 Form A, 4 Form C
Output Voltage Range 3.5 ~ 30 VDC
Contact Rating 30 VDC
Frequency Range 100 Hz (16 bit)
Normal Output Current 500mA per Channel
Operate / Release Time 10 ms Max. / 5 ms Max.
Electrical Endurance 100000 ops. @ 5A resistive load

General

Interface RS-485
Power Consumption 2.8W @ 24 VDC
Power Requirement 10 ~ 60 VDC
Watchdog Timer System (1.6 Second Fixed)
Intra-Module Isolation, Field-to-Logic 2500 VDC

Communication

Protocol Modbus RTU
Speed From 1200 ~ 115.2k bps
Distance 1.2 km at 9.6 kbps

Environmental

Operating Temp. -25 ~ 70 ºC
Storage Temp. -30 ~ 75°C
Operating Humidity 10% to 90% (non-condensing)

Dimension

LED Indicators PWR, Comm, Program, Status
Weight 65g (Average)
Dimensions 472 x 121 x 120mm
